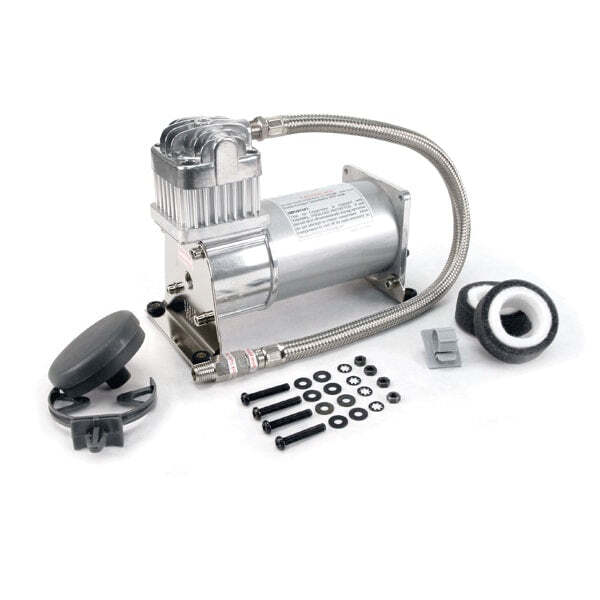

ViAir 280C Air Compressor Kit (12V)

SKU code: V28021

The 280C air compressor has a max run time of 20 minutes and comes equipped with a stainless steel braided leader hose, check valve and remote air filter assembly.

Features

  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Direct Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications

  • PN: 28021
  • CFM: 1.59 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 30% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 2.5 Gallon
  • Max. 12V Amp Draw: 19-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 7.8″L x 3.95″W x 6.35″H
  • Net Weight: 6.95 lbs.

*Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SKU V28021
Brand ViAir
