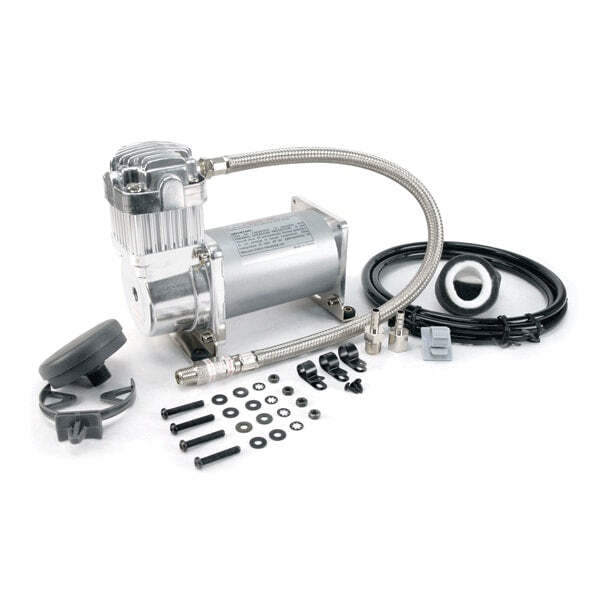

ViAir 325C Air Compressor Kit (24V)

SKU code: V32538

The 325C air compressor is used in a variety of applications from industrial to motorsports. It has a max run time of 20 minutes and comes in 4 different configurations to fit the needs of every customer.

Features

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications

  • PN: 32530, 32533, 32534, 32538
  • CFM: 1.59 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 22-Amps
  • Max. 24V Amp Draw: 13-Amps
  • 1/4″ NPT Intake Port
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 8″L x 4″W x 6.75″H
  • Net Weight: 7.5 lbs.

*Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SKU V32538
Barcode # 9322046880257
Brand ViAir
