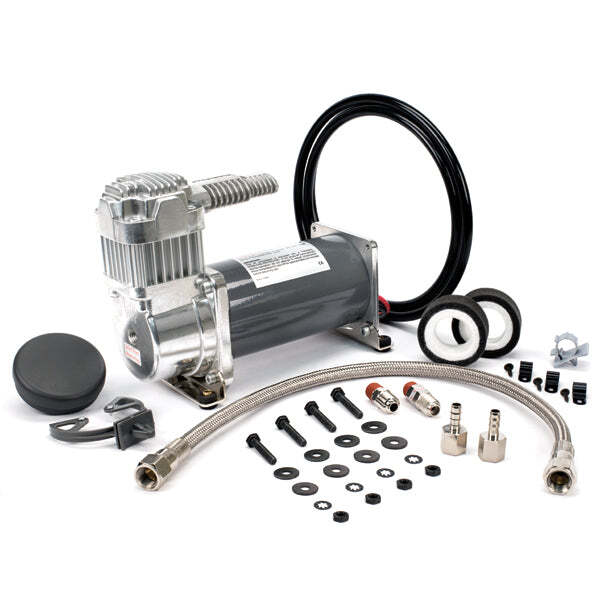

ViAir 330C Air Compressor Kit (24V)

SKU code: V33058

The 330 IG air compressors are medium-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation. They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. Available in 12V or 24V.

Features

  • Thermal Overload Protector
  • Vibration Isolators
  • Mounting Hardware
  • Heavy Duty 1/4″ NPT Check Valve
  • Stainless Steel Braided PTFE-Lined Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications

  • PN: 33050, 33058
  • CFM: 1.06 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 16-Amps
  • Max. 24V Amp Draw: 9-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H
  • Net Weight: 8.25 lbs.
SKU V33058
Brand ViAir
