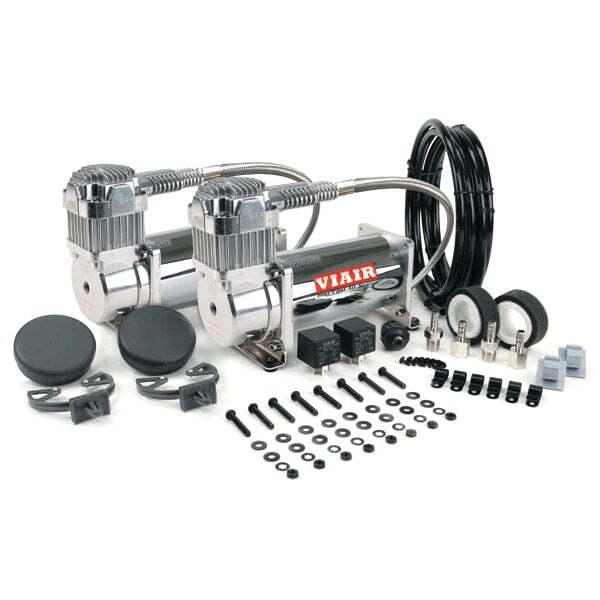

ViAir 380C Dual Air Compressor Kit (12V)

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Features

• (2) 380C Air Compressors
  w/Thermal Overload Protectors
• (2) Air Filter Assemblies
• (2) Remote Mount Brackets
• (2) Sets of Remote Mount Fittings
• (2) Sets of Spare Air Filter Elements
• (2) Leader Hose Clips
• (6) Air Line Clips with Included Hardware
• (8) Sets of Nuts, Bolts, Washers and Lock Washers
• (2) 40-Amp Relays
• (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
• (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
• Air Line (For Remote Mount Filter Installation)

Specifications

• PN: 38002, 38003, 38036
• CFM: 2.54 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
• Net Weight: 17.50 lbs.

*Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
