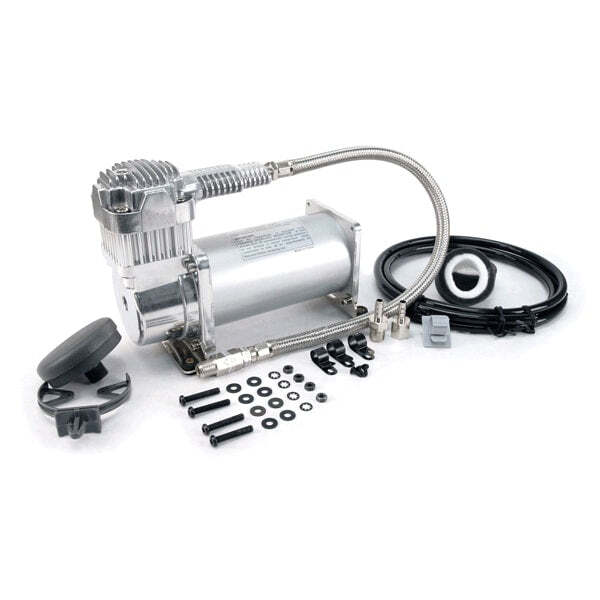

ViAir 400C Air Compressor Kit (12V)

SKU code: V40040

Ideal for industrial environments, VIAIR’s 400C compressor is the fastest-filling in its class. Capable of powering air horns, air suspension, and industrial pneumatic operations, the 400C flows fast and has a compact footprint for a wide range of personal and commercial applications.

Features

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications

  • PN: 40040, 40052
  • CFM: 2.62 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 30-Amps
  • Max. 24V Amp Draw: 15 Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H
  • Net Weight: 8.65 lbs.

*Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SKU V40040
Barcode # 9322046880301
Brand ViAir
