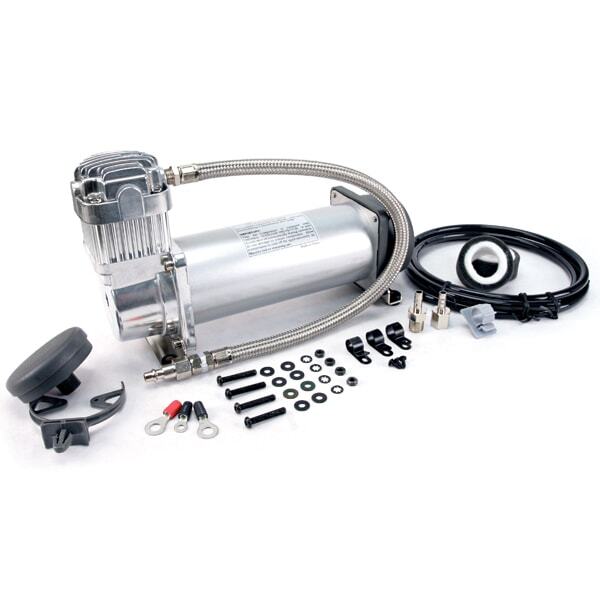

ViAir 450H Air Compressor Kit (12V)

SKU code: V45042

The 450H Hard-Mount comes with a built-in, moisture resistant ON/OFF power switch. It features a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

Features

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • 1/4″ Quick Connect Stud
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications

  • PN: 45042
  • CFM: 1.80 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 23-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 11.63″L x 3.94″W x 6.75″H
  • Net Weight: 11.05 lbs.

*Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SKU V45042
Barcode # 9322046880332
Brand ViAir
