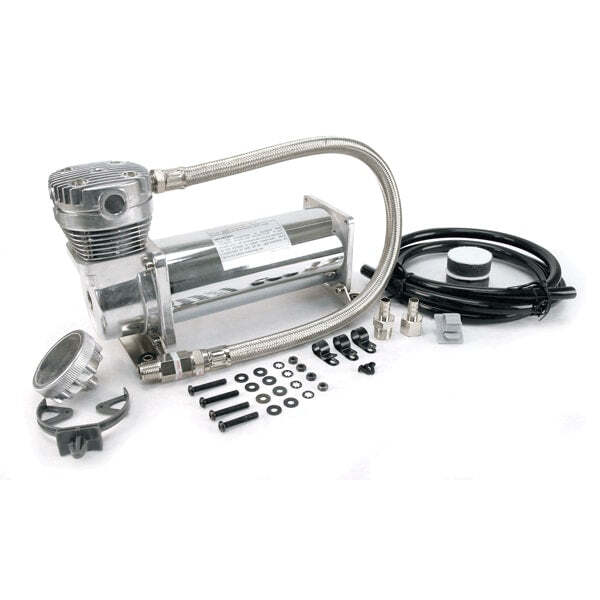

ViAir 460C Air Compressor Kit (12V)

SKU code: V46043

The 460C is a continuous duty cycle air compressor, meaning it can run continuously for 1-hour before needing rest. Features include a standard 3/8” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Features

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications

  • PN: 46043
  • CFM: 1.80 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 24-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 11.5″L x 4.3″W x 6.5″H
  • Net Weight: 11.10 lbs.

*Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SKU V46043
Barcode # 9322046881384
Brand ViAir
