Canopy Load Bar Kit / 1165mm (W) by Front Runner - KRCA007

SKU code: KRCA007

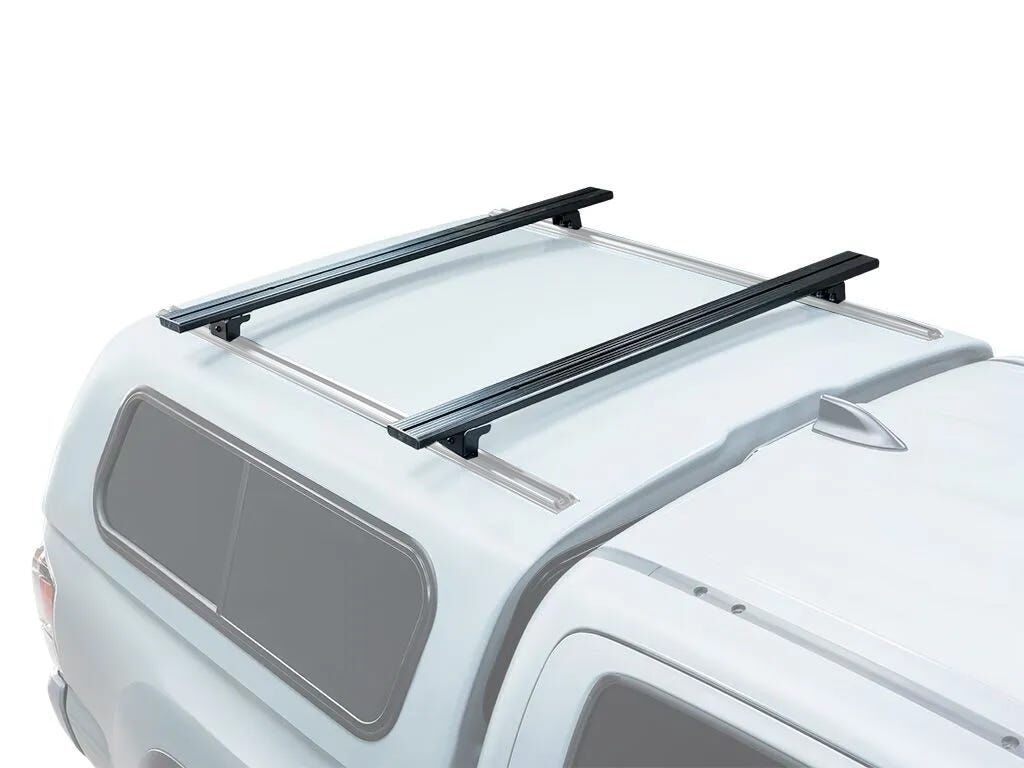

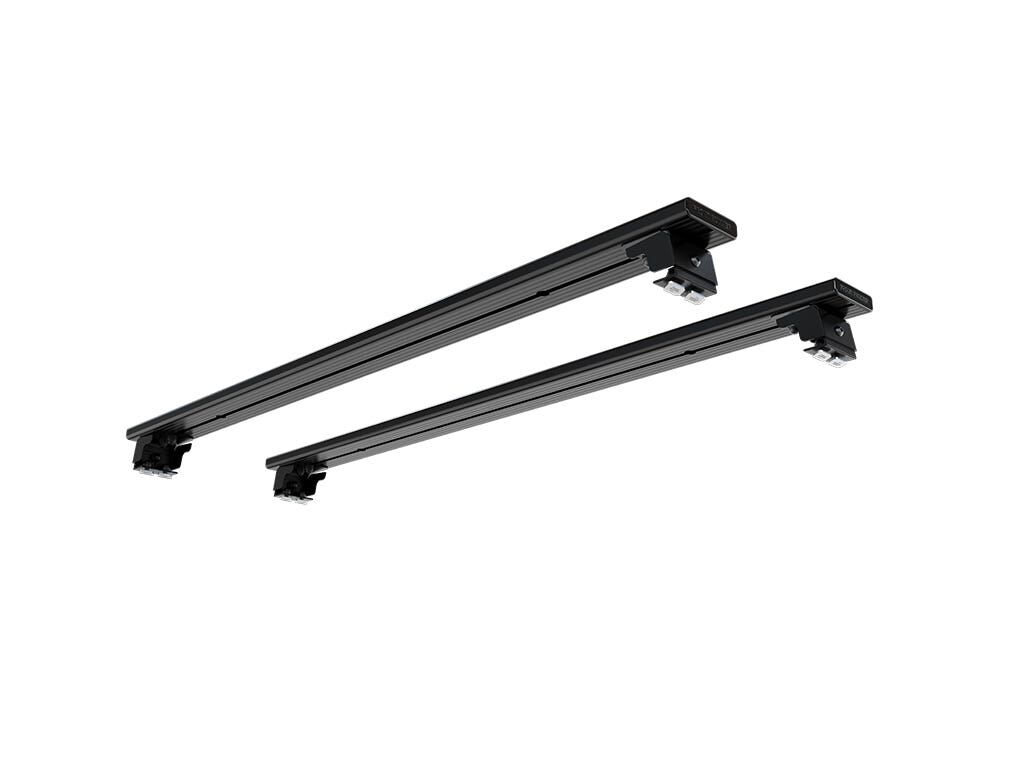

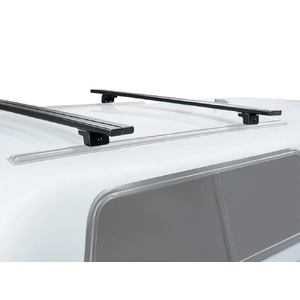

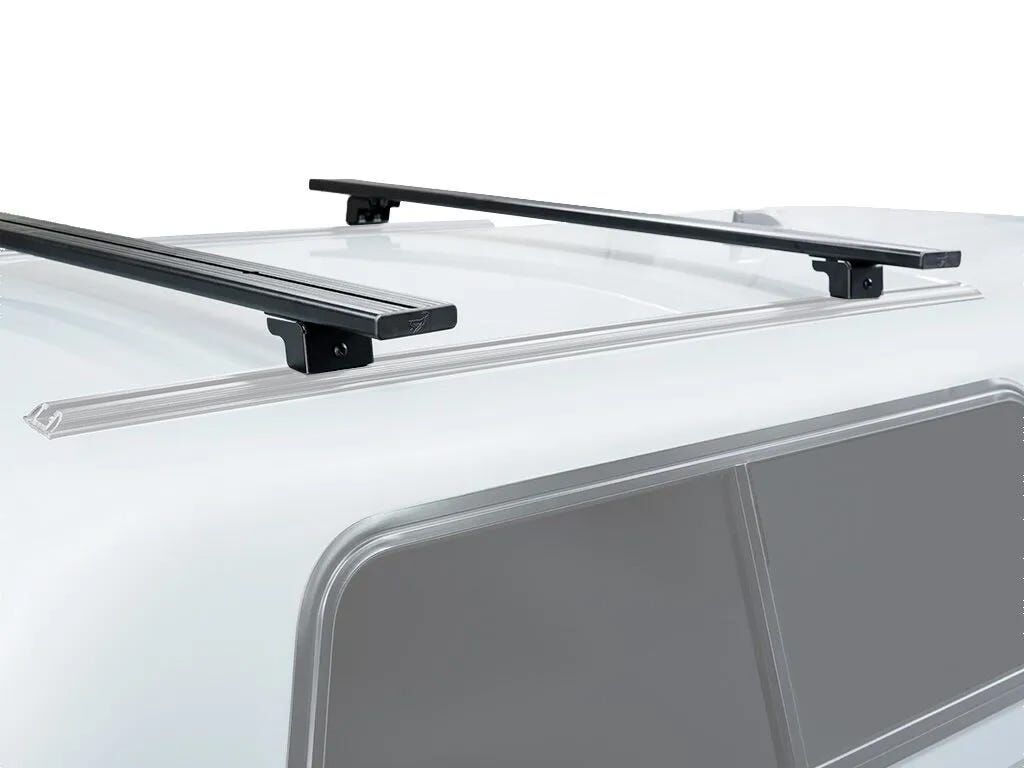

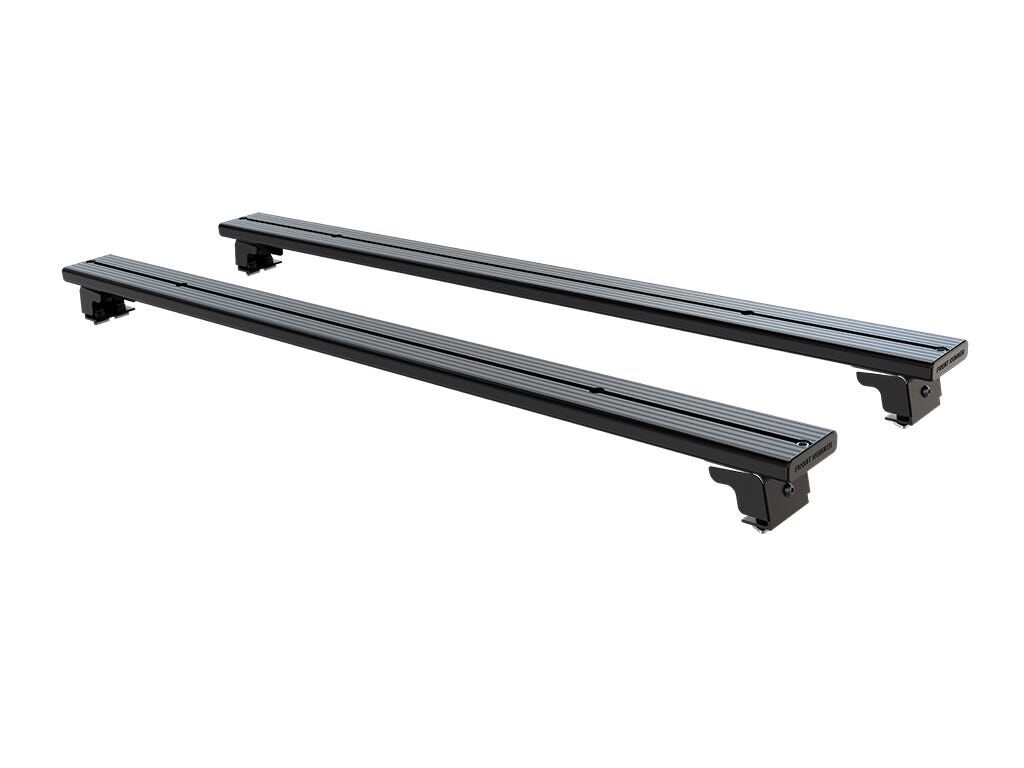

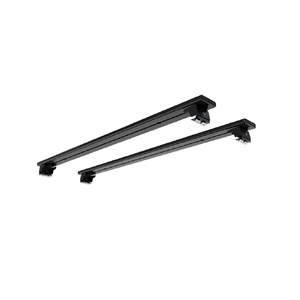

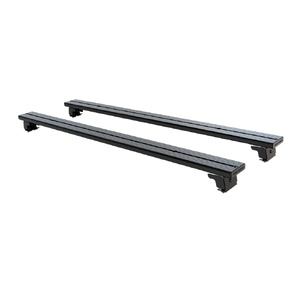

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 40mm Feet, 2 1165mm Load Bars, 2 1150mm Canopy Tracks, and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle. You may not have the need for a full roof rack and find that you can get by using a set of Front Runner Load Bars.

These Load Bars are mounted to the vehicle’s roof via a set of supplied Tracks and Track Mounted Feet.

Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

Uses the same strong, corrosion-free aluminum slats found in Front Runner Slimline II Racks.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather-resistant black powder-coated aluminum.

Includes all hardware, components, and the installation guide needed to fit Load Bars on a vehicle.

Product Information:

  • Product Code: KRCA007
  • Description: Canopy Load Bar Kit / 1165mm (W)
  • Manufacturer: Front Runner

Kit Contents:

  • 2x FASS012 - Foot Set / 40mm-50mm
  • 1x LBSK013 - Load Bar Pair 1165mm(W)
  • 1x TRCA003 - Canopy Tracks / 1150mm(L)

Materials Used:

  • Black epoxy powder-coated T6 aluminium
  • High strength steel

Approximate Installed Weight: 7kg (14lbs)

Additional Information:

  • The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
  • To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit:
    • If using Foot or Grab-on Foot, add 22mm (7/8'') for the height of the Load Bar.
    • If using Legs, add 22mm (7/8'') for the height of the Load Bar to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
    • If using Foot Rails, add 22mm (7/8'') for the height of the Load Bar to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicle's roof.

Shipping Dimensions:

  • Width: 245mm (10'')
  • Length: 1290mm (51'')
  • Height: 115mm (5'')

Shipping Weight: 7.6kg (16.8lbs)

SKU KRCA007
Barcode # 6009542231976
Brand Front Runner
