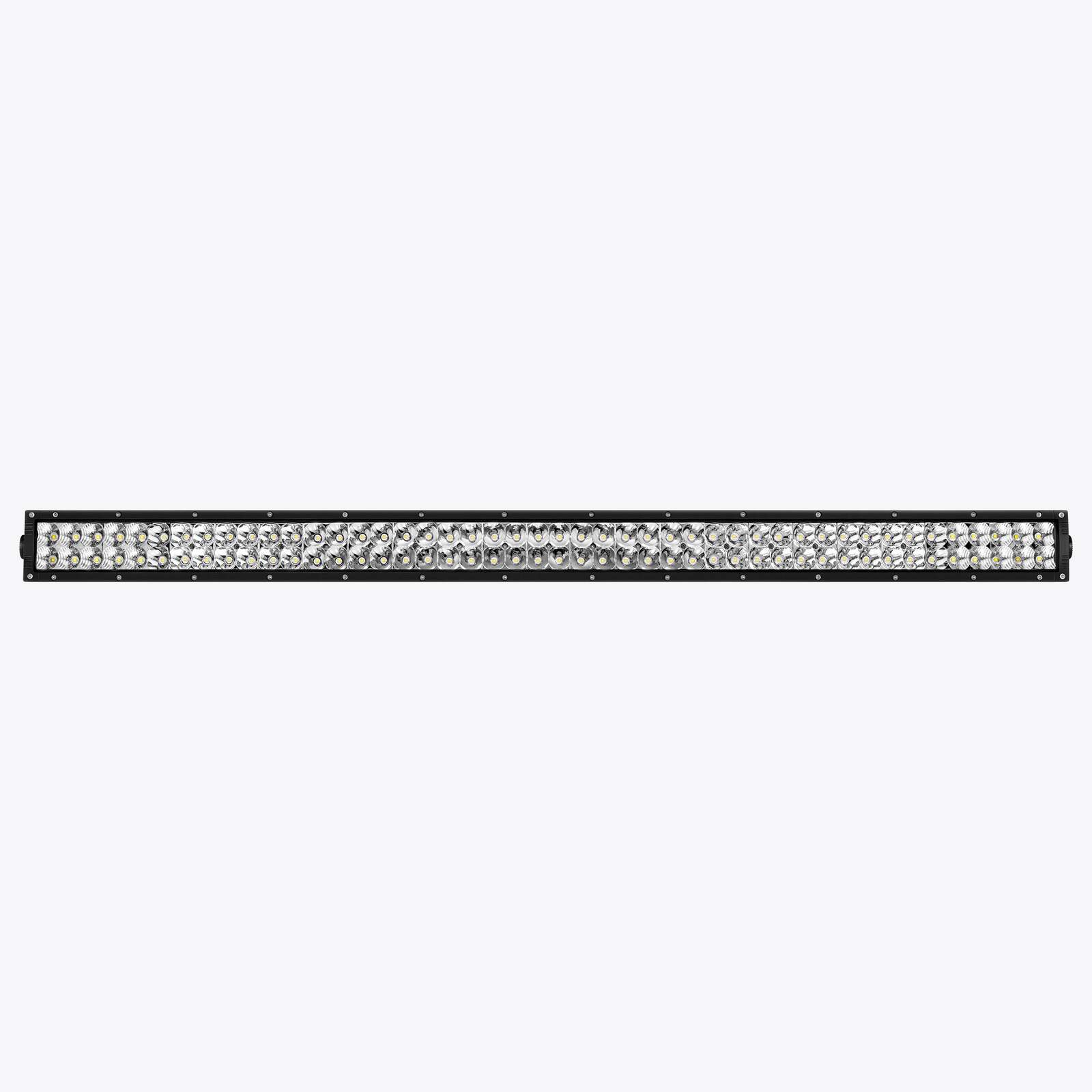

Hardkorr 42" XD-Gen4 Dual Row LED Light Bar

SKU code: XDD900-G4

The LED light bars that took Australia by storm are now brighter and more efficient than ever.

Hardkorr dual row LED light bars have always been the favourite of professional drivers and people who drive on roads inhabited by kangaroos and other wildlife. HardKorr's dual-chip hybrid technology, first introduced in their GEN3 series bars in 2016, produces a light beam that is unparalleled in width and evenness. The output of these light bars fills your entire field of view with light, ensuring that you can spot hazards that are not just located in front of the vehicle, but off to the sides of the road as well.

The XD-GEN4 series is the latest update to this range and represents another leap forward in LED technology. HardKorr have upgraded their GEN3 series to utilise the very latest OSRAM and CREE LED chips, and their engineers have tweaked the circuitry and reflector geometry to suit.

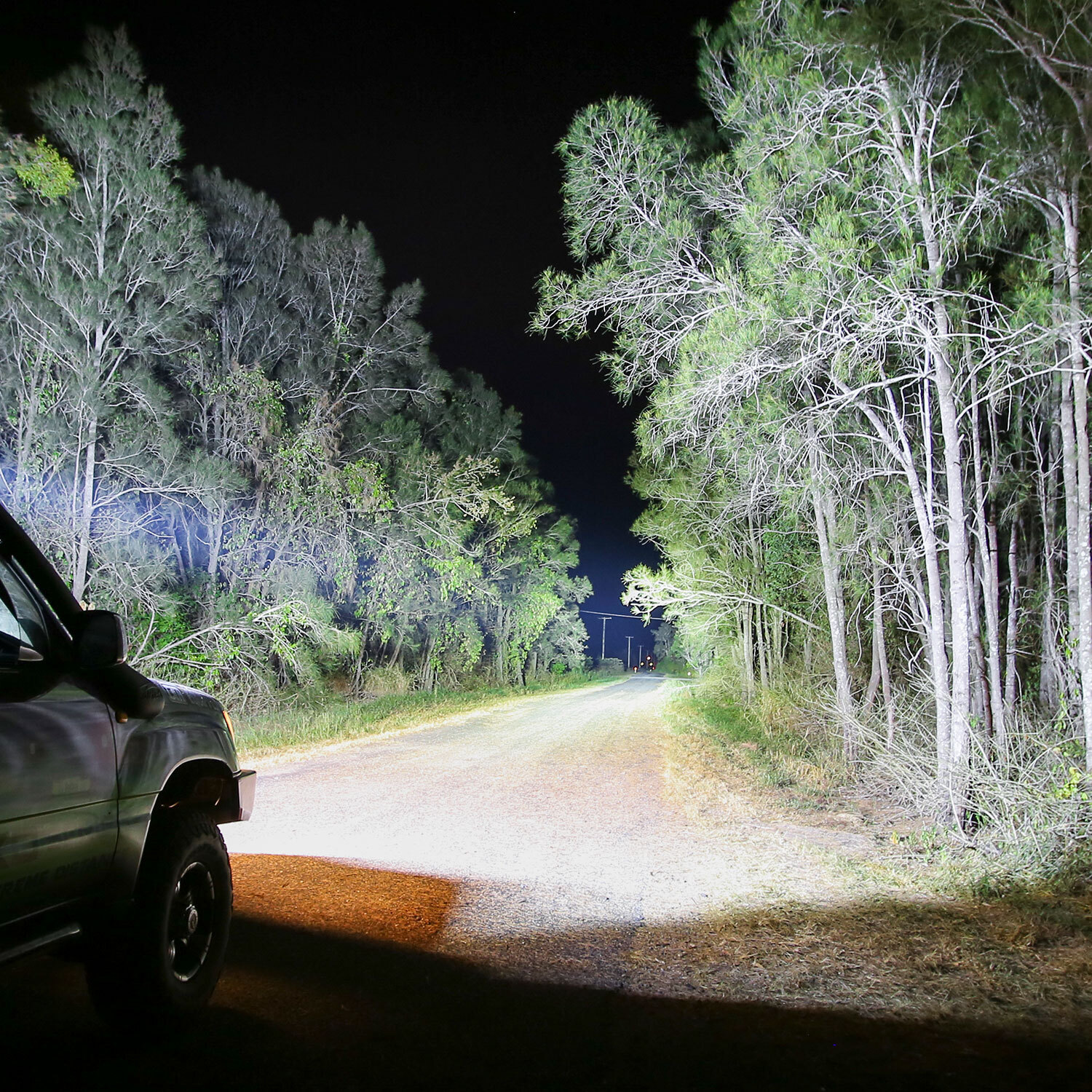

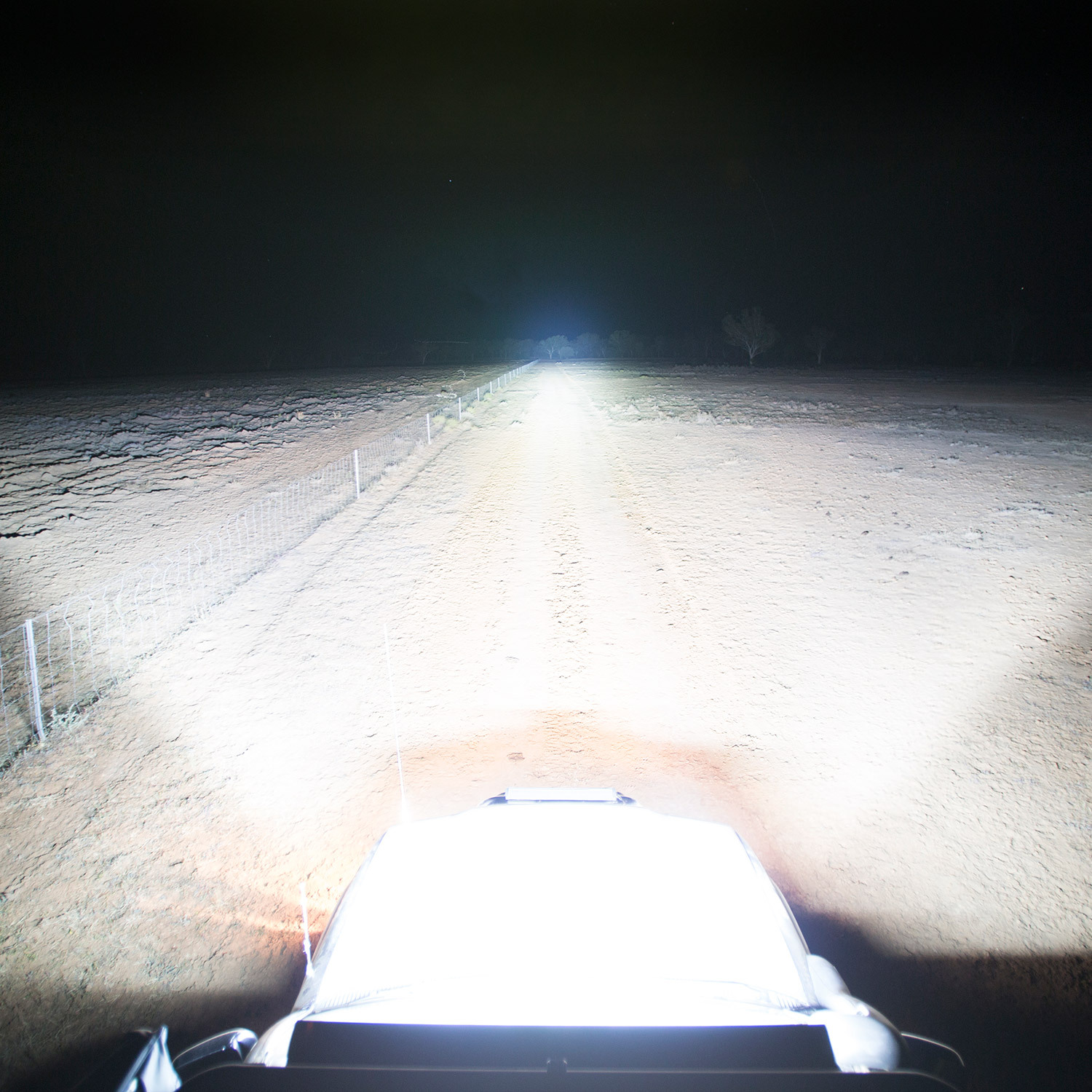

The result is an even wider and longer beam, with no black spots or hot spots.

They’re also CISPR15 compliant, meaning they have been independently tested to ensure they do not interfere with radio frequencies.

The 42″ XDD900-G4 is the biggest light in the range, and is truly a monster. It produces a staggering 1 lux @ 900m and a flood beam that has to be experienced to be believed.

This bar includes a heavy-duty wiring harness, designed to handle the high current draw.

Please note that this wiring harness is not ADR compliant and is designed for off-road use only, as it does not piggyback off the high-beam circuit.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 5 Years Australian warranty.

Specifications

  • Materials: 6063 aluminium housing, Lexan® polycarbonate lens
  • LED Manufacturer: OSRAM (spot LEDs) / CREE (flood LEDs)
  • LED Number: 68 x 3W OSRAM / 24 x 5W CREE
  • Beam Type: GEN4 hybrid flood & spot
  • Beam Throw: 1 lux @ 900m
  • Output: 32,400 lumens
  • Ingress Protection: IP68
  • Dimensions: 1,060mm (w) x 75mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs)
  • Weight: 6kg
  • Operating Voltage: 10 – 30v DC
  • Current: 16.4A @ 13.5V / 8.2A @ 24V
  • Colour Temperature: 6000K
  • LED Lifespan: 50,000+ hours
  • Certifications: CE, RoHS, C-Tick, CISPR15

Pack Contents

  • 1 x 324w dual-row LED light bar
  • 1 x Heavy-duty wiring harness (off-road use only)

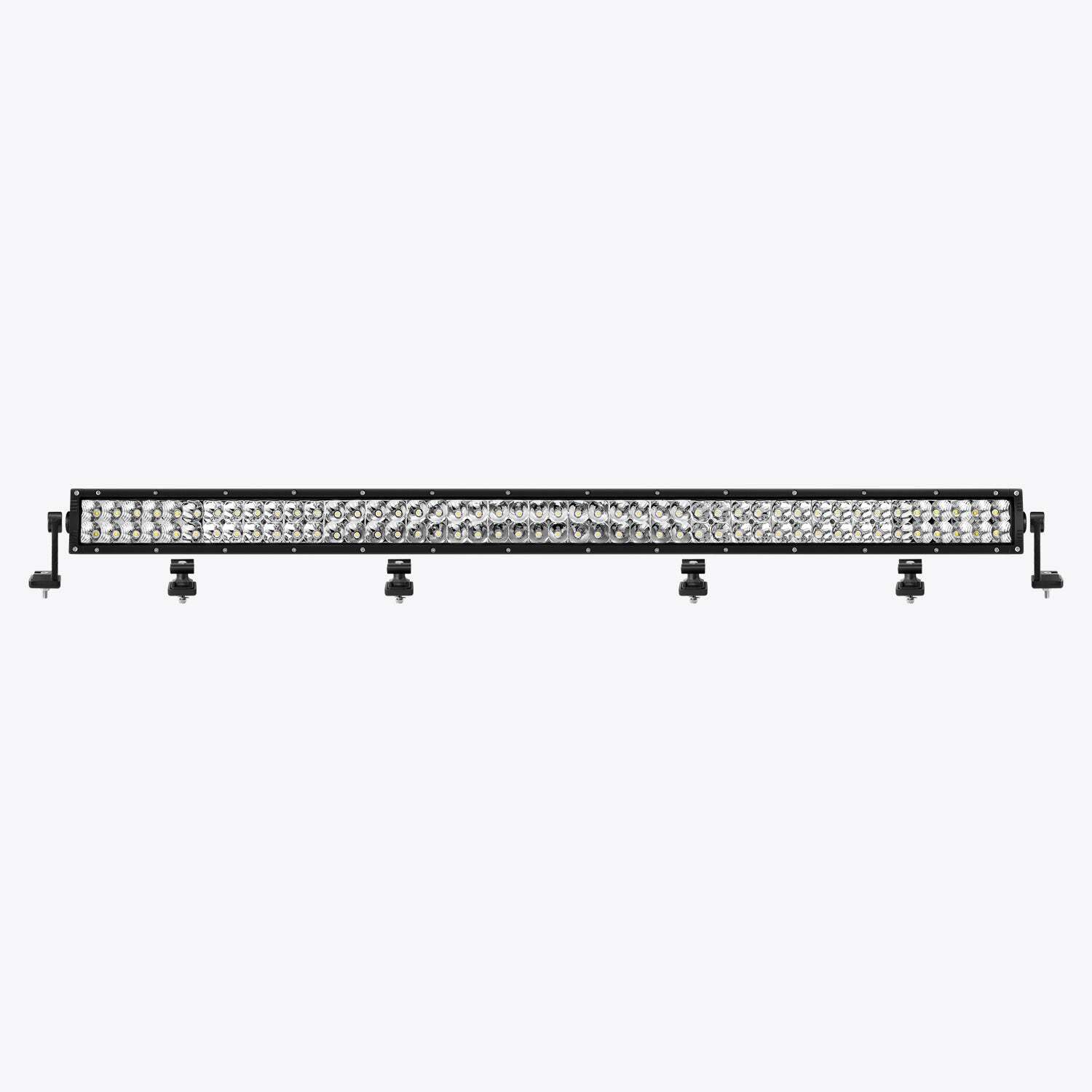

  • 1 x Set of end-mount legs
  • 1 x Set of sliding legs
  • 1 x Deutsch plug tail
SKU XDD900-G4
Barcode # 9350466001877
Brand HardKorr
