Hardkorr 170W Heavy Duty Fixed Solar Panel

SKU code: HKPSOLF170

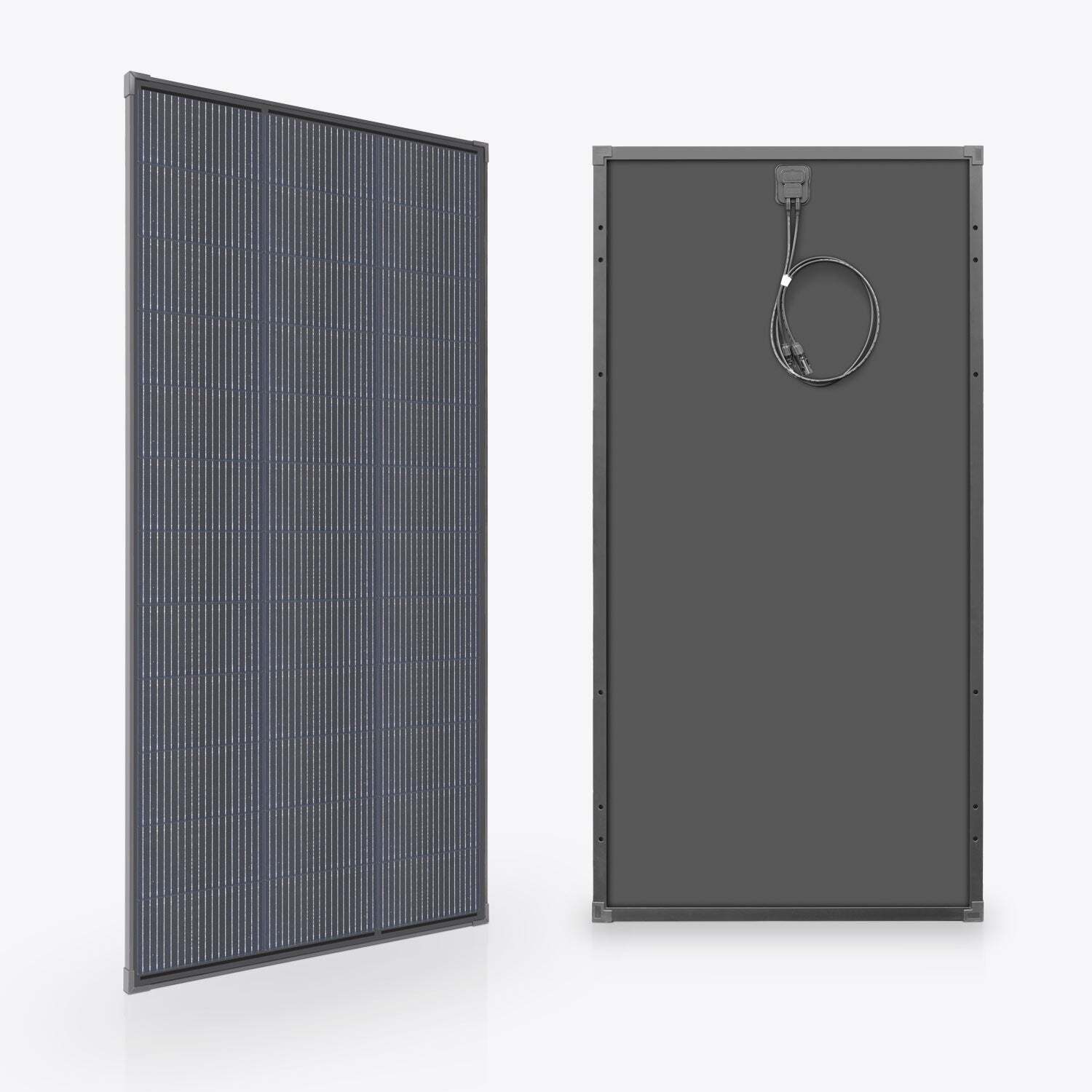

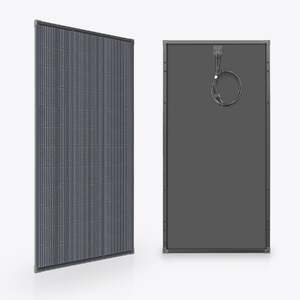

HardKorr's high-quality 170w fixed solar panels will fit neatly on the roof of a 4wd, caravan, camper trailer or boat. Being only 17mm high, they are aerodynamic and weigh about 30% less than regular 30mm high fixed panels.

The A-grade monocrystalline solar cells are protected by 3.2mm tempered low-iron glass, which is optically clear and provides high impact resistance against hail, stones and accidental knocks. The all-black frame, cells and substrate look incredible on any vehicle.

The panels come with a 0.8m cable terminated with industry-standard MC4 connectors, which are waterproof and will not come apart once connected. HardKorr have also developed matching mounting brackets to make it easy to fix your panels in place.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 10 Year Australian warranty.

Features

  • 3.2mm tempered low-iron glass: optically clear with high impact resistance

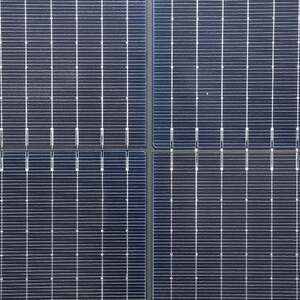

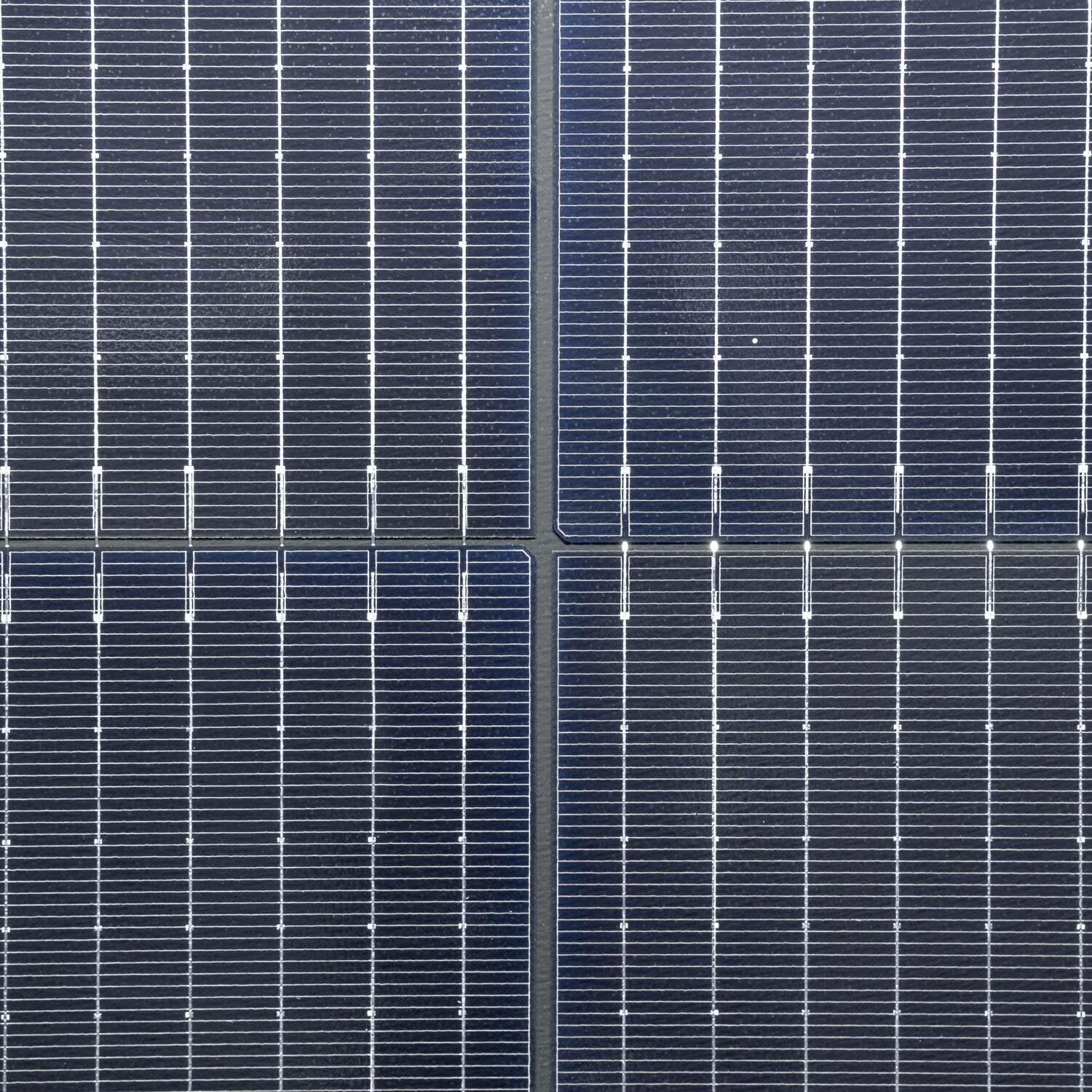

  • High-efficiency A-grade monocrystalline solar cells: for better performance & longer lifespan
  • Black frame, cells and substrate: looks great on any vehicle

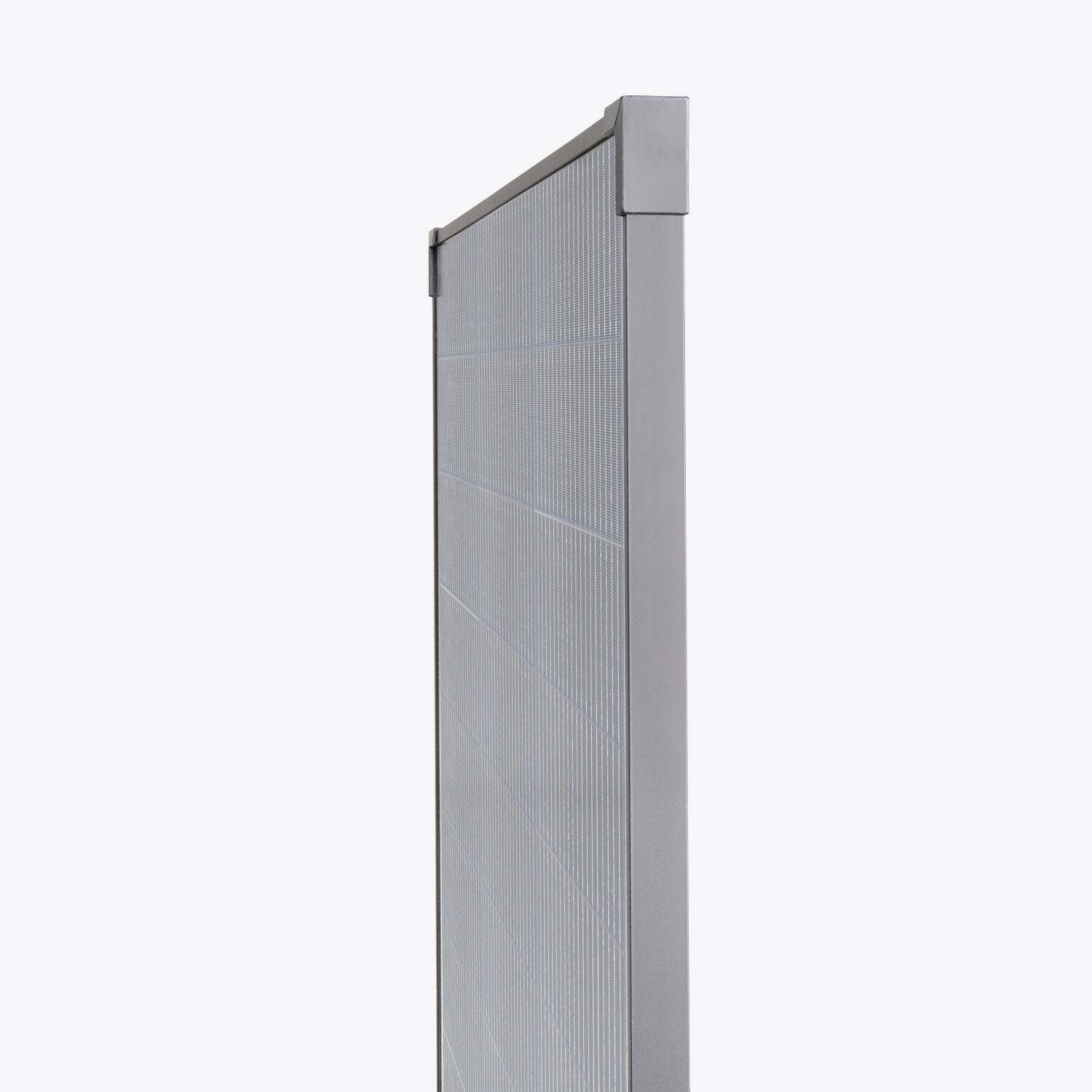

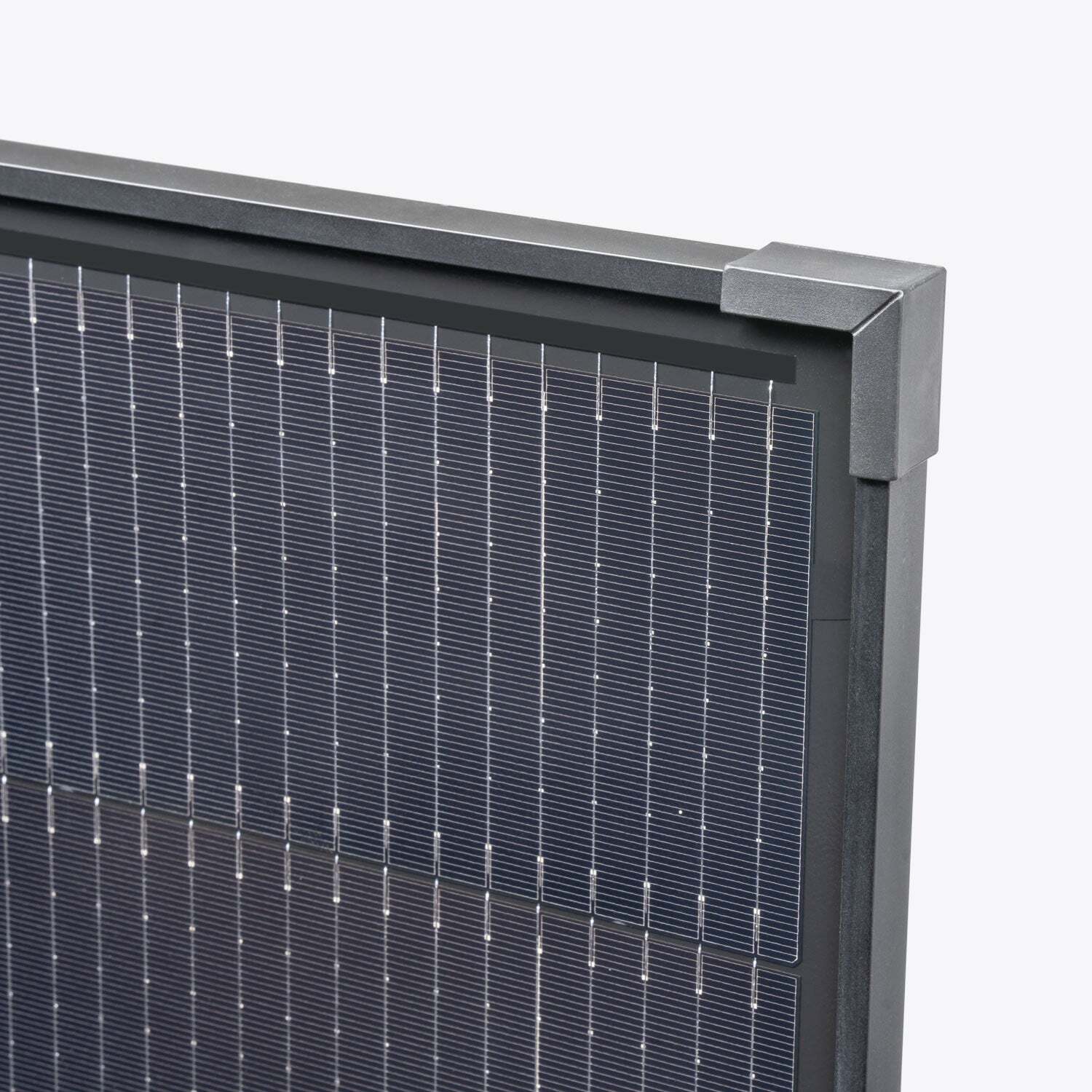

  • 17mm anodized aluminium frame: 30% lighter than regular solar panels

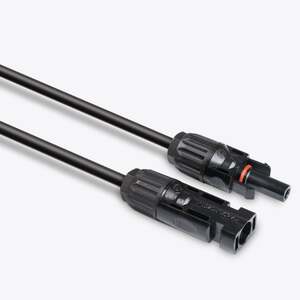

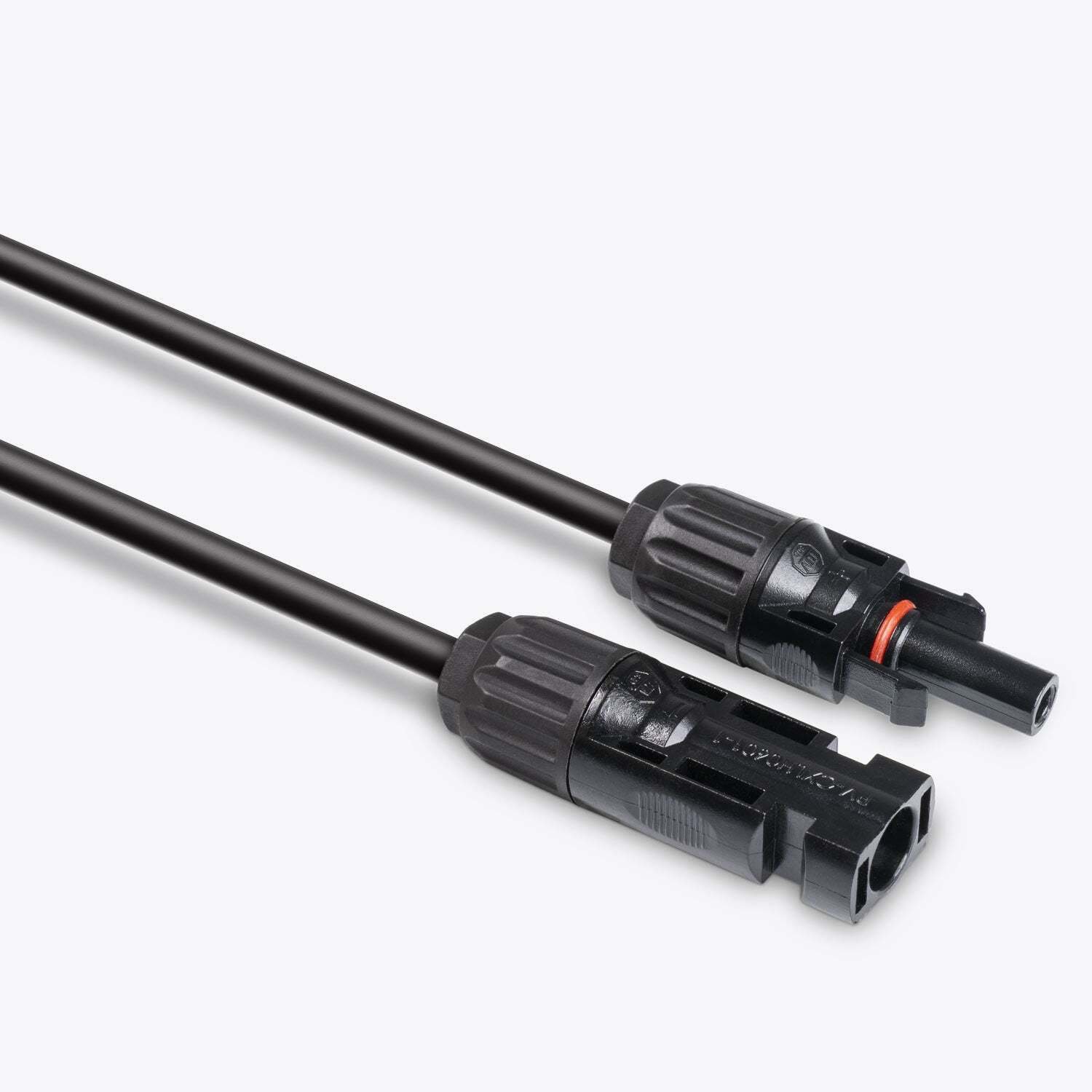

  • High-quality MC4 plugs w/0.8m cable: ensures a secure, waterproof connection

Specifications

  • Materials:
    • Anodized aluminium frame
    • A-grade monocrystalline solar cells
    • 3.2mm tempered low-iron glass covering
  • Wattage: 170W
  • Working Max. Voltage: 17.80V
  • Working Max. Current: 9.55A
  • Open Circuit: 25.00V
  • Short Circuit: 10.58A
  • Solar Cell Efficiency: 20.31%
  • Dimensions: 1320mm (l) x 664mm (w) x 17mm (h)
  • Weight: 9.98kg
  • Connector Type: MC4
  • Max. System Voltage: 1000V
  • Operating Temperature: -40°C to 85°C
  • Certifications: CE, RoHS, C-Tick

Pack Contents

  • 1x 170W Solar Panel
SKU HKPSOLF170
Barcode # 9350466002256
Brand HardKorr
