Hardkorr Battery Monitor

SKU code: HKPBATTMON

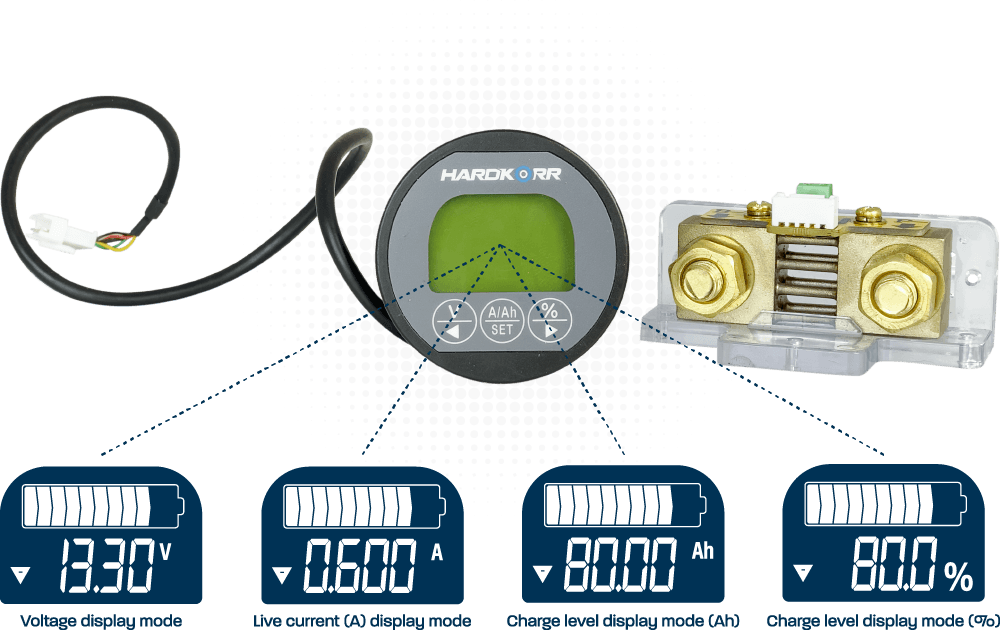

This remote battery capacity monitor, also known as a coulometer, uses a 500A shunt (350A continuous) to return highly accurate readings of battery voltage, live current draw (A) and charge level (Ah and %).

It includes a memory function, and is suitable for all common battery types including AGM, wet, gel, calcium and lithium.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 2 Year Australian warranty.

Electrical Specifications

  • Working Voltage: 8-100V DC
  • Max. Current: 500A peak / 350A continuous
  • Working Current Draw: 10-12mA
  • Backlight Current Draw: 100mA
  • Standby Current Draw: 0.5-0.6mA
  • Accuracy: ±1%

Physical Specifications

  • Weight: 410g
  • Dimensions: 59mm ? x 20mm
  • Cut-out Size: 54.5mm

Operating Conditions

  • Operating Temperature: -10°C to 65°C

Certifications

  • CE, RoHS, C-Tick

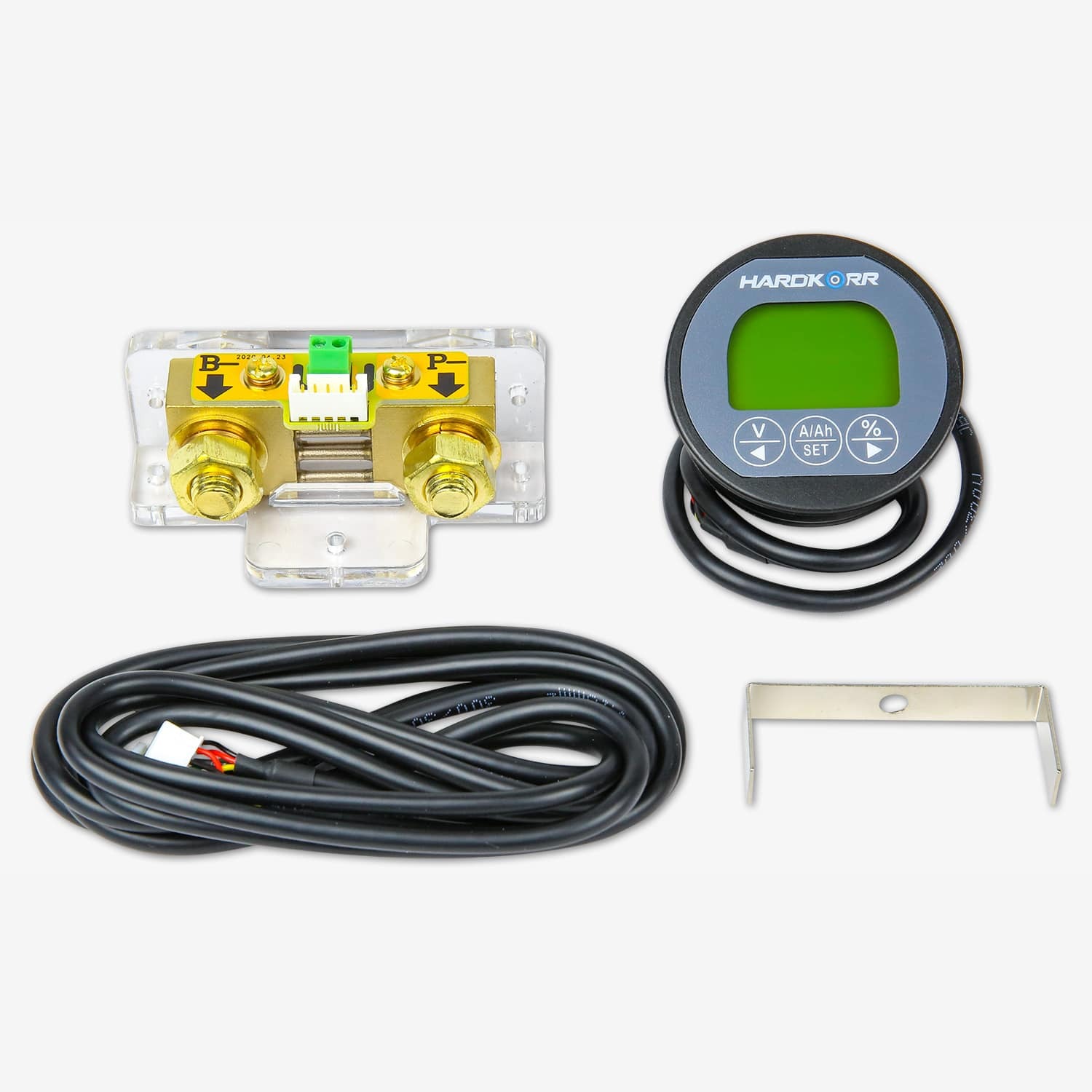

Pack Contents

  • 1x LCD display module
  • 1x 100V/500A shunt
  • 1x 2m Shielded cable
  • 1x Mounting bracket
SKU HKPBATTMON
Barcode # 9350466001822
Brand HardKorr
