Hardkorr Bluetooth Battery Monitor

SKU code: HKPBATTMONBT

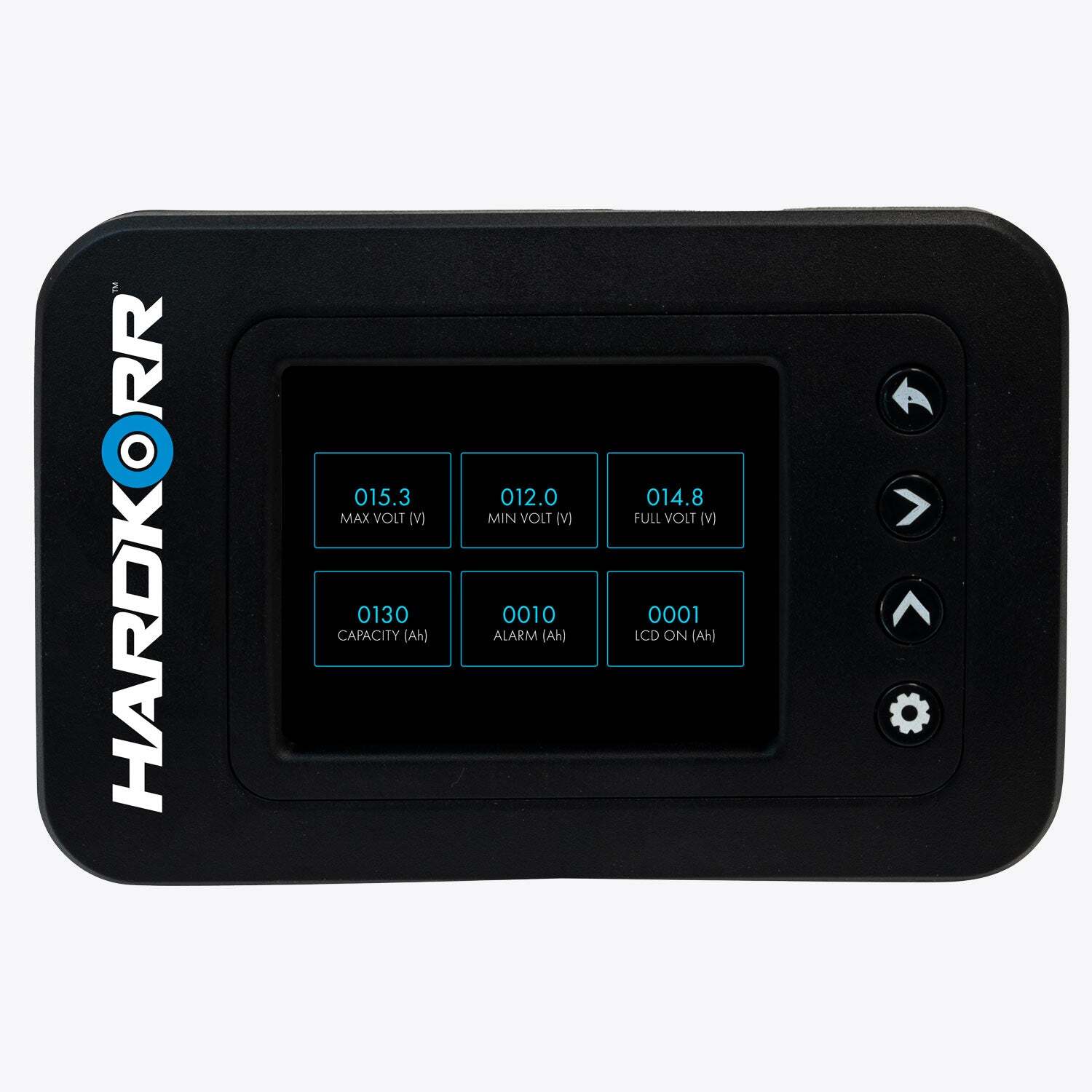

This battery monitor, also known as a coulometer, displays essential battery information through its full-colour LCD screen or by connecting your smartphone via Bluetooth.

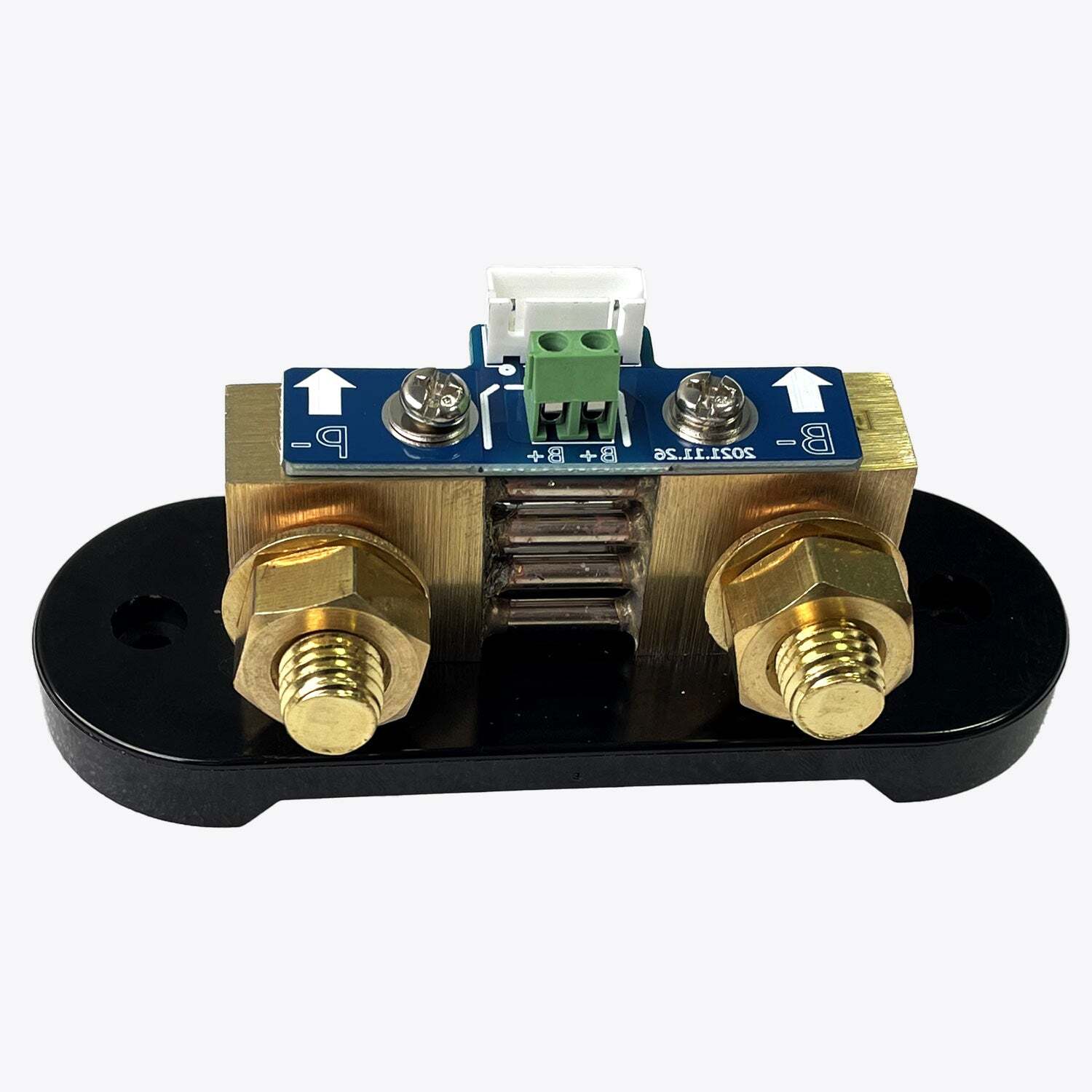

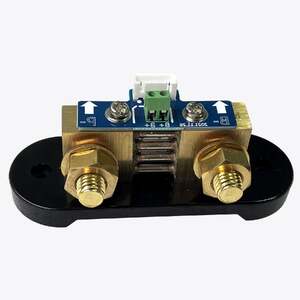

By using a 500A shunt, highly accurate data is collected such as charge level (Ah and %), live current draw (A), live voltage (V) and live watts (W). The monitor also includes an integrated alarm function to alert you when your battery is discharged to a set level, and short circuit and reverse polarity protection technology.

It is suitable for all common battery types including Lithium, AGM, Wet, Gel and Calcium.

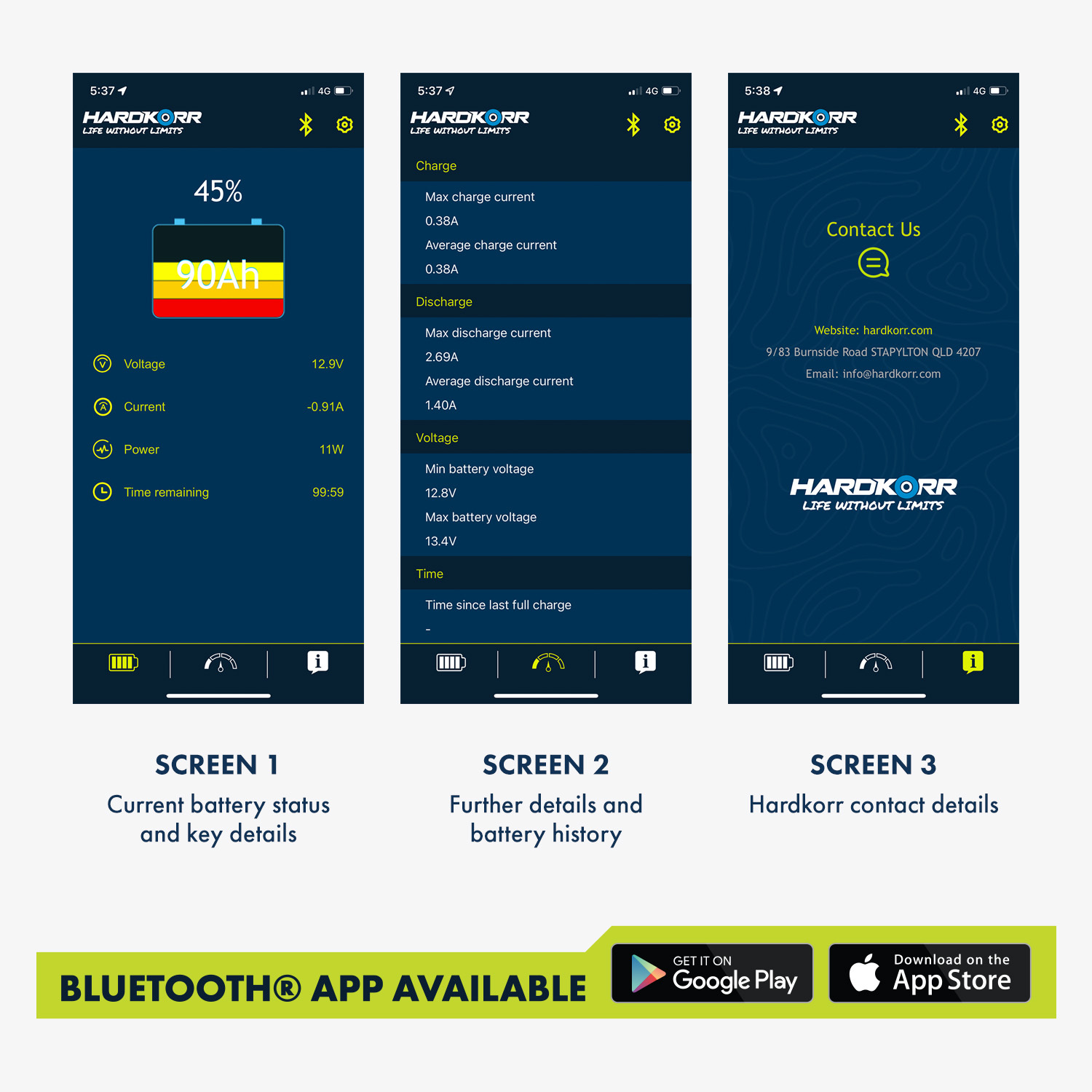

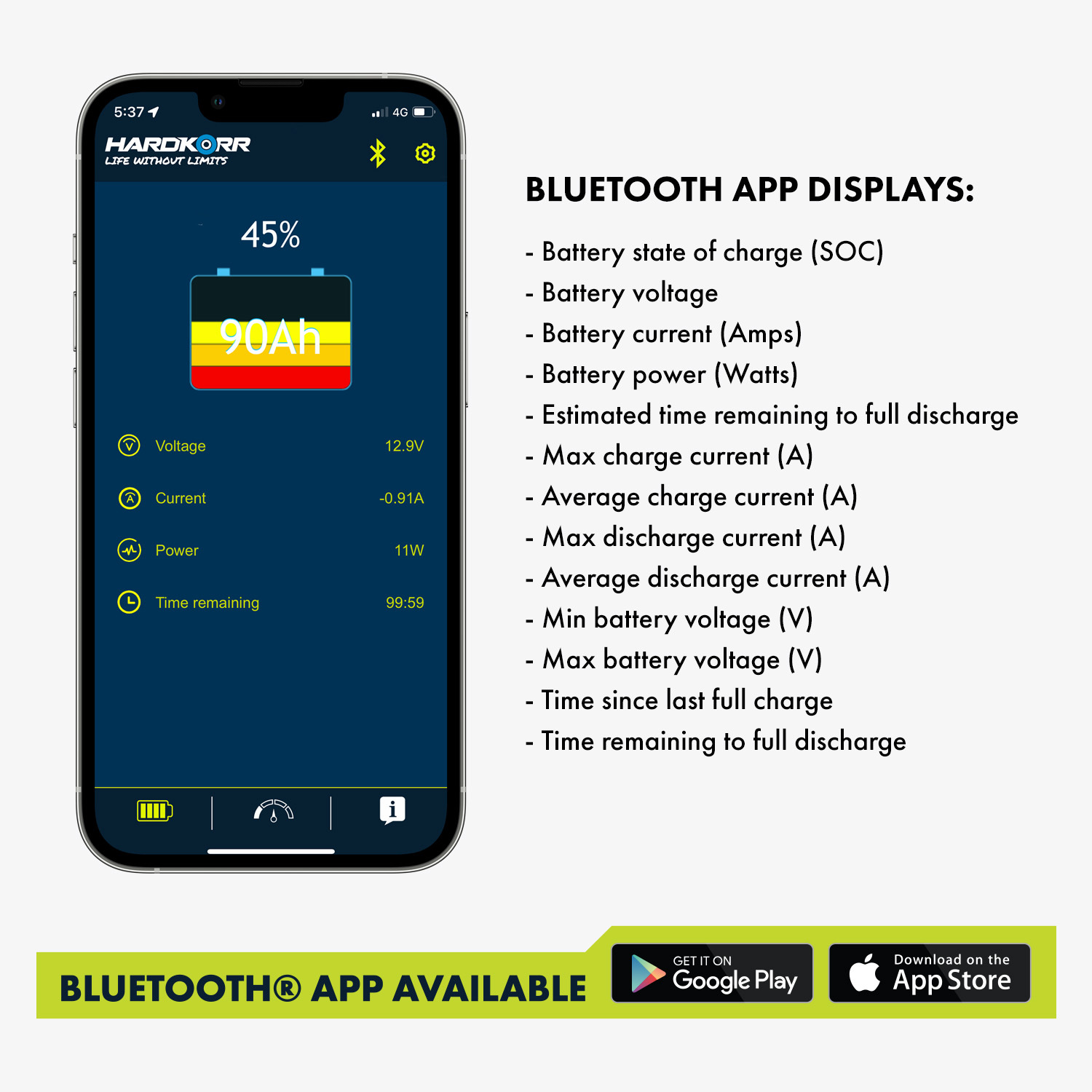

Bluetooth Monitoring App

Using our free Bluetooth app, you can easily access all of the information from the battery monitor screen via your smartphone. You can also change settings from the app and wirelessly synchronise them with the monitor.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 2 Year Australian warranty.

Electrical Specifications

  • Working Voltage: 10-120V DC
  • Battery Capacity Range: 10-1000Ah
  • Max. Current: 500A peak / 350A continuous
  • Working Power Draw: <1W
  • Accuracy: ±1%

Physical Specifications

  • Weight: 110g
  • Dimensions (LCD screen): 125mm x 82mm x 21mm
  • Cut-out Size: 106mm x 76mm

Operating Conditions

  • Operating Temperature: -20°C to 50°C

Certifications

  • EN62368-1:2014+A11:2017
  • EN50663:2017
  • RCM

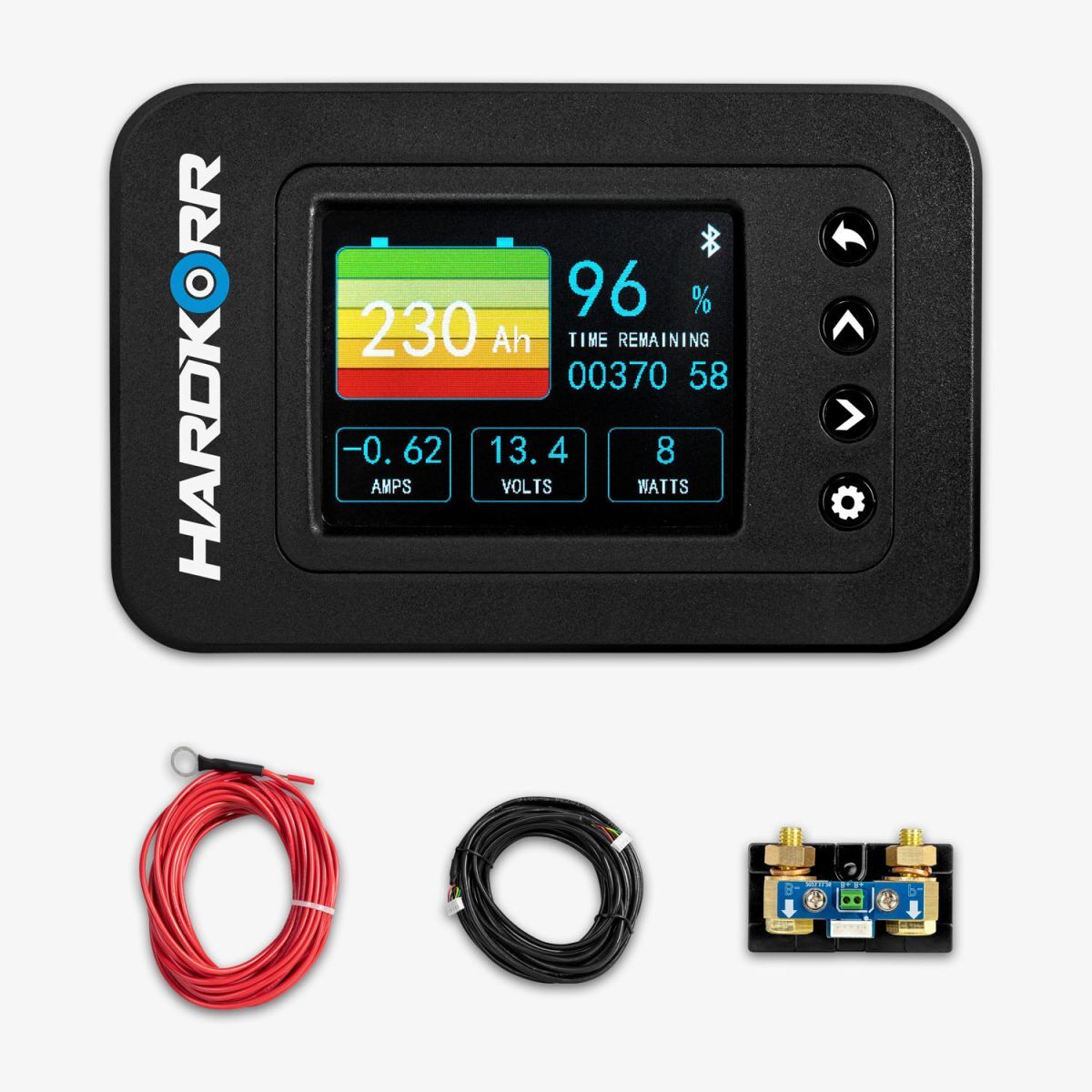

Pack Contents

  • 1x LCD display module
  • 1x 500A shunt
  • 1x 6m shielded cable
  • 1x 6m B+ wire
  • 1x Mounting screws and pad
  • 1x Mounting indicator card
SKU HKPBATTMONBT
Barcode # 9350466003116
Brand HardKorr
