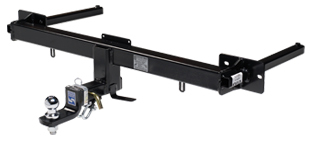

Hayman Reese 1100kg Towbar Kit for SUZUKI Jimny 99-08 3D SUV (01692RLKIT)

SKU code: 01692RLKIT

This Hayman Reese Towbar is designed to suit the SUZUKI Jimny 3D SUV from 01/09/1999 to 01/12/2008.

This Towbar is rated to a capacity of 1100kgs with a ball weight capacity of 75kgs.

Hayman Reese Medium Duty Towbars

Hayman Reese medium duty (class 3) towbars are a step-up in performance and features from their standard class 2 towbars.

Medium duty towbars are typically rated up to 1600 kg and feature a 40 mm x 40 mm square hitch receiver with a removable Trailer Ball Mount.  When you are not towing, simply remove the retaining clip and hitch pin and the Trailer Ball Mount slides straight out.

Hayman Reese medium duty towbars are engineered to work with Hayman Reese mini Weight Distribution kits and intermediate Weight Distribution kits offering improved safety, handling, control and comfort when towing heavy loads.

All Hayman Reese towbars come with the following extras included as standard:

 +  Lifetime warranty
 +  Tow ball and rated D shackles
 +  MetalShield’??ƒ?§, Hayman Reese's unique two-stage surface protection
 +  Vehicle specific plug-and-play trailer wiring - SmartClick’??ƒ?§
 +  Specifically designed for each vehicle and tested under static and dynamic conditions
 +  Fully compliant with Australian Design Rules and exceeding AS 4177 specifications

A1 Roof Racks are proud to offer Hayman Reese and also offer a complete range of towing accessories including; adjustable trailer ball mounts, drop-shanks, trailer ball mount storage bags, lockable hitch pins, and even bike racks that bolt straight on.

Vehicle Fitment Information

Vehicle Make: SUZUKI

Vehicle Model: Jimny

Vehicle Date Range: 01/09/1999 - 01/12/2008

Vehicle Variant: 3D SUV SUZUKI JIMNY

Vehicle Specific Notes: Please Note - Bar is designed with the hitchbox at an angle to cross tube. This will look incorrect until fitted on vehicle.

Capacity Information

Towing Capacity: 1100kgs.

Ball Weight Capacity: 75kgs.

Installation Information

Requires a bumper cut? NO

Electronic Control Unit (if needed): No

Wiring Tips:

Kit Inclusions

This listing includes the following components

Towbar Part Number: 01692RL

Wiring Harness: Yes

Electronic Control Unit (ECU): No

Towball: Yes

SKU 01692RLKIT
Brand Hayman Reese
