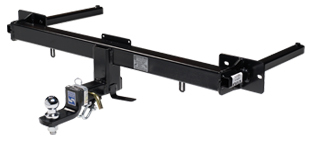

Hayman Reese 1400kg Towbar Kit for MAZDA CX-5 12-17 5D SUV (02922RLWKIT)

SKU code: 02922RLWKIT

This Hayman Reese Towbar is designed to suit the MAZDA CX-5 5D SUV from 01/02/2012 to 15/02/2017.

This Towbar is rated to a capacity of 1400kgs with a ball weight capacity of 140kgs.

Hayman Reese Medium Duty Towbars

Hayman Reese medium duty (class 3) towbars are a step-up in performance and features from their standard class 2 towbars.

Medium duty towbars are typically rated up to 1600 kg and feature a 40 mm x 40 mm square hitch receiver with a removable Trailer Ball Mount.  When you are not towing, simply remove the retaining clip and hitch pin and the Trailer Ball Mount slides straight out.

Hayman Reese medium duty towbars are engineered to work with Hayman Reese mini Weight Distribution kits and intermediate Weight Distribution kits offering improved safety, handling, control and comfort when towing heavy loads.

All Hayman Reese towbars come with the following extras included as standard:

 +  Lifetime warranty
 +  Tow ball and rated D shackles
 +  MetalShield’??ƒ?§, Hayman Reese's unique two-stage surface protection
 +  Vehicle specific plug-and-play trailer wiring - SmartClick’??ƒ?§
 +  Specifically designed for each vehicle and tested under static and dynamic conditions
 +  Fully compliant with Australian Design Rules and exceeding AS 4177 specifications

A1 Roof Racks are proud to offer Hayman Reese and also offer a complete range of towing accessories including; adjustable trailer ball mounts, drop-shanks, trailer ball mount storage bags, lockable hitch pins, and even bike racks that bolt straight on.

Vehicle Fitment Information

Vehicle Make: MAZDA

Vehicle Model: CX-5

Vehicle Date Range: 01/02/2012 - 15/02/2017

Vehicle Variant: 5D SUV MAZDA CX-5

Vehicle Specific Notes:

Capacity Information

Towing Capacity: 1400kgs.

Ball Weight Capacity: 140kgs.

Installation Information

Requires a bumper cut? YES

Electronic Control Unit (if needed): 04826

Wiring Tips: wire to behind taillight assembly

Kit Inclusions

This listing includes the following components

Towbar Part Number: 02922RLW

Wiring Harness: Yes

Electronic Control Unit (ECU): 04826

Towball: Yes

SKU 02922RLWKIT
Brand Hayman Reese
