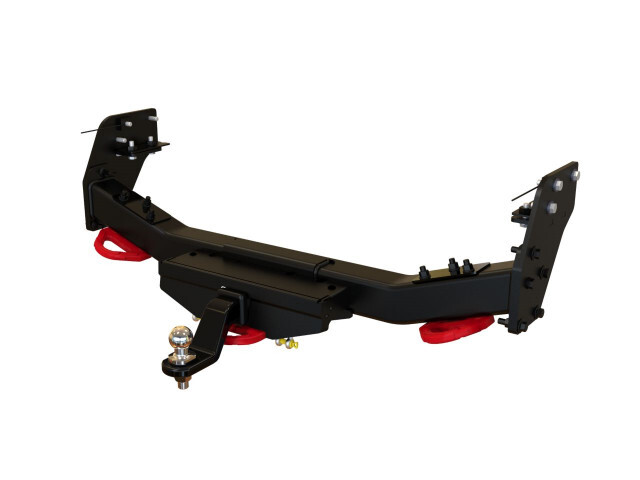

Hayman Reese 3500kg X-Bar Towbar Kit for MAZDA BT-50 2020-current Ute (03364XWKIT)

SKU code: 03364XWKIT-1

This Hayman Reese Towbar is designed to suit the UTE body variants of TF D-Max and BT50 where the rear step is retained.

This Towbar is rated to a capacity of 3500kgs with a ball weight capacity of 350kgs.

X-Bar by Hayman Reese

X-Bar. Built for tough off-road action.

Maximum Clearance

The Hayman Reese X-Bar sits higher on the vehicle, up to 100 mm vertically, offering improved departure angles of 5 degrees compared with some OEM and other aftermarket towbars.

Recovery Rated

The X-Bar provides a purpose designed and rated rear vehicle recovery system encompassed in a fully Australian Design Rules (ADR) compliant towbar and is rated to 8, 000 kg.

Superior Strength

The Hayman Reese X-Bar features increased thickness side arms for better rigidity, custom forged 700-grade steel recovery points,  and high-tensile Australian Standard Grade 10.9 fasteners.

Additional Features

  • Twin protected trailer socket mount points (7 or 12 pin flat & Anderson plug)
  • Full ADR compliance, allowing for a 50mm height increase from suspension or tyre upgrades
  • SmartPin’??ƒ?§ hitch pin with integrated anti-rattle feature
  • Maximum vehicle towing capacity across all fitments
  • Comes complete with:
    • Hayman Reese vehicle specific SmartClick’??ƒ?§ wiring harness
    • Flat sided superior finish tow ball
    • Rated D shackles
    • Metalshield’??ƒ?§, Hayman Reese’???s premium eCoat & powder-coat finish
    • Hayman Reese Limited Lifetime Warranty
    • Tested to Australian Standards AS/4177 and ADR 62/02 in a NATA accredited laboratory
    • Tested to industry standards for Static Overload, Durability and Recovery Overload.

A1 Roof Racks are proud to offer Hayman Reese and also offer a complete range of towing accessories including; adjustable trailer ball mounts, drop-shanks, trailer ball mount storage bags, lockable hitch pins, and even bike racks that bolt straight on.

Vehicle Fitment Information

Vehicle Make: MAZDA

Vehicle Model: BT-50

Vehicle Date Range: 07/2020 - current

Vehicle Variant: UTE body MAZDA BT-50 X-BAR (2 BOXES)

Vehicle Specific Notes: Hayman Reese X-BAR

Capacity Information

Towing Capacity: 3500kgs.

Ball Weight Capacity: 350kgs.

Installation Information

Requires a bumper cut? NO

Electronic Control Unit (if needed): 04835

Wiring Tips:

For vehicles equipped with RPA, normally open (N/O) read switch tail is required to dissable. Where 12 pin solution required - Tail part # 04959 provides N/O and right angle wiring exit providing best fitting solution in X-Bar housing. Where 7 pin required - Tail part # 04943 provides correct N/O solution

Kit Inclusions

This listing includes the following components

Towbar Part Number: 03364XW

Wiring Harness: Yes

Electronic Control Unit (ECU): 04835

Towball: Yes

SKU 03364XWKIT-1
