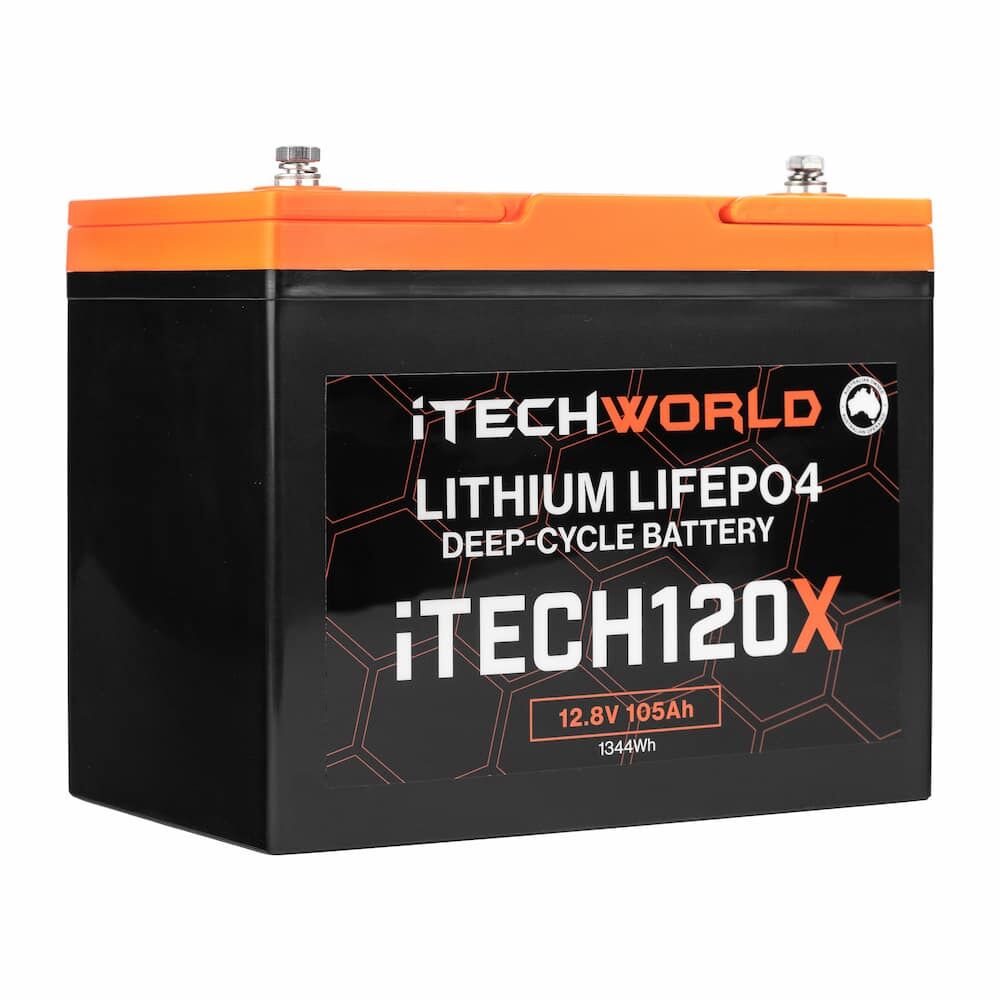

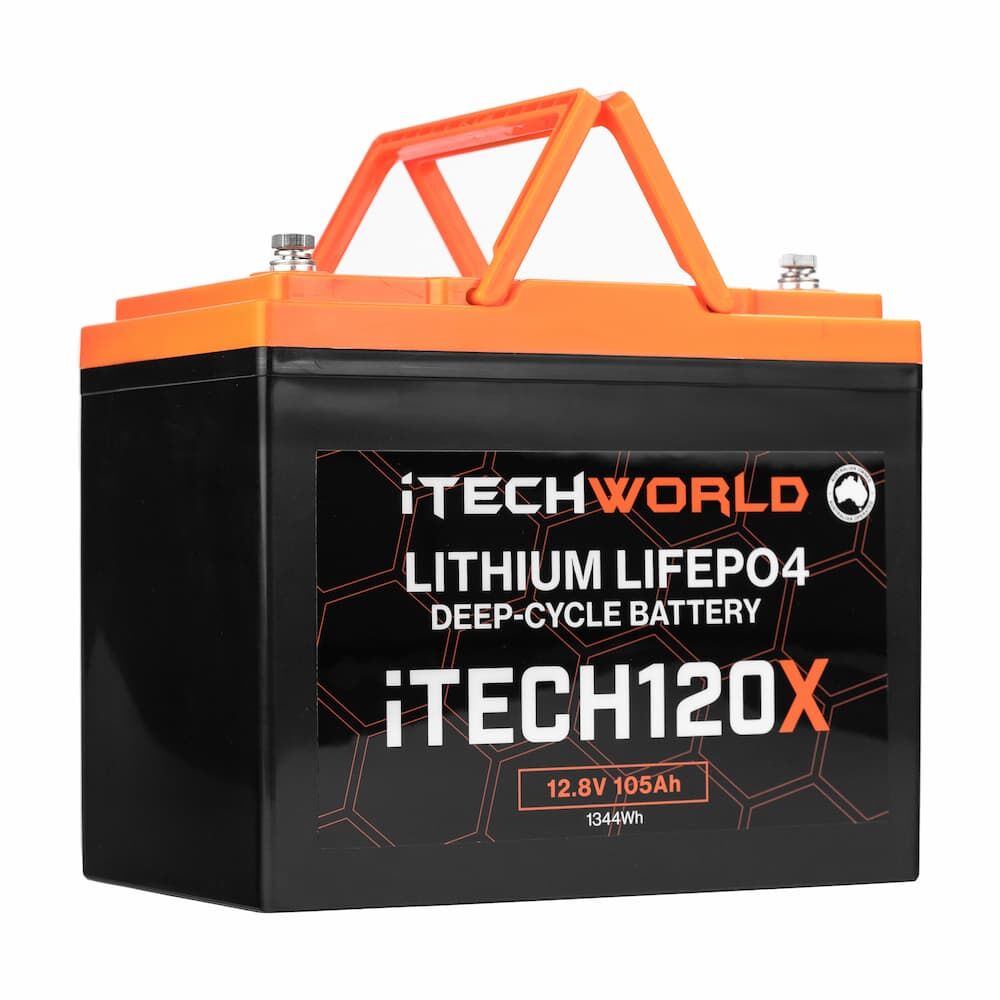

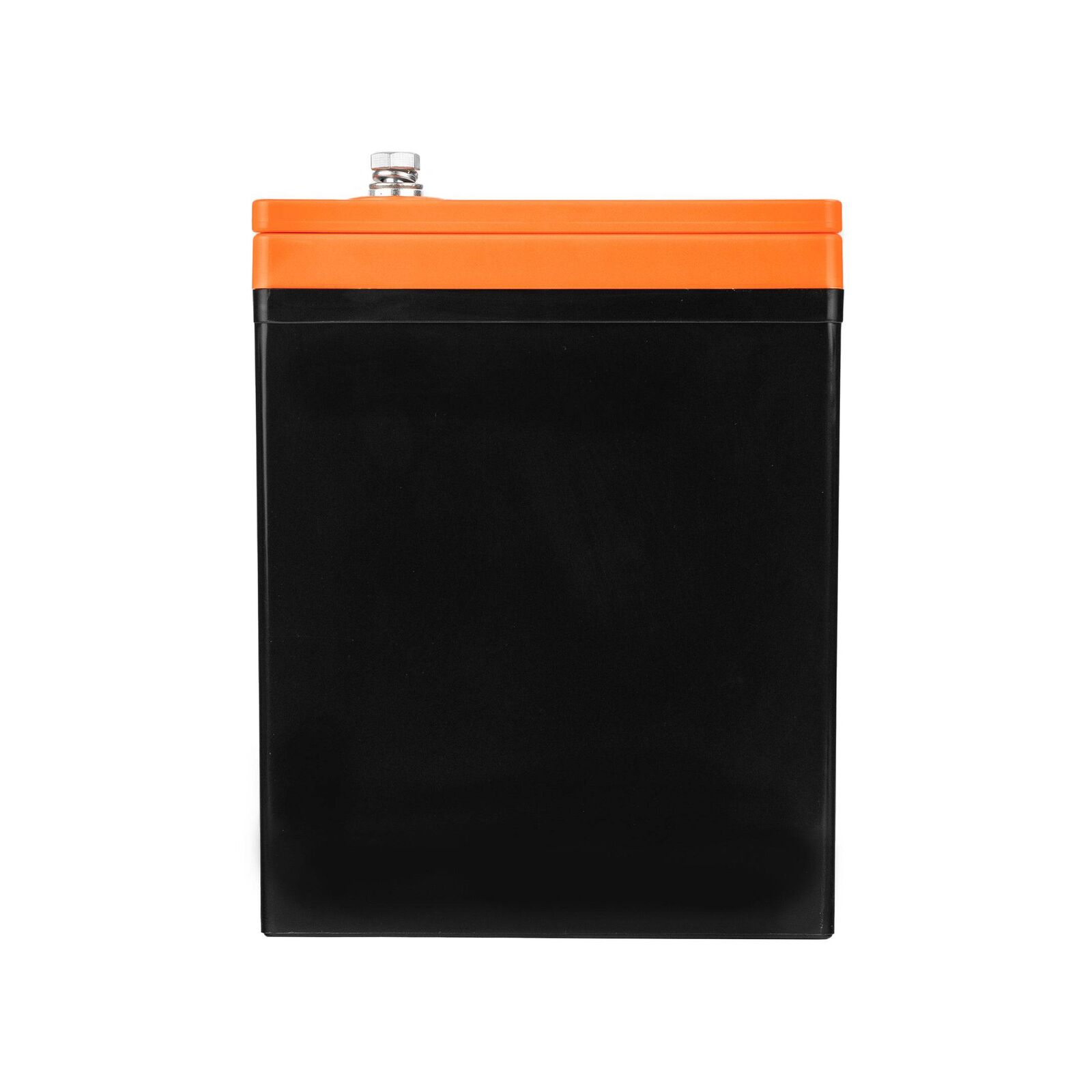

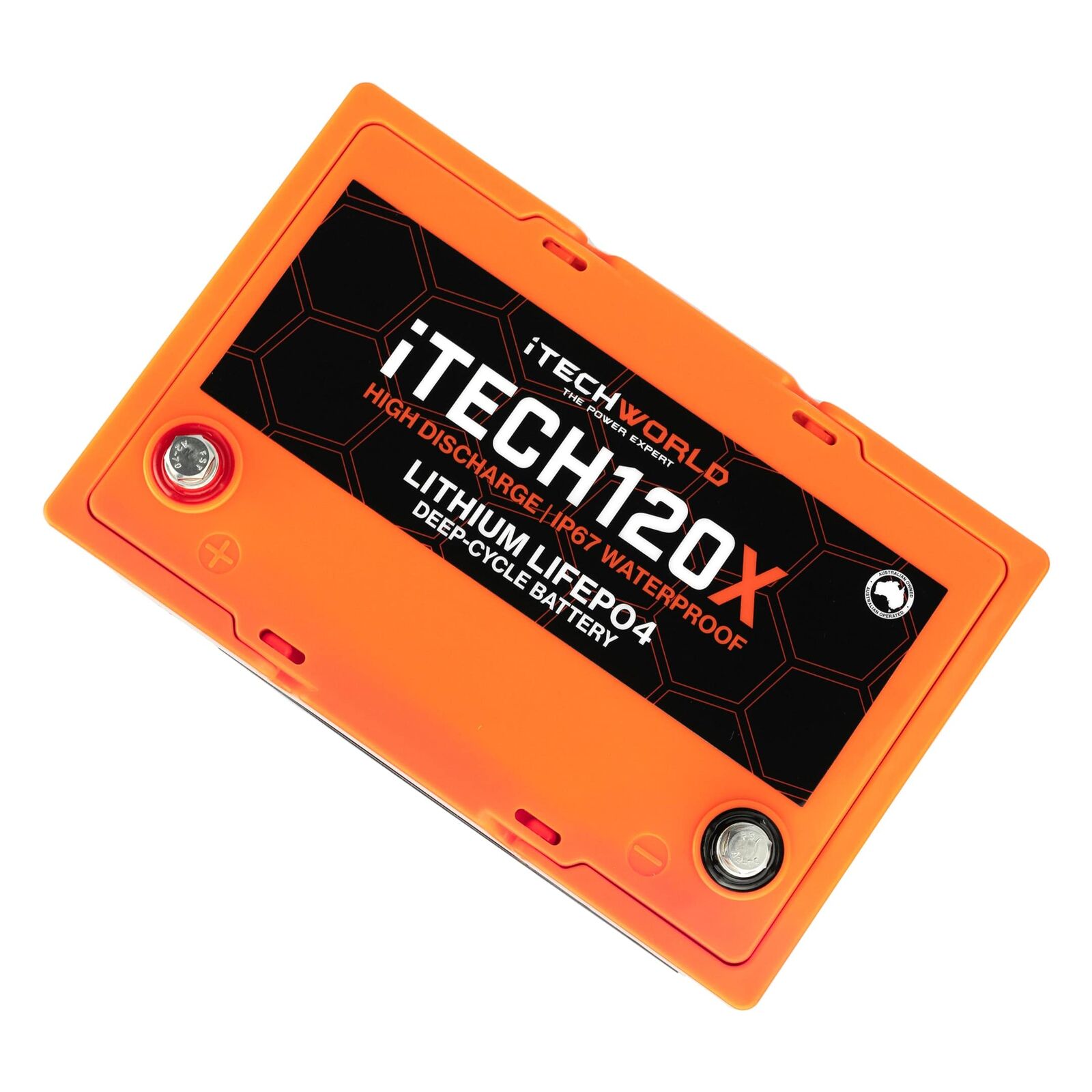

iTechWorld 105AH Lithium Deep Cycle Battery (12V)

The iTECH120X lithium battery has over 10 years of design and development in Australia. Their Australian engineers have spent countless hours building and testing what we believe to be the highest-quality lithium battery available on the market today.

No changing of systems, equipment, or extensive re-wiring is required in most cases. You simply pull your old heavy AGM batteries out and put the new lightweight iTECH120X in. The iTECH120X is the only true drop-in upgrade for your existing batteries.

Our technology now allows an unlimited number of new iTECH120X to be connected in parallel. You can make a battery any size you wish by connecting as many iTECH120X lithium batteries together to make a 12v MEGA battery of any size.

The latest operating system allows a series connection of 4 lithium batteries for 48V applications.

The new iTECH120X is entirely water and dust sealed. Boasting an IP67 rating, this battery can be fully submerged in 1m deep water for up to 30 minutes and has the highest level of dust protection available. No other lithium batteries can match that in Australia today.

Utilising our latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology, the iTECH120X is the toughest deep cycle battery iTechworld has ever built.

As a testament to the toughness and performance of our iTECH120X lithium batteries, they have backed them up with a full 5-year Australian warranty.

In order to super-charge the iTECH120X’s performance, we have equipped it with a new Battery Management System (BMS) specially programmed by iTechworld engineers to auto cell-balance and squeeze every ounce of performance from this deep cycle battery.

Features

• True drop-in replacement - no need to change chargers or equipment
• Rated for under-bonnet use
• IP67 Waterproof - perfect for external mounting
• Only weighs 10kg (Equivalent AGM weighs approx. 60kg)
• 100% usable capacity
• 5 year Australian warranty
• Australian designed and developed
• Australian certified including IEC:62619

Specifications

• Nominal Voltage: 12.8V
• C20 Rating usable amps 10V: 105Ah
• Short Circuit Protection: Yes
• Optimum Temperature Range: +5 to +60°C
• BMS Operational Temperature Range: -5 to 80°C
• Safety Protection Isolator: 80°C
• Recommended Charge Current: 1 - 50A
• Maximum Charge Current: 100A
• Recommended Charge Voltage: 14.4V
• BMS Charge Cut-Off Voltage: 15V
• BMS Low Voltage Cut Off: 8.5 - 9V
• Continuous Discharge: 150A (175A for 5 mins)
• Peak Discharge: 270A for 5 secs
• Series Connection: Up to 48V (4 x batteries)
• Parallel Connection: Unlimited
• Life Cycles 80%: 4000
• Life Cycles 40%: 8000+
• Dimensions (LxWxH): 255x170x215mm (225mm including terminals)
• Approx. Weight: 10kg
• Terminal Type: M8
• Case Material: ABS
• Certifications: UL Certified 1642, CE Certified, IP67 Rated, Rohs Certified, UN38.3 Certified, ISO 9001 Certified, ISO 1400 Certified
