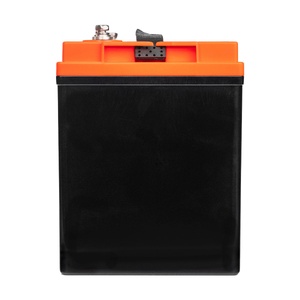

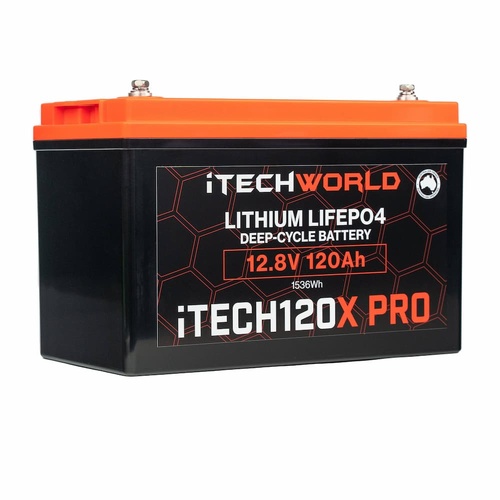

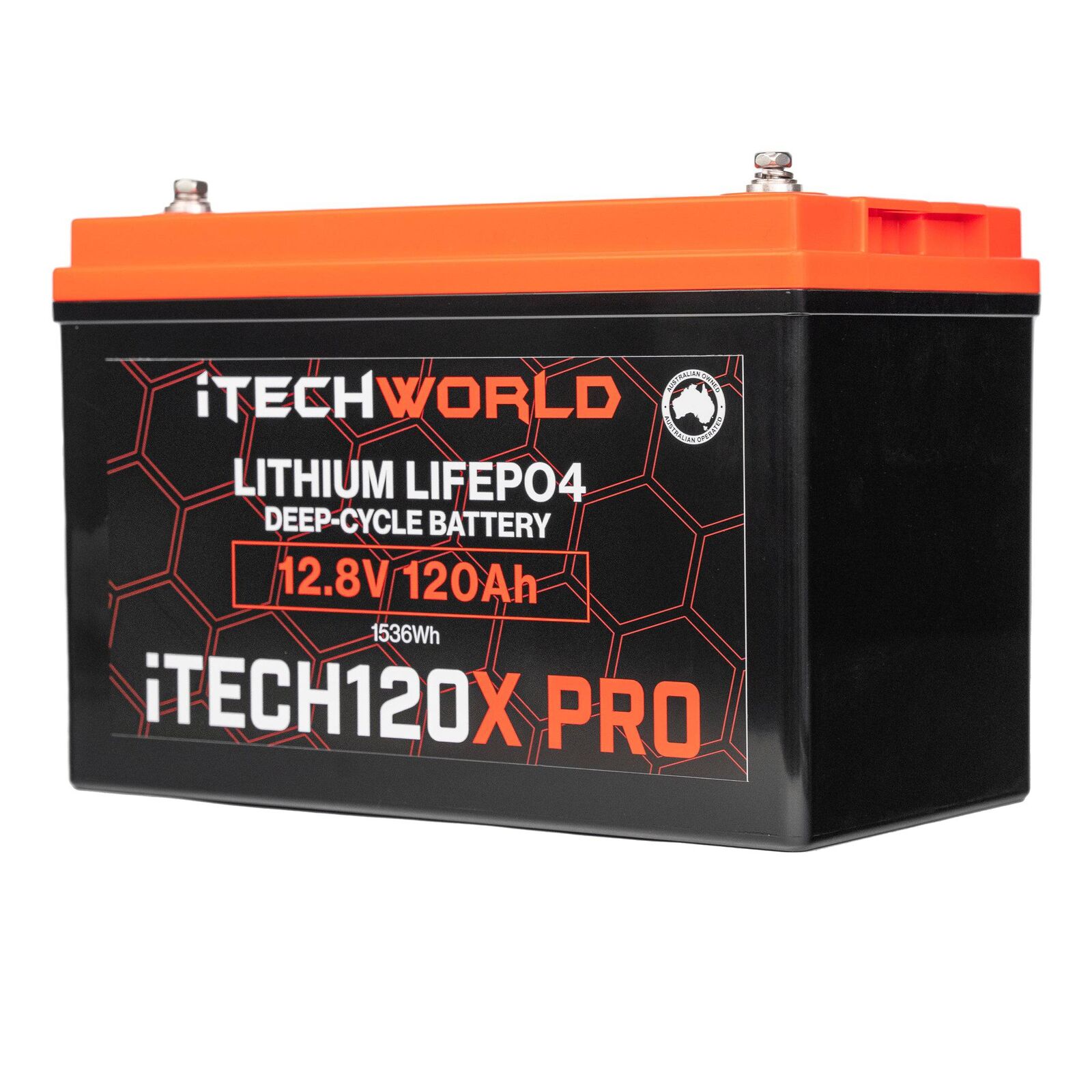

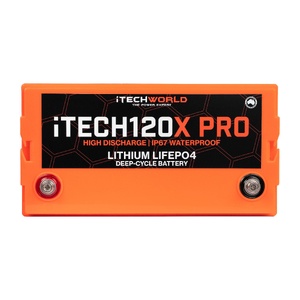

iTechWorld 120AH Lithium Deep Cycle Battery (12V)

The all-new iTECH120X PRO 120Ah Lithium Battery is the result of years of design and development. Featuring a 100% useable capacity, the iTECH120X PRO is the big brother of the ever-popular iTECH120X Lithium Battery but with more useable power!

Like the iTECH120X, the new iTECH120X is a true drop-in replacement for your existing system. No changing of systems, chargers or equipment is required in most cases. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH120X PRO. It's really that simple!

The iTECH120X PRO features a fully 100% useable capacity, allowing the full 120Ah to be drawn from the iTECH120X PRO. Our redesign of the new iTECH120X PRO includes an all-new patent pending prismatic cell type completely different from the one used in the iTECH120X, as well as an all-new supercharged BMS allowing for less cell degradation and a longer lifespan with high current use.

Built for the tough Australian environment, the iTECH120X PRO is IP67 Waterproof rated, allowing for the battery to be submerged under 1 metre of water for up to 30 minutes - perfect for marine applications or outside caravan storage boxes. The iTECH120X PRO utilises the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology; the iTECH120X PRO is also suitable for under-bonnet applications.

After over 10 years of extensive design, development and testing iTechWorld are proud to call the 2023 iTECH120X PRO our new flagship battery holding an extensive 5-year Australian Warranty.

Features

• True drop-in replacement - no need to change chargers or equipment
• Rated for under-bonnet use
• IP67 Waterproof - perfect for external mounting
• 12.5 kgs (59% lighter than an equivalent AGM battery)
• 100% usable capacity
• 5 year Australian warranty
• Australian designed and developed
• Australian certified including IEC:62619

Specifications

• Nominal Voltage: 12.8V
• C20 Rating usable amps 10V: 120Ah
• Short Circuit Protection: Yes
• Optimum Temperature Range: +5 to +60°C
• BMS Operational Temperature Range: -5 to 80°C
• Safety Protection Isolator: 80°C
• Recommended Charge Current: 1 - 60A
• Maximum Charge Current: 100A
• Recommended Charge Voltage: 14.4V
• BMS Charge Cut Off Voltage: 15V
• BMS Low Voltage Cut Off: 8.5 - 9V
• Continuous Discharge: 150A (175A for 5 mins)
• Peak Discharge: 270A for 5 secs
• Series Connection: Up to 48V (4 x batteries)
• Parallel Connection: Unlimited
• Life Cycles 100%: 4000
• Life Cycles 50%: 8000+

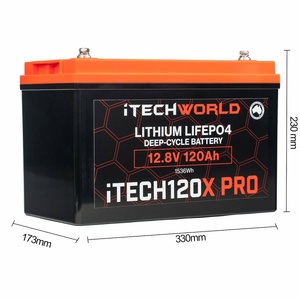

• Dimensions (LxWxH): 330x173x215mm (230mm including terminals)
• Weight: 12.5kg
• Terminal Type: M8
• Case Material: ABS
• Certifications: UL Certified 1642, CE Certified, IP67 Rated, Rohs Certified, UN38.3 Certified, ISO 9001 Certified, ISO 1400 Certified
