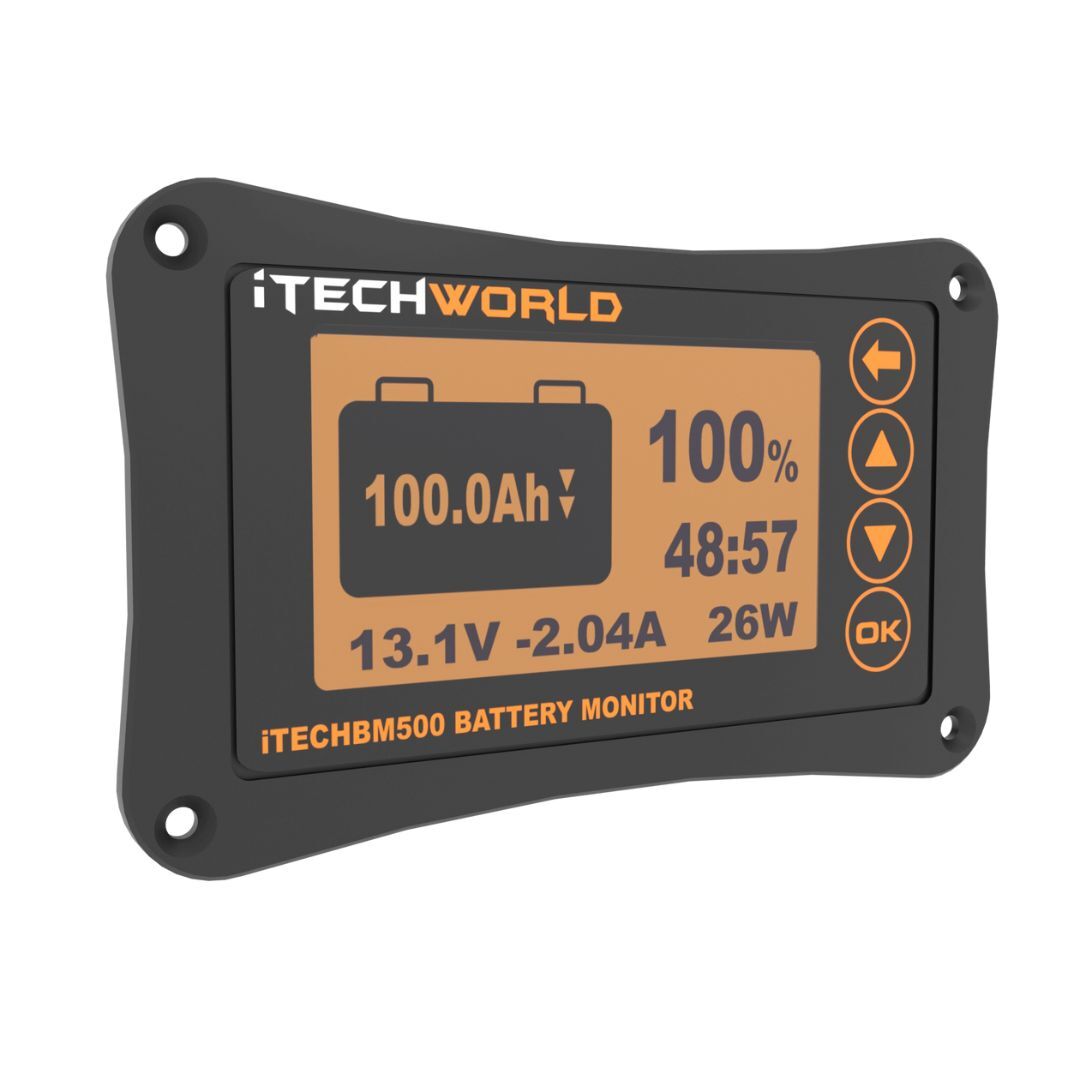

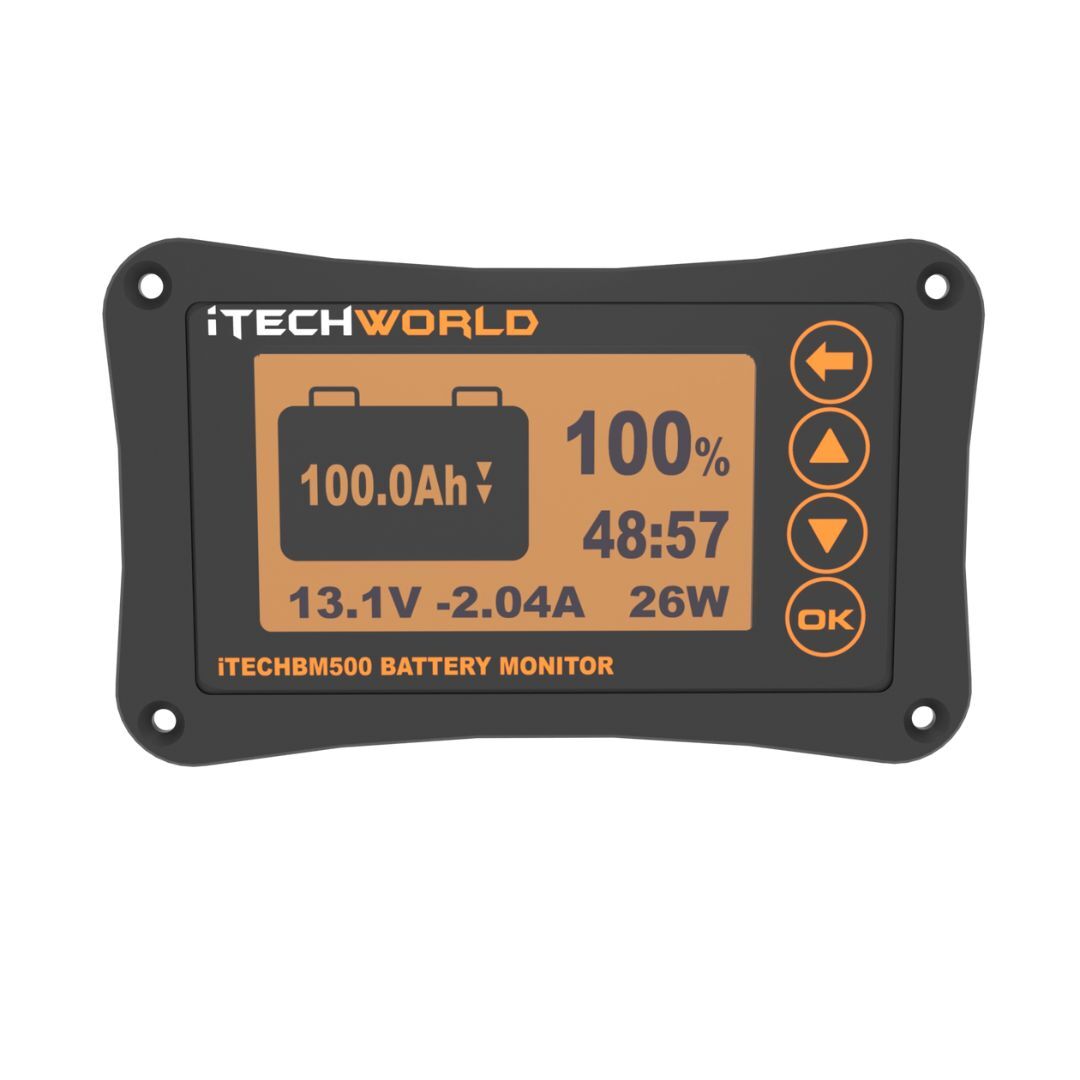

iTechWorld Battery Monitor With Shunt (500A)

The iTechWorld Battery Monitor is a high-precision battery monitor that captures instantaneous and integrated values in real-time. The Battery Monitor utilises a 500A current shunt, the Battery Monitor measures the discharge/ recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. The monitor provides real-time, high-precision voltage measurements through a field-installed sense wire. It is compatible with Lithium-ion, lead-acid, and nickel-metal hydride batteries.

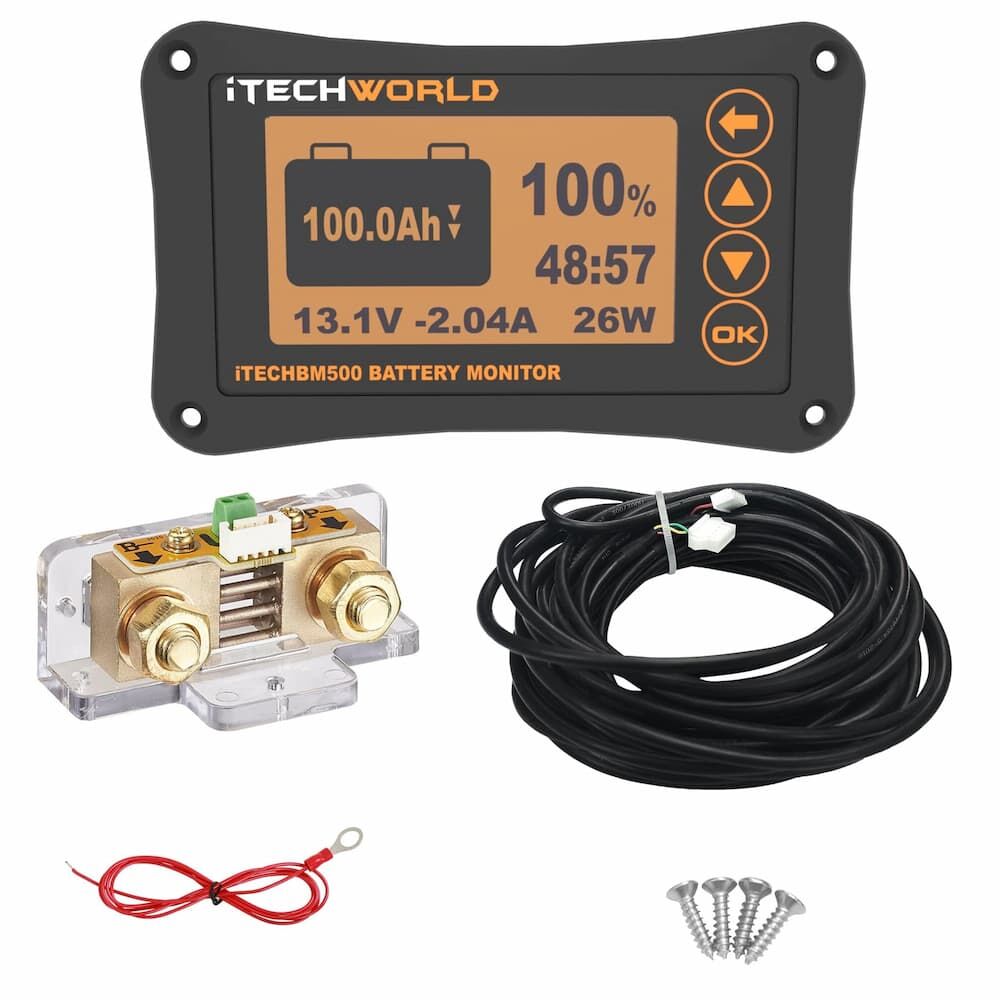

Included in the Box

• 1 x iTECHBM500 Battery Monitor
• 1 x Shielded wire (8m)
• 1 x 500 Amp Shunt
• 1 x Plastic bracket
• 4 x Screws
• 1 x Shunt holder
• 1 x B+ Sense wire 22AWG (1m)
• 1 x Instructions

Specifications

• Digital LCD display
• Rear mount dimensions: 94mm x 57mm
• Cable Length: 8m
• Standby current: 0.6mA
• Battery percentage indicator
• Battery voltage indicator
• Voltage Range: 8-80V
• Reverse polarity protection
• PVC screen protector, waterproof surface
• Suitable for lead-acid 12V, 24V, 36V, 48V
• Suitable for iTechworld lithium batteries
• Easy to use and install
