iTechWorld Portable Lithium Power Station Expansion Pack for PS3600

SKU code: ITW-EB3840

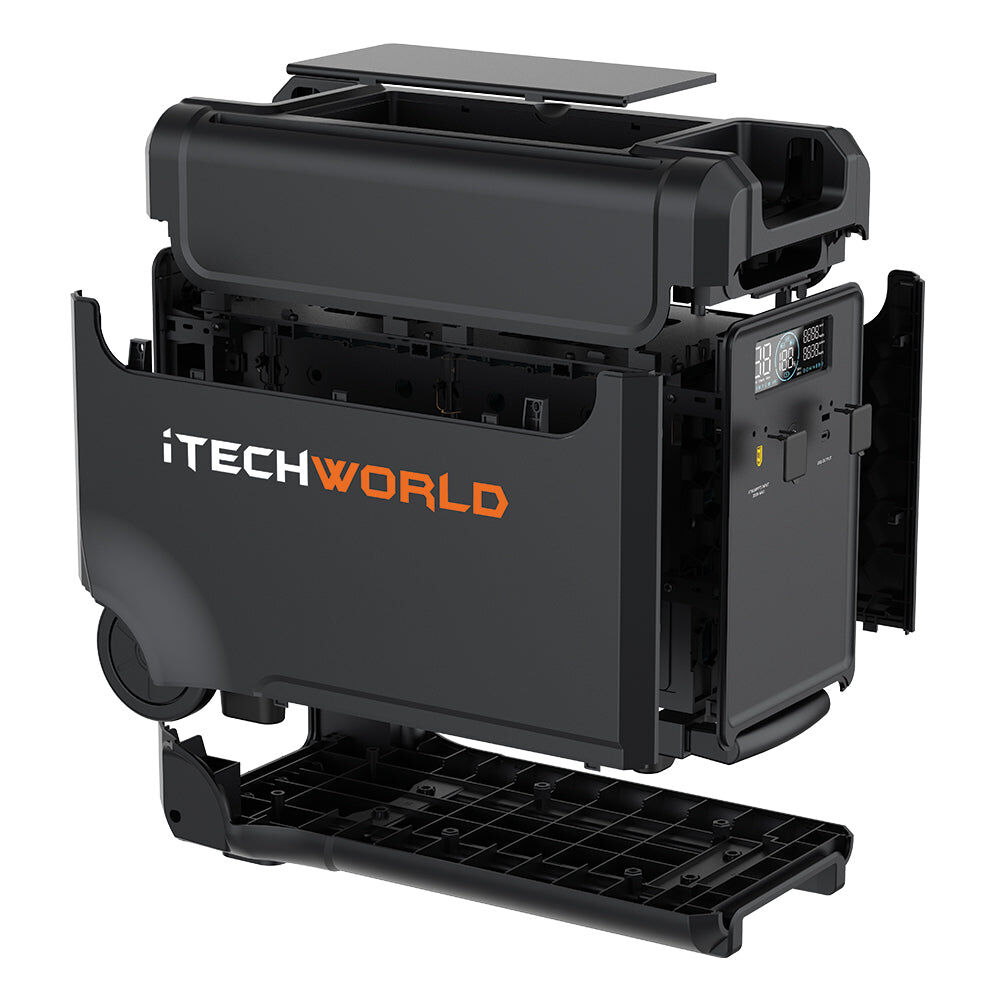

Introducing the EB3840 Expansion Battery. Designed for home backup, up to two of the EB3840 (300Ah each) connected with the PS3600 PRO, you can seamlessly increase the power storage capacity of your power station up to 11,520Wh (900Ah), which ensures complete off-grid living is attainable.

As standard in the iTechworld Power Station range, the EB3840 Expansion Battery features the safest lithium technologies available including over-charge, over-discharge, over-current, over-load, short-circuit, and over-temperature protection.

*PS3600 sold separately

Included in the Box

  • 1 x EB3840 Expansion Battery
  • 1 x Car Charger
  • 1 x Parallel Cable
  • 1 x 50A Anderson to XT60 Adapter
  • 1 x Cable Storage Bag

Dimensions & Weight

  • Size (LxWxH): 550 x 321 x 484mm
  • Weight: 36.5kg

Battery & Performance

  • Battery Type: LiFePO4
  • Cycle Life: >4000 cycles
  • Single Cell Rated Voltage: 3.2V
  • Single Cell Rated Capacity: 20Ah
  • Battery Pack Rated Voltage: 48V
  • Battery Pack Output Voltage: 40V - 54V
  • Battery Pack Rated Capacity: 3840Wh
  • Maximum Parallel Capacity: 11,520Wh

Input & Output

  • XT60 Input: 11.5V-50V, 200W maximum
  • USB Quick Charge 3.0 Output: 18W
  • USB-C Output: 100W
  • Car Charging Output: 12V/10A
  • Power Off Current: <500μA

Environmental Conditions

  • Operating Temperature: -10°C to 40°C
  • Environment Humidity: ≤90%RH
SKU ITW-EB3840
Brand iTechWorld
