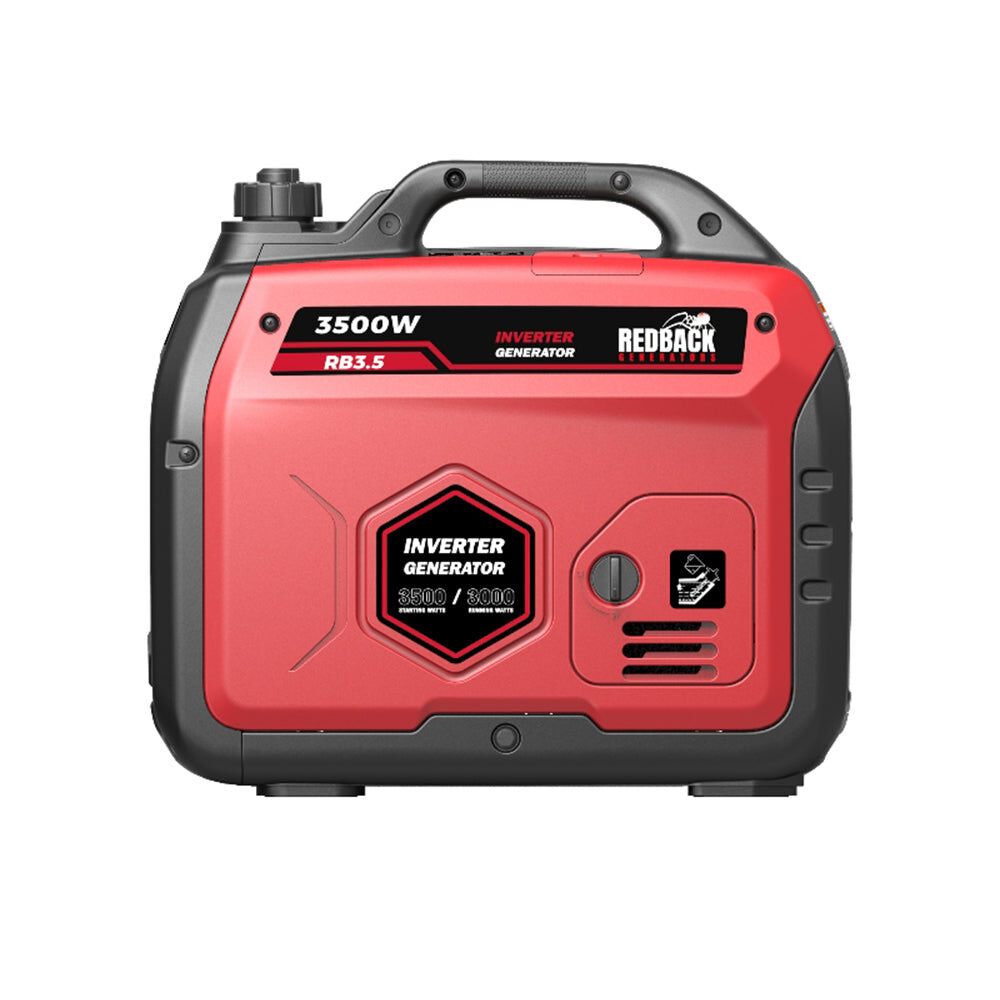

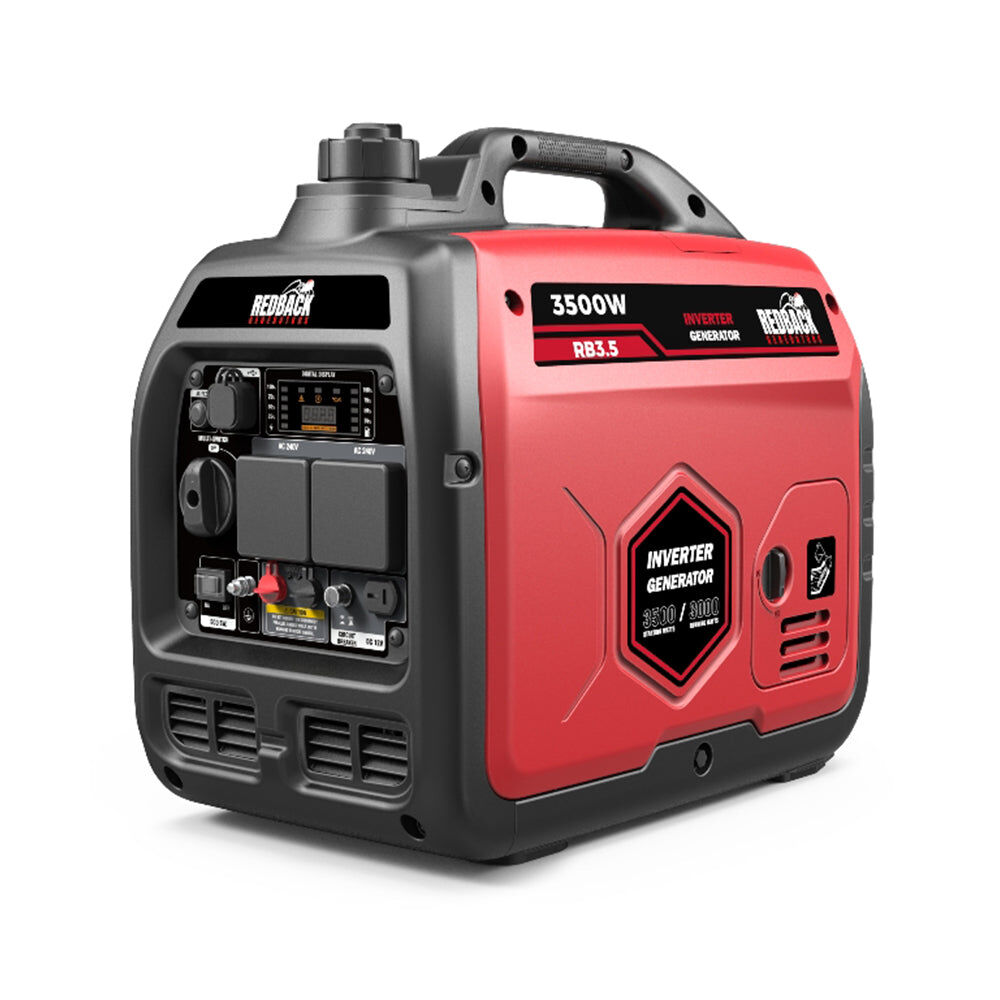

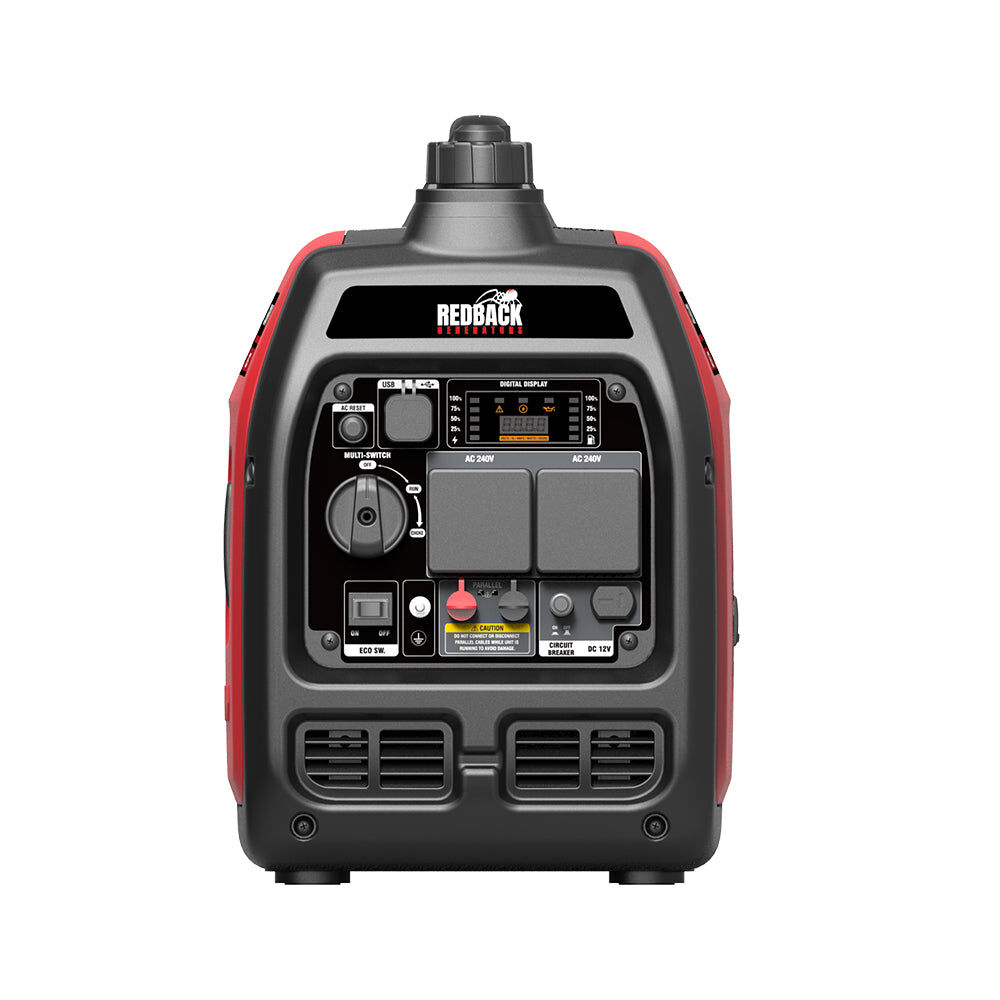

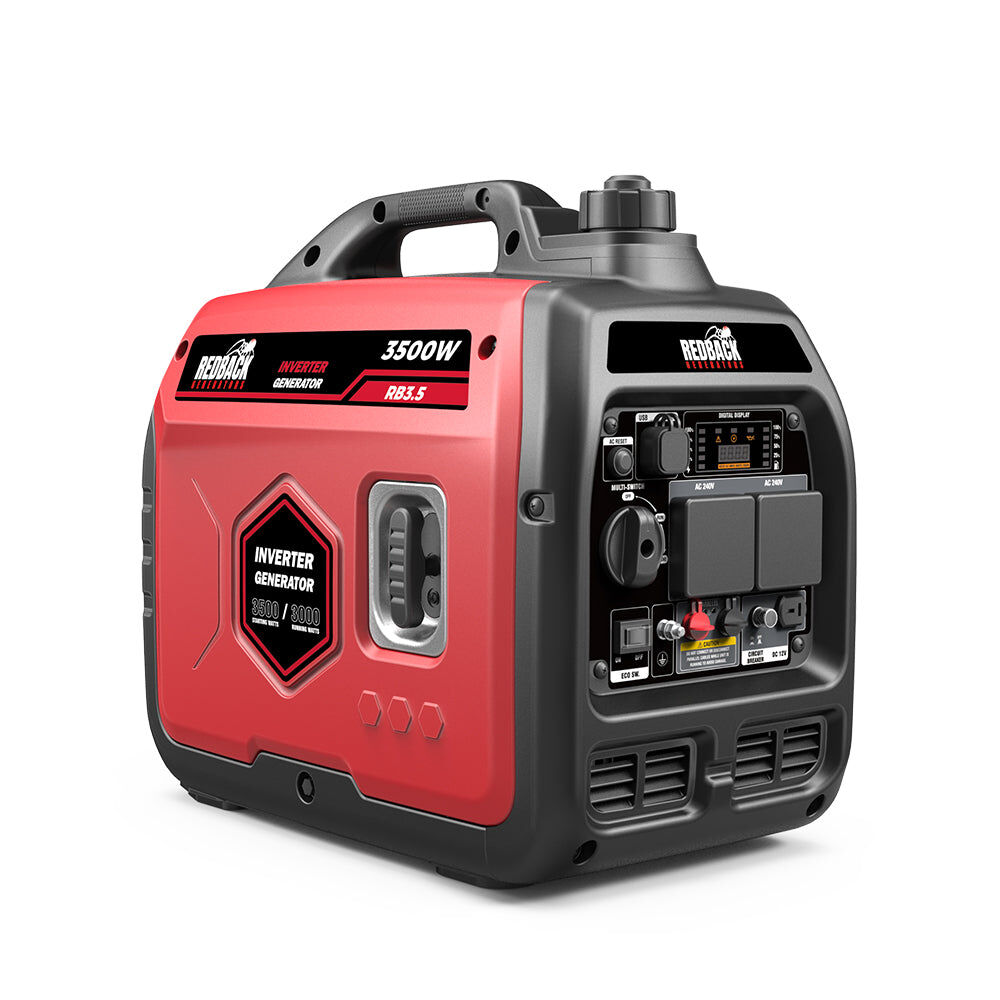

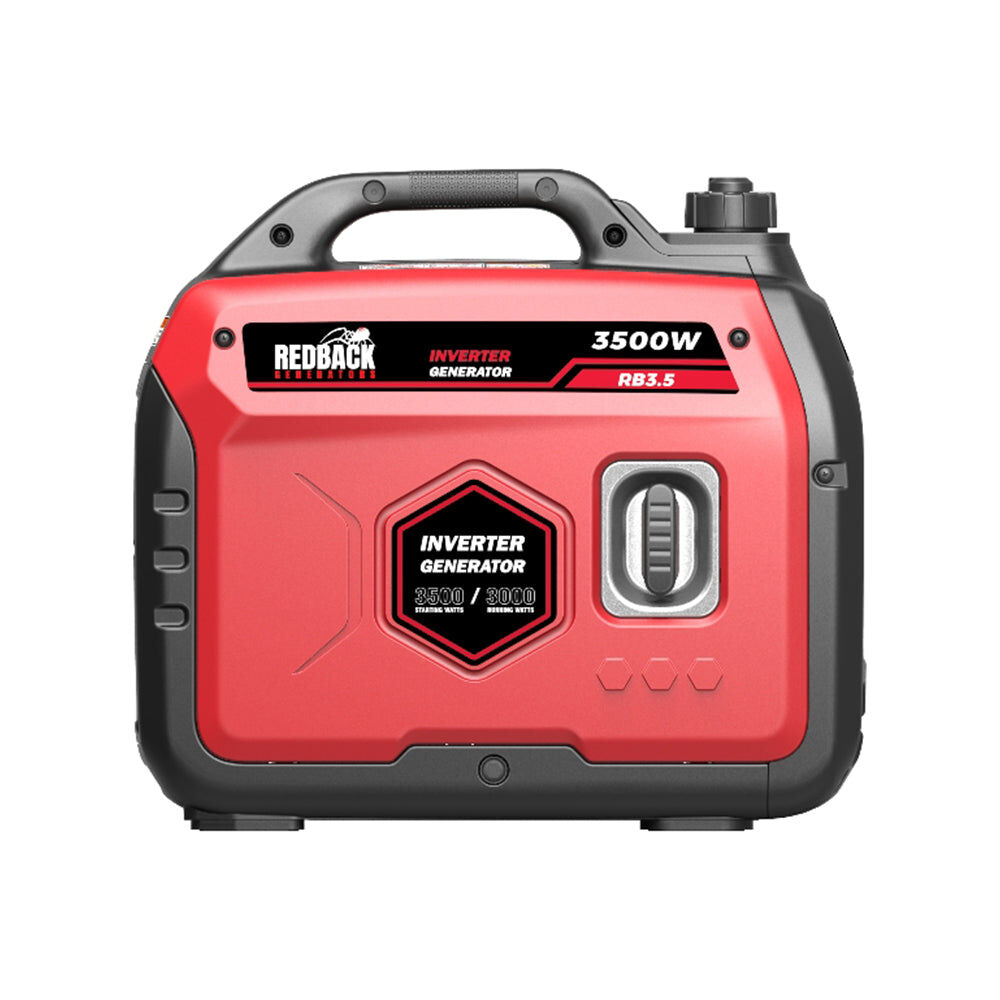

iTechWorld Redback 3500W Portable Inverter Generator

SKU code: ITW-RB35KVA

The iTECHDCDC10 is a versatile and efficient DCDC charger for those needing reliable battery charging in their vehicles or recreational setups. Whether you're running a dual-battery system in a 4WD, camper, or boat, the iTECHDCDC10 ensures your auxiliary battery stays fully charged and ready to be used on the go.

The iTECHDCDC10 has been specifically designed to work in concert with the iTECH7 and iTECH24, and we recommend you use this charger with those batteries.

The DCDC10 charger is engineered to efficiently charge a wide range of 12V automotive or recreational batteries, including standard lead-acid, gel, AGM, calcium, and LiFePO4 (Lithium Iron Phosphate) types. The thick, fortified pre-fused connections increase the efficiency and longevity of your unit, while the smart charger seamlessly manages power between the vehicle's alternator and the auxiliary battery, ensuring efficient charging without overloading the system. It also isolates the auxiliary battery from the cranking battery, preventing accidental over-discharge and ensuring the vehicle always has the power to start.

Designed and developed in Australia for Australian conditions, the iTECHDCDC10 is dustproof and vibration-resistant, making it suitable for off-road adventures and demanding environments. Its heavy-duty case helps with heat dispersion, ensuring reliable performance even in tough conditions, while the compact design allows for easy installation in setups where space is limited.

Included in the Box

  • 1 x Redback RB3.5 3500W 3.5KVA Portable Petrol Inverter Generator?
  • 1 x 12V DC Battery Charger
  • 1 x Maintenance schedule and log book
  • 1 x Screwdriver
  • 1 x Spark Plug Spanner
  • 1 x Oil Refilling Hose

Specifications

  • Engine type: Single-cylinder, four-stroke, air-cooled, overhead valve, tilted 25° off centre of the engine cylinder
  • Bore size x stroke: 64 x 45mm
  • Displacement: 145cc
  • Compression ratio: 8.7 ± 0.2
  • Gas distribution: OHV
  • Cooling mode: Forced convection
  • Output power: 3.8/4650 (kW/r/min)
  • Startup method: Recoil start
  • Fuel tank volume: 3.7L
  • Fuel type: Vehicle-grade unleaded petrol
  • Oil capacity: 0.45L
  • Oil type: SAE 10W/30
  • Lubrication mode: Splash lubrication
  • Noise (@ 7m): 53-57dB
  • Rated power: 3kW
  • Rated voltage: 240V
  • Rated frequency: 50Hz
  • Rated power factor: 1
  • Phase number: Single phase
  • DC output: 12V 8.3A
  • Motor: Brushless (permanent magnet)
  • Voltage regulation: Inverter regulated
  • Frequency regulation: Inverter regulated
  • Overall dimensions (LxWxH): 480 x 290 x 440mm
  • Net weight: 21.5kg
SKU ITW-RB35KVA
Brand iTechWorld
