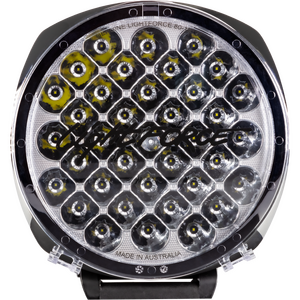

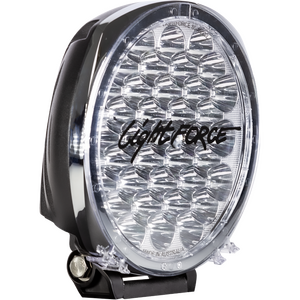

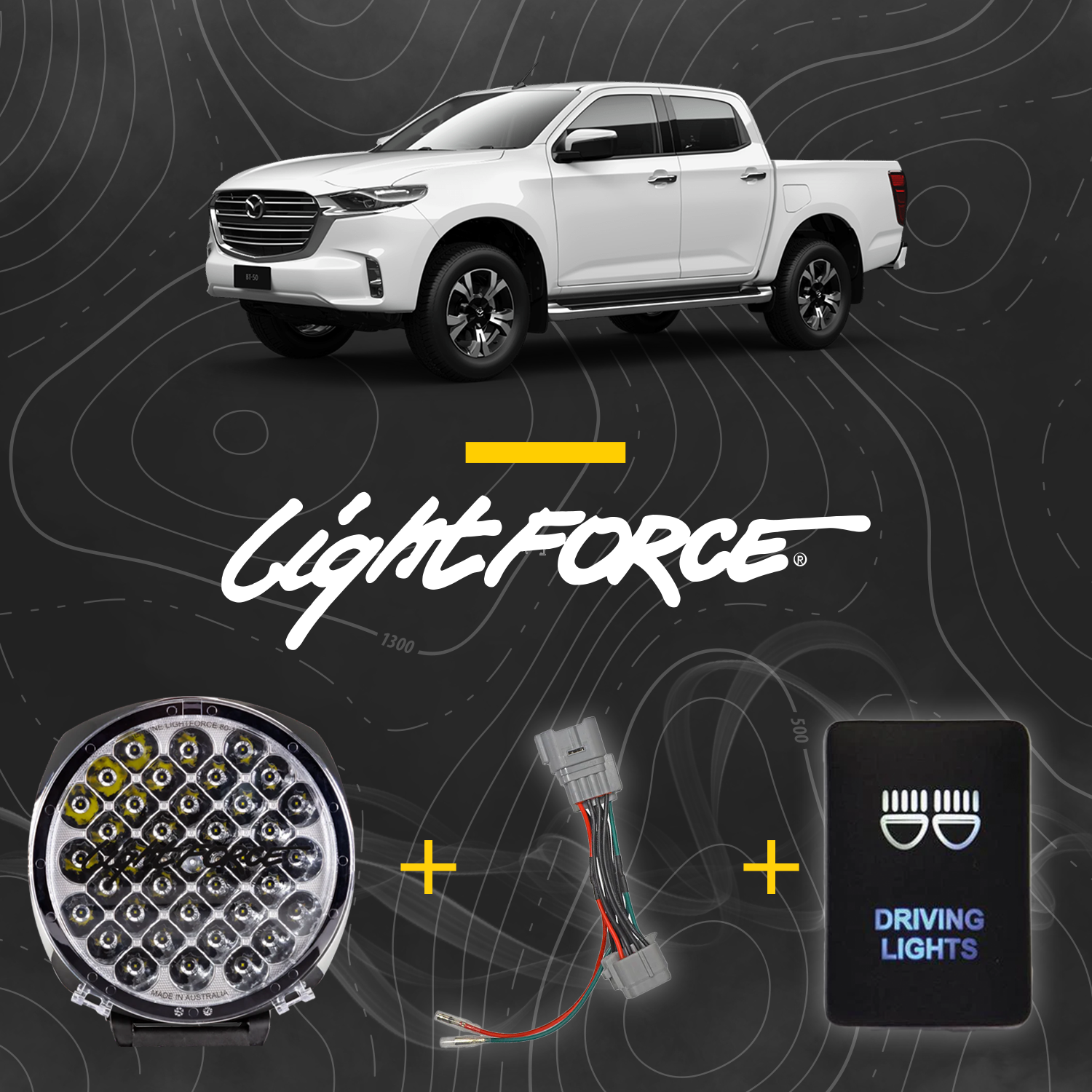

Lightforce - Genesis LED Driving Light Kit to suit Mazda BT-50 2020 - Onwards

SKU code: GENESISLED-1

The vehicle specific Lightforce Genesis LED Driving Light Kit includes everything you'll need for the ultimate Lightforce set-up.

If your driving lights can’t keep up, they’re not worth your time and money. The breathtaking Genesis makes a statement a revelation in glass and metat ready for every adventure.

The Genesis included LED sport cover not only absorbs road grime protecting your investment but it provides a greater focused light beam. The modular design of the Lightforce cover allows you to interchange between the entire range of Genesis 210mm Filters.

Precision-engineered optics, combined with 140 W of industry-leading output, put Genesis in a class of its own. 37 premium LumiledsLEDs bring light to darkness out to an incredible 1.12 km distance.

* The kit includes the standard mounting brackets. Most vehicles will require mounting tabs found on Bull Bars, Nudge Bars, and Roof Racks.

Features

  • 140W LED / 15540lm (raw) for industry-leading output

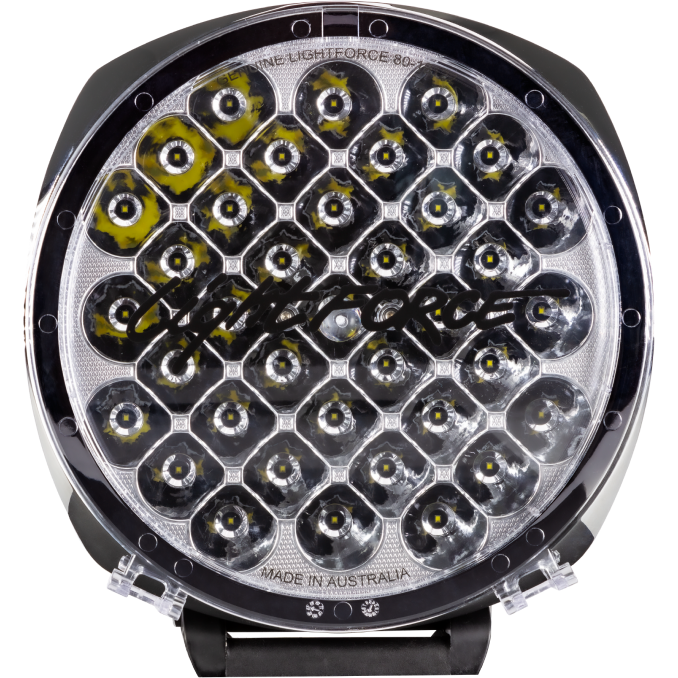

  • 37 x high-quality Lumileds LEDs that provide consistent performance
  • LED spot reflector with the ability to use a combination modular filter

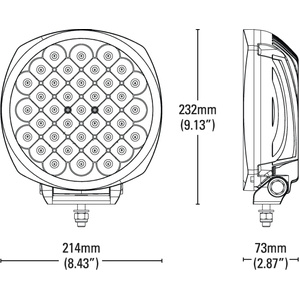

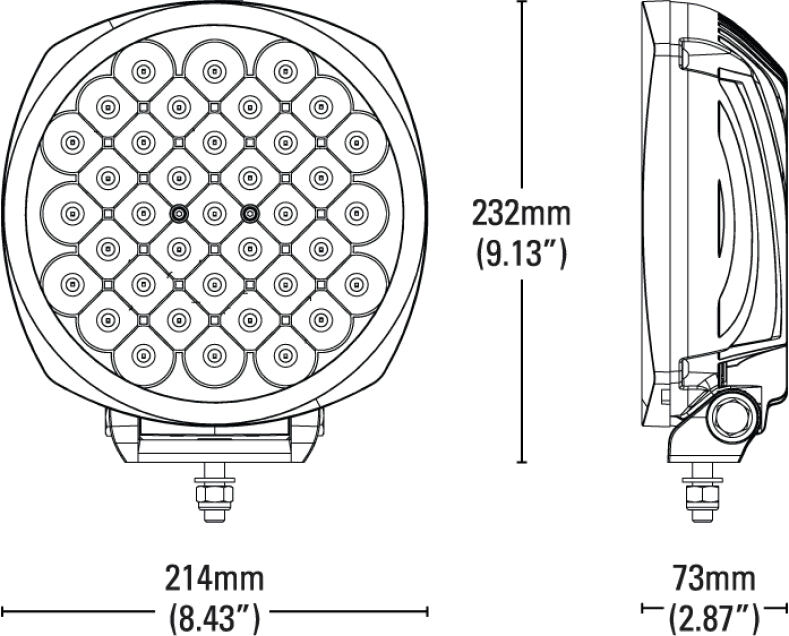

  • 73mm slim footprint that provides multiple mounting options
  • 3 stage operation: Full intensity, day time or night time positioning options
  • Reverse polarity voltage protection and high current waterproof connectors
  • CISPR25 compliant, reduced radio frequency interference technology
  • Thermal overload protection prevents light from overheating
  • Hard-wearing UV stable powder coat finish
  • IP68 & IP69K rated / Gore waterproof membrane to protect against water and dust

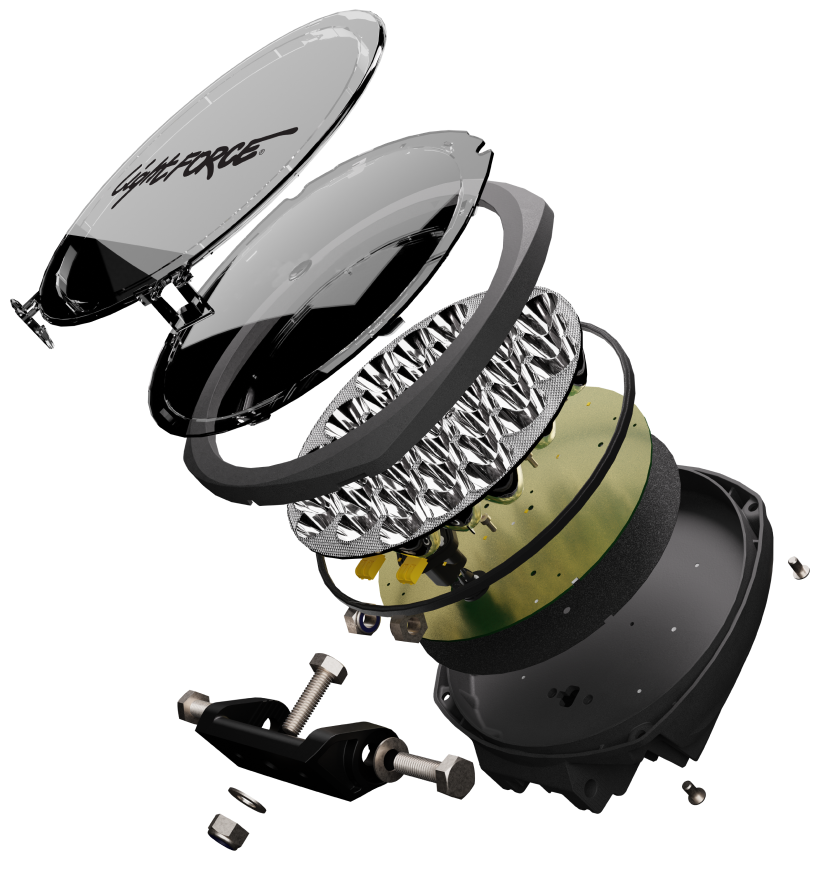

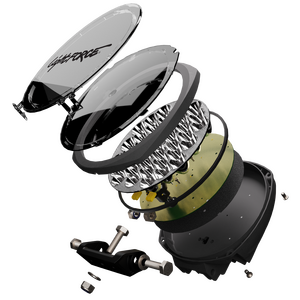

  • Pressure diecast aluminium housing and bezel providing lightweight strength
  • Impact-resistant polycarbonate filter for added protection
  • 3 year warranty.

Included in the Box

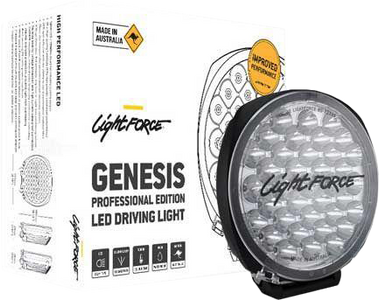

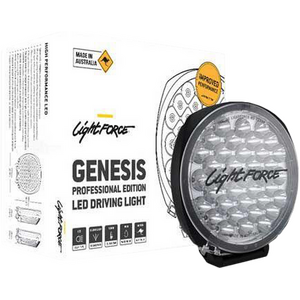

  • 1 x Genesis Professional Edition LED Driving Light with fitted mounting bracket (GENESISLED210)
  • 1 x Spot filter (F210C)

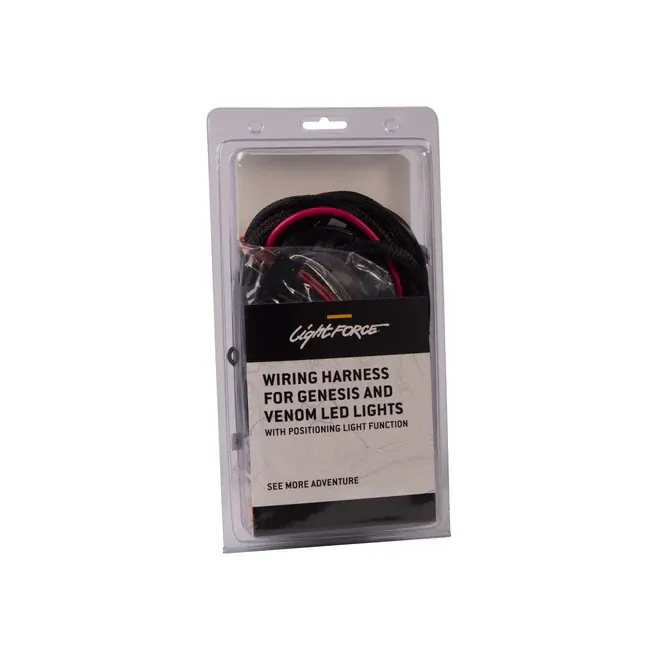

  • 1 x 4 pin high current waterproof harness adaptor
  • 1 x Mounting hardware
  • 1 x User instructions

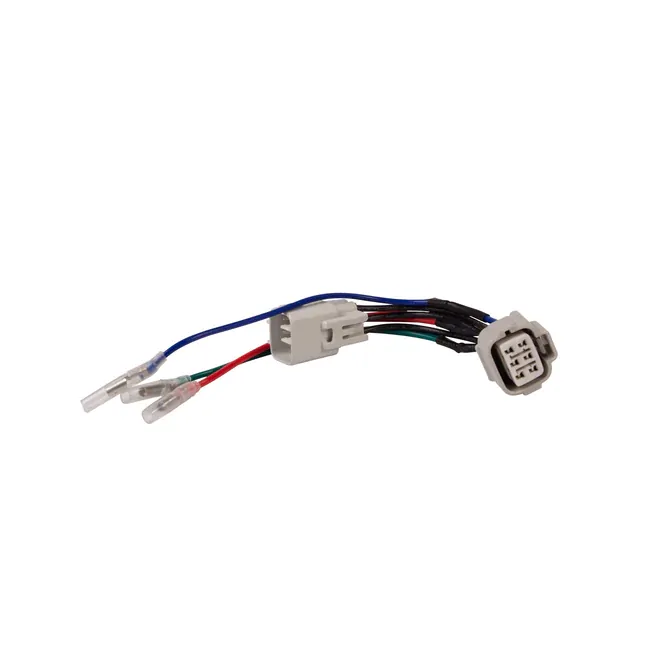

  • 1 x Vehicle Specific Patch Harness

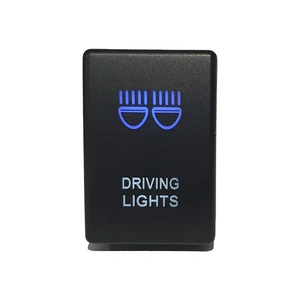

  • 1 x Vehicle Specific Switch + Harness

Specifications

  • Globe Type LED
  • Distance 1 lux at 1119m
  • Effective Lumens 9030
  • Raw Lumens 15540
  • Colour Temperature 5000K
  • CIR 70
  • Current Draw 10.5 Amps at 13.2V
  • Voltage Range 10 - 32V
  • Wattage 140W
  • Ingress Protection IP68 and IP69K
  • Diameter 210mm
  • Weight 2.4 including brackets
SKU GENESISLED-1
Brand Lightforce
