Lightforce Headlight Patch Harness Suitable for Isuzu D-Max /Mazda BT-50 2020 - Onwards

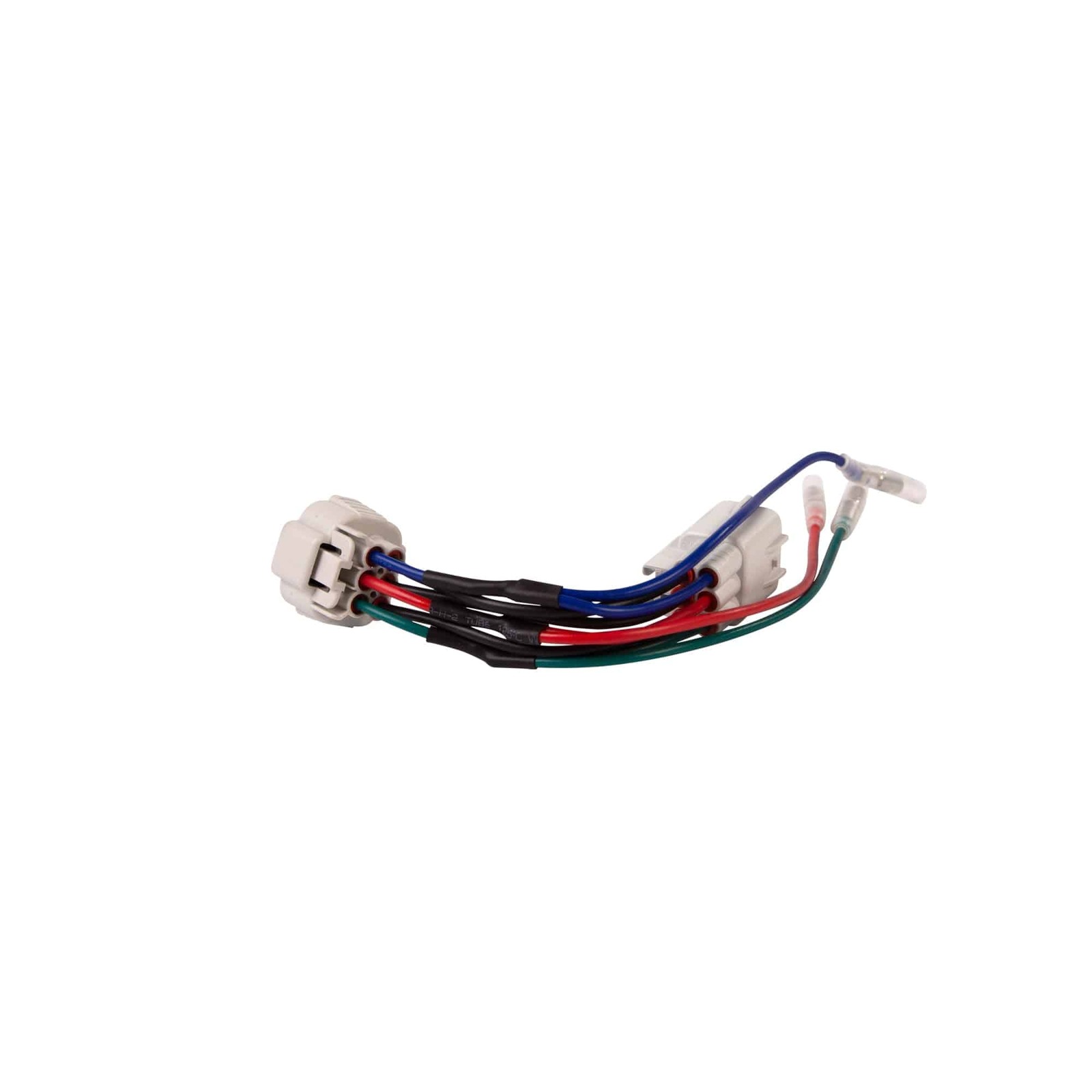

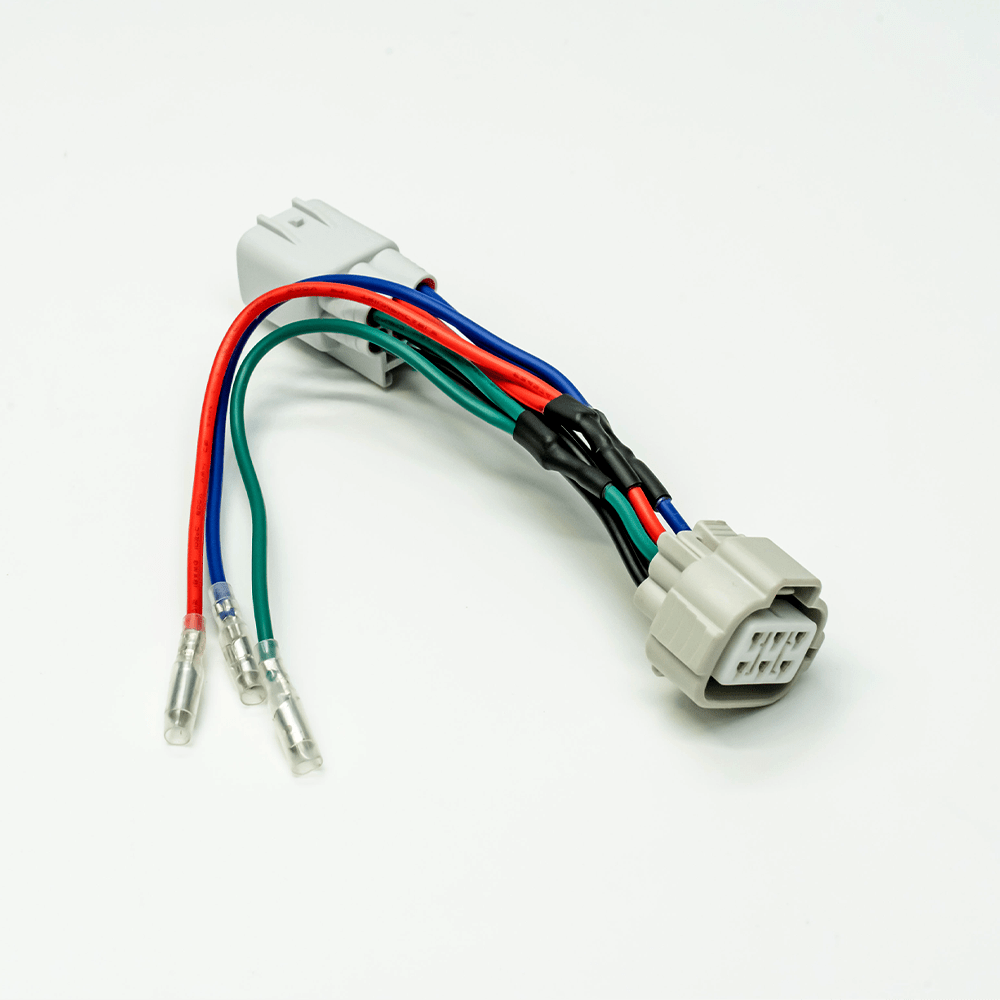

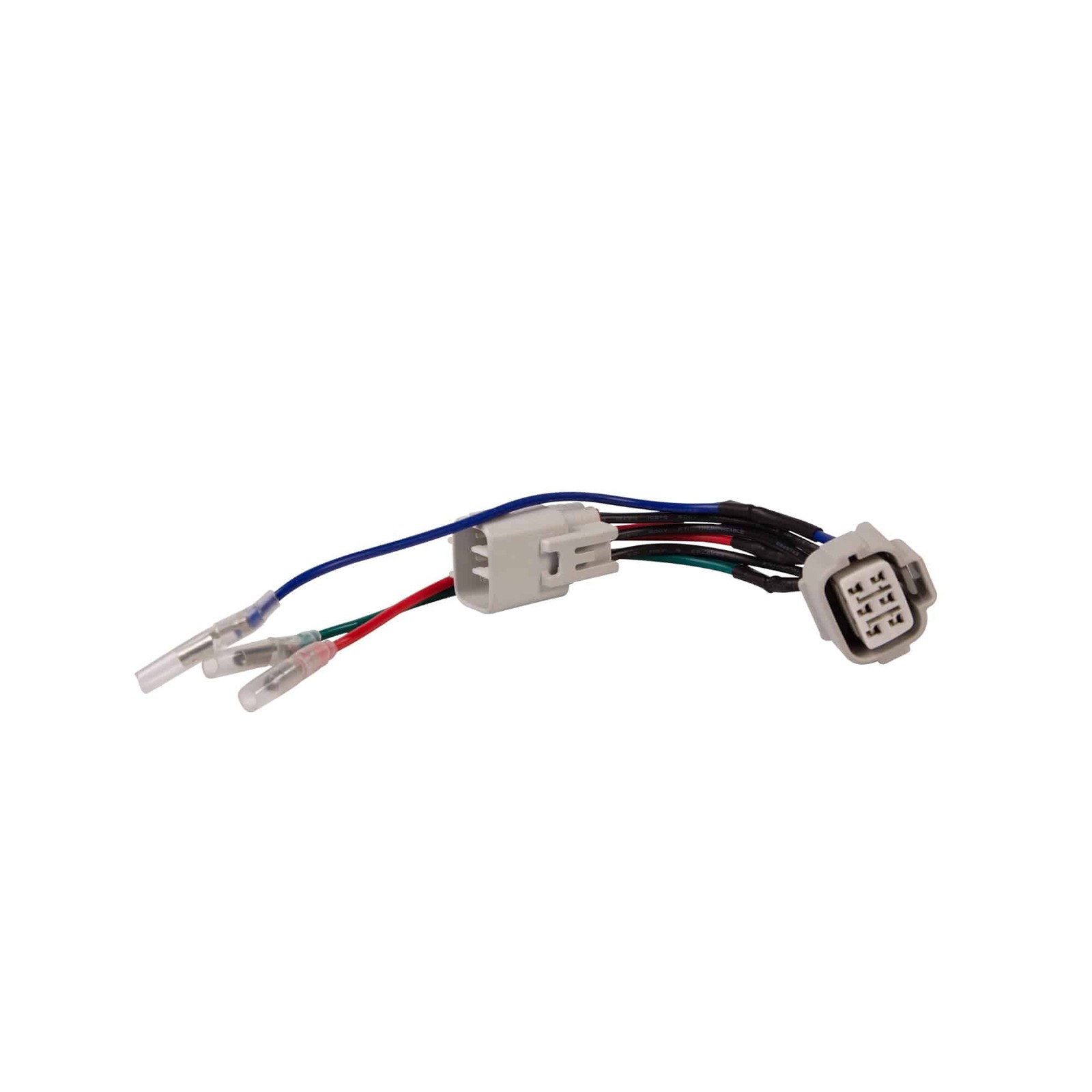

This accessory allows for easy installation of auxiliary driving lights on your DMax 3rd Gen or Mazda BT50 3rd Gen by utilizing the factory connection point on the back of the headlight assembly. There's no need to drill a hole in the dust cover or splice into the factory harness.

Installation Steps:

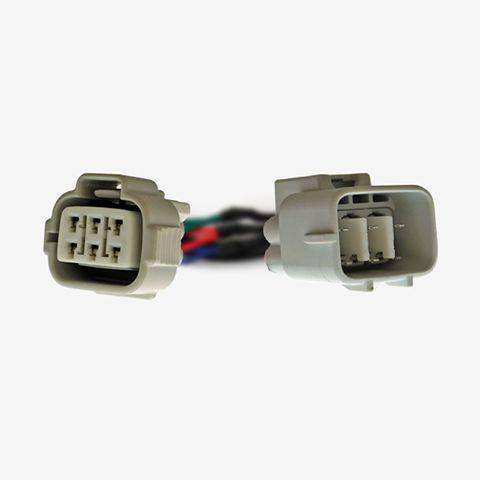

1. Remove the factory 6-pin connector from the back of the headlight. Press the locking tab while removing the connector.
2. Attach the corresponding new connector to the factory connector.
3. Connect the remaining new connector to the original factory connector on the headlight assembly.
4. Connect the corresponding connectors from any of the compatible wiring harnesses listed below.

Wiring Details:

• Red Wire: Connects to the vehicle's positive high beam circuit to trigger the positive signal on an auxiliary relay for driving lights.
• Green Wire: Connects to the vehicle's negative circuit to trigger the negative signal on an auxiliary relay for driving lights.
• Blue Wire: Connects to the vehicle's positive low beam headlight for optional positioning lights or as the pickup point for switch illumination.

Compatible Lightforce Wiring Harnesses:

• LFDLHTS / LFDLHTS2 - Genesis / Venom
• LFDLHDS - HTX MK1 / MK2
• LFDLHSS - 12V Single Switching Harness
• LFLBHVSR / LFLBHVDR - Viper Light Bar
• LFDLHBEAST-U - BEAST LED Driving Lights Wiring Kit – Universal Fitment
