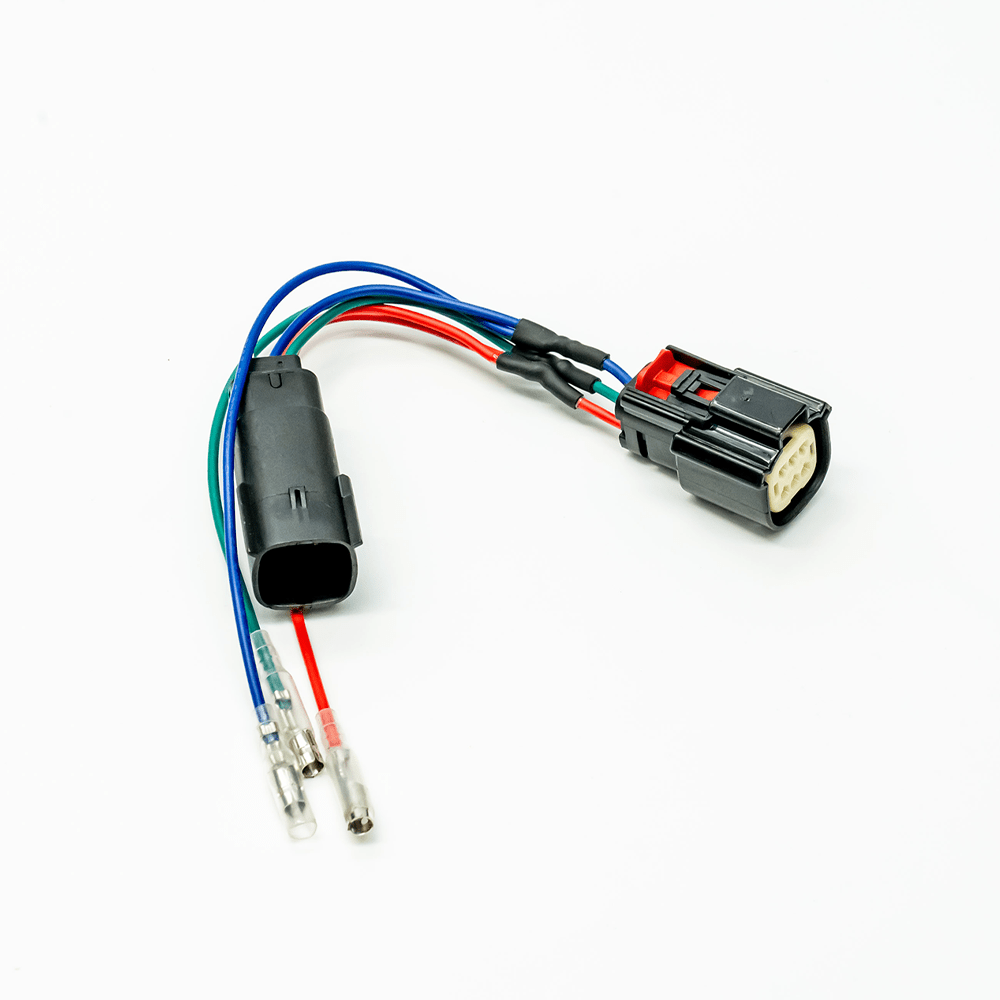

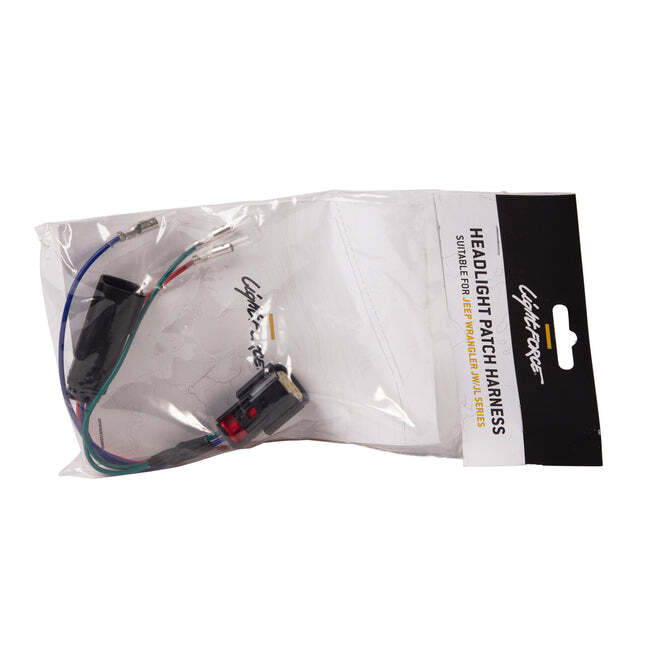

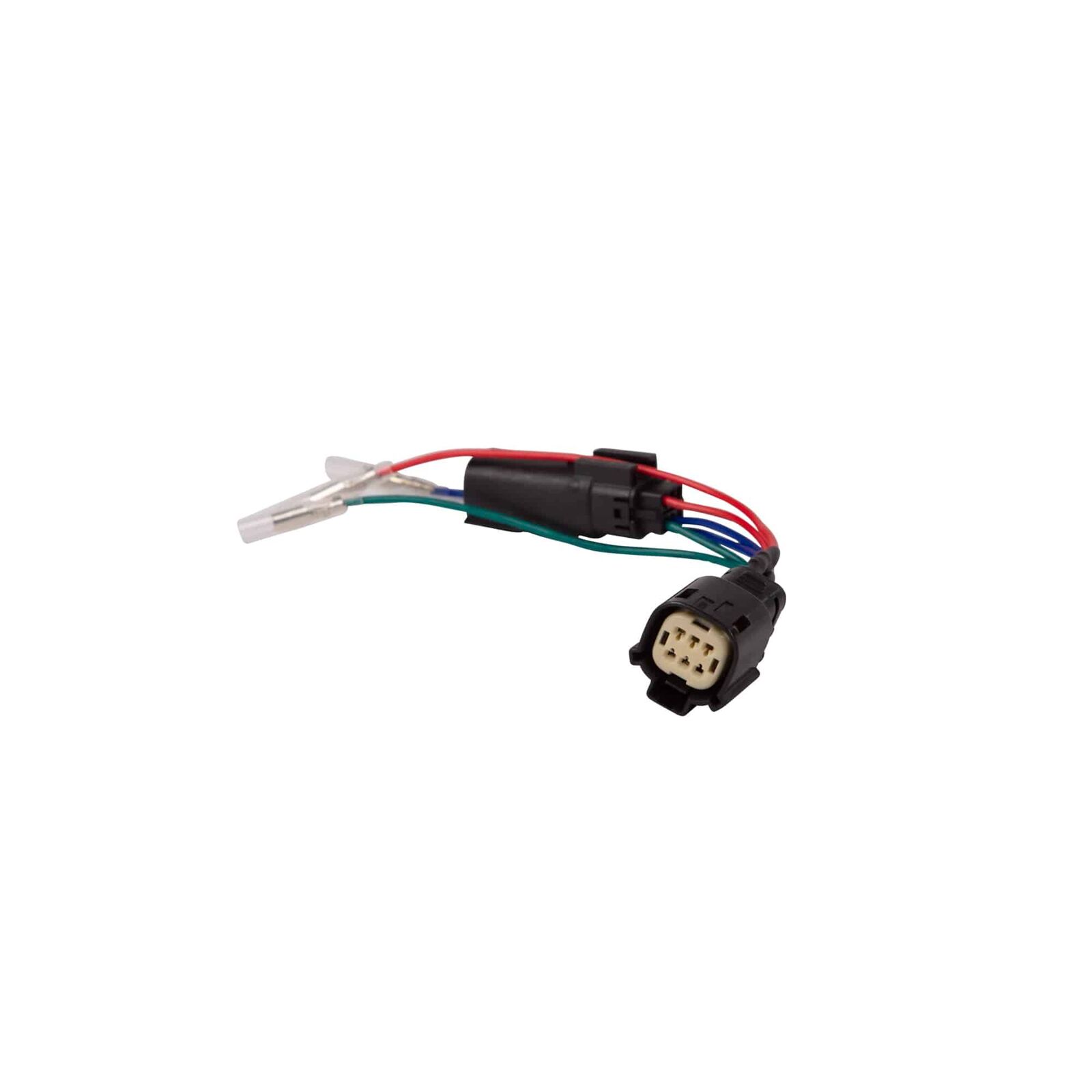

Lightforce Headlight Patch Harness Suitable for Jeep Wrangler JW / JL Series

Suitable for use with the Jeep Wrangler JL (2018 onward) fitted with factory LED headlights, allowing for easy plug and play integration into the existing factory headlight connector that are located on the back of each of the vehicle’s headlight assemblies.

This utilises the factory connection point on the back of the headlight assembly. You no longer need to put a hole in the dust cover or splice a wire into the factory harness for auxiliary driving lights, simply:

• Remove the existing factory six-pin connector from the back of the headlight (left or right side). There is a locking tab that must be depressed while removing the connector. Before depressing the locking tab, push the connector in first, then depress the locking tab to withdraw the connector.


• Fit the corresponding new connector to the factory connector that has just been removed.


• Fit the remaining new connector to the original factory connector affixed to the headlight assembly.


• Then connect the corresponding connectors from any one of our listed compatible wiring harnesses.
