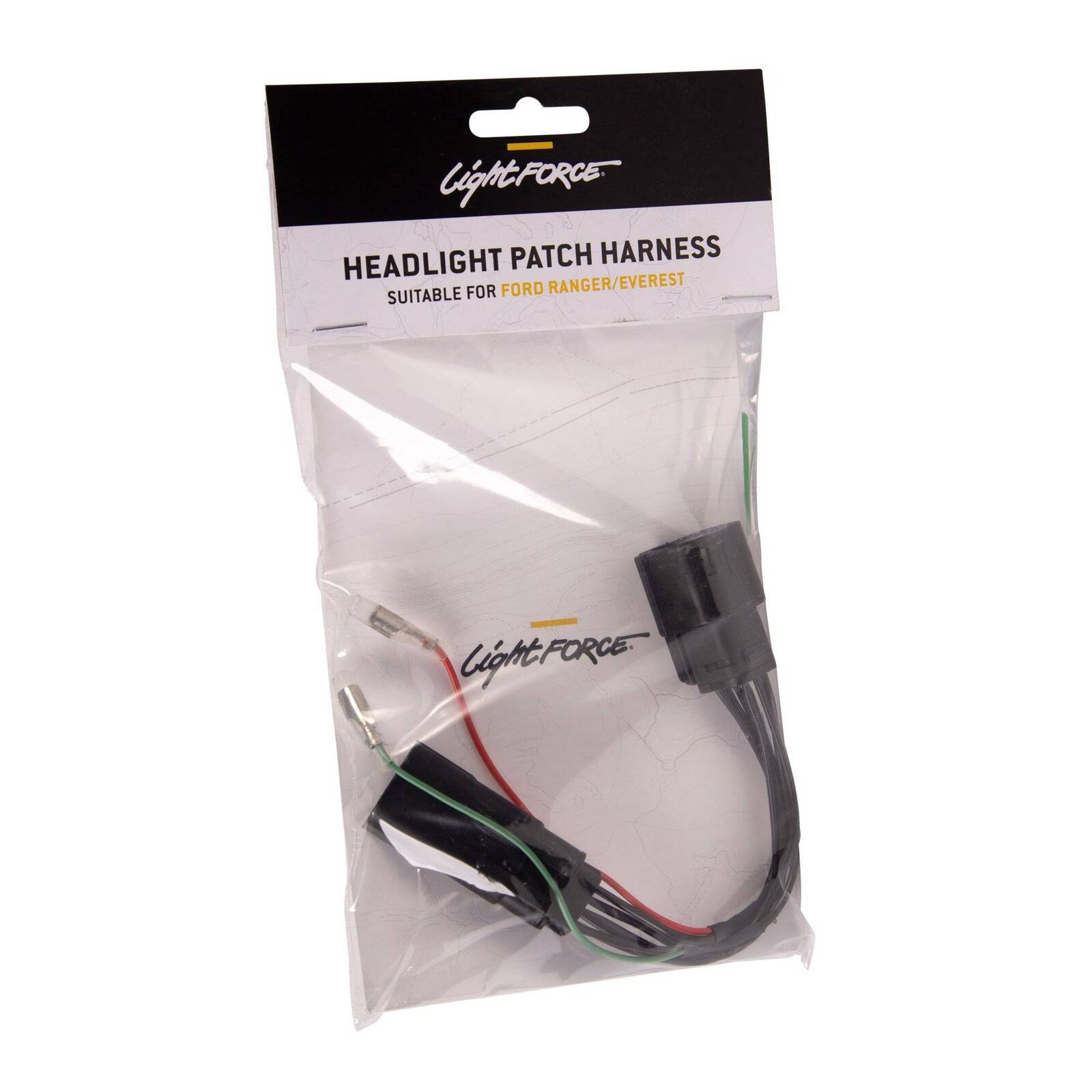

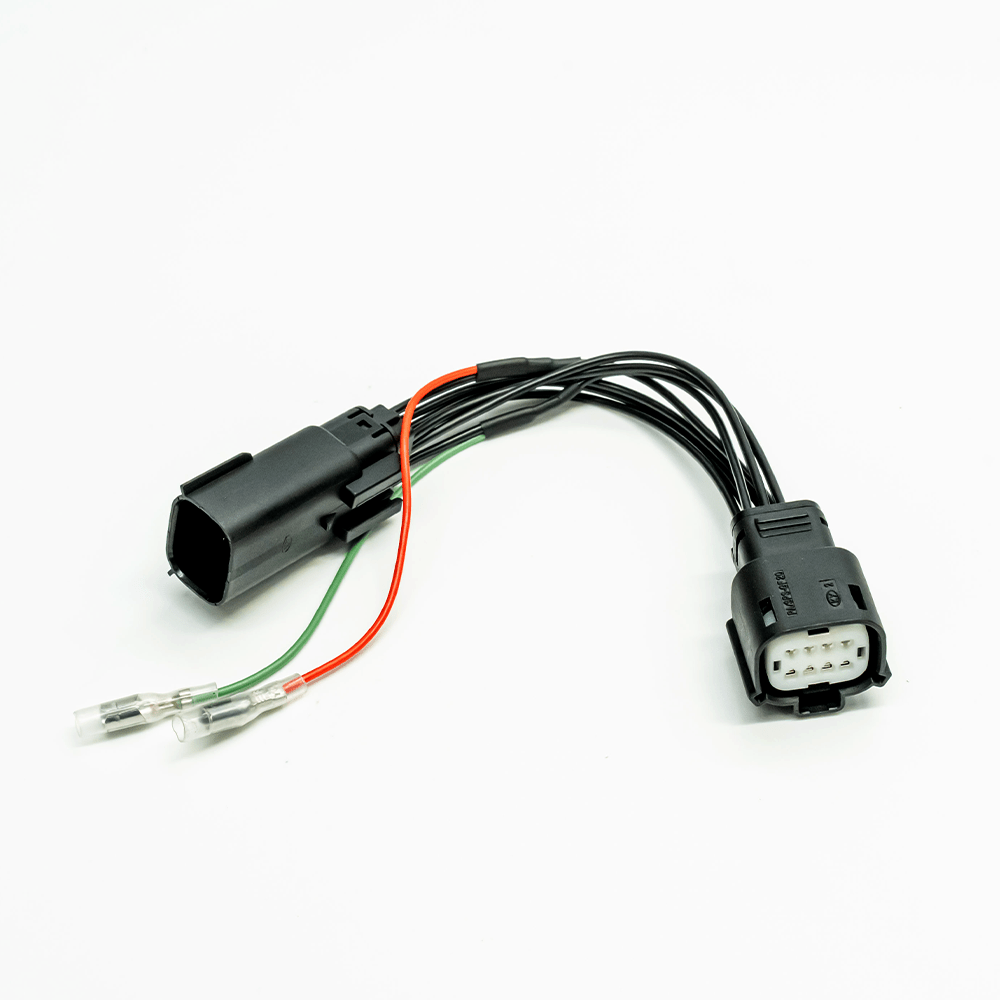

Lightforce Headlight Patch Harness Suitable for Ford PX2/PX3/Everest and Raptor

These connectors are suitable for use with the Ford Ranger PX Mk 2 , PX3, Raptor and Everest models allowing for easy plug and play integrate into the existing factory 8 pin headlight connector that are located on the lower back of each side of the vehicles headlight assemblies.

Uses the recommended high beam connection point as highlighted in the Body and Equipment Mounting Manual.

You no longer need to put a hole in the dust cover to fit a trigger wire for auxiliary driving lights, simply:

• Remove the existing factory eight pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector


• Fit the corresponding new connector to the connector that has just been removed


• Fit the remaining new connector to the original connector affixed to the headlight assembly


• Then connect to your wiring harness trigger wire and or positioning lights via a relay.
