Lightforce - Viper 30" LED Light Bar Kit to suit Ford Ranger PX 2015 - 2021

SKU code: LFLB30S-11

The vehicle specific Viper 30"" LED Light Bar Kit is a full package that includes everything you need for the ultimate Lightforce setup.

Your ride is destined for greatness with the 30” Single Row Light Bar from Lightforce. With more output than ever before, this is a premium experience, even against foggy and dewy conditions for trucks, utes, 4X4s, SUVs and more.

Premium LED

The Viper Light Bars by LightForce utilise premium grade Osram Oslon LED that will ensure your new Light Bar outshines and outperforms most LED Bars.

Slimmer & Lighter

The new range of VIPER Light Bars is up to 25% slimmer and 25% less in weight than previous LightForce Light Bars.

This makes the Viper more affordable than ever keeping the same LightForce quality you know and love.

Smart Harness Included

The included Smart Harness has a built-in bridge rectifier and ensures greater compatibility with most modern vehicles.

LightForces range of vehicle-specific harnesses makes for an even easier install with harnesses to suit almost every vehicle.

Greater Distance

The modern screwless front bezel design will compliment your vehicle's factory look and improves performance for more light output than ever before with up to 25% more distance.

* The kit includes the standard mounting brackets. Most vehicles will require mounting tabs found on Bull Bars, Nudge Bars, and Roof Racks.

Features

  • SMART HARNESS with 8-pin switch connector for easy factory switch fitments.
  • Osram Oslon LEDs for greater performance, contrast, and less driver fatigue
  • Durable AkzoNobel powder coat finish, tested to Australian Standard AS1580, for protection against UV and salt water
  • RF shielding technology reduces radio interference
  • Waterproof to 1 metre with genuine Gore breather
  • Unique SMART HARNESS for safer and easier fitment to many modern vehicle's

Included in the Kit

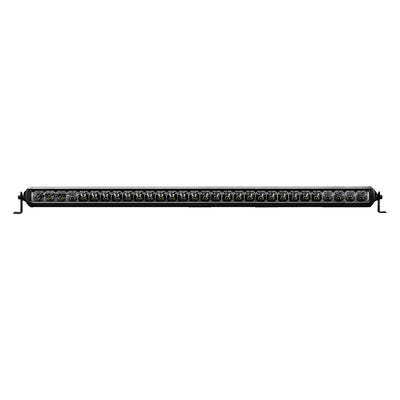

  • 1 x Viper 30 Inch Single Row LED Light Bar
  • Stainless steel side brackets and fixings
  • Rear slide mount brackets and fixings
  • 1 x Full smart wiring harness including
    relay and harness with 8-pin switch connection
  • Torx key

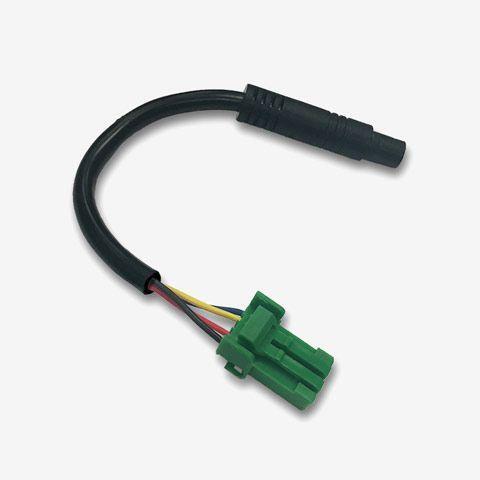

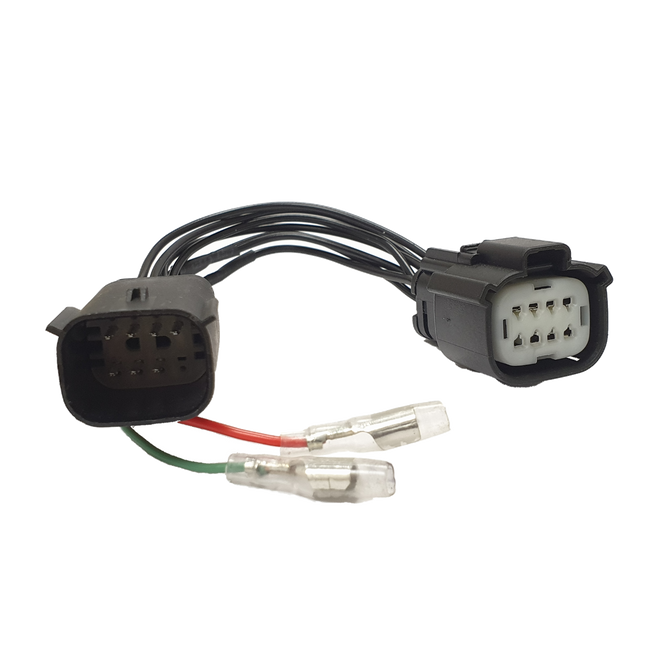

  • 1x Vehicle Specific Patch Harness

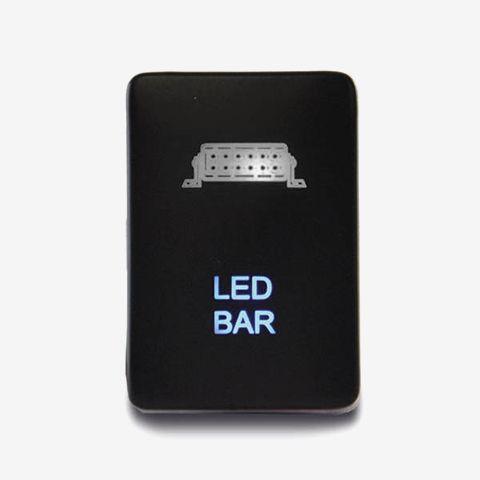

  • 1x Vehicle Specific Switch

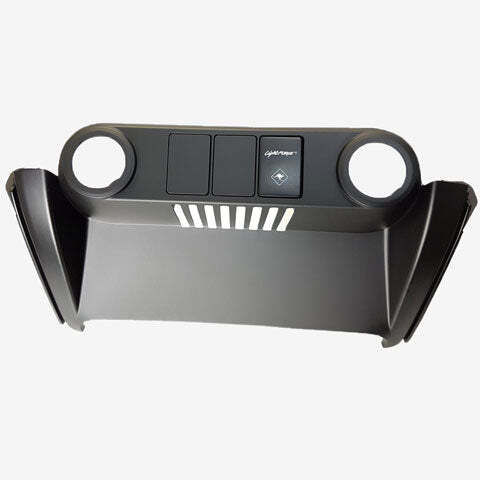

  • 1x Replacement Switch Fascia
  • User instructions

Specifications

  • Distance 1 Lux at 697
  • Effective Lumens 7884
  • Raw Lumens 16718
  • Colour Temperature 5500K
  • Current Draw 10.4 Amps
  • Voltage Range 12V / 24V Compatible
  • Wattage 26x3W / 4x10W
  • Ingress Protection Rating IP68
  • Weight 1733g
  • Warranty 3 Years
SKU LFLB30S-11
Brand Lightforce
