Mister Hitches Ball Mount Raptor 4500Kg Adr Adjustable Short Shank Pajero Sport

SKU code: MHABM45-S4

The Mister Hitches Raptor 4500KG Super Duty Adjustable Ball Mount (MHABM45-S4) is a specially designed towing accessory that caters to vehicles with shallow tow bar receivers, such as the Pajero Sport or Ford Ranger. It's also suitable for scenarios where a shorter shank is required.

Features

  • Impressive Tow Capacity: This ball mount can handle a maximum tow capacity of 4,500kg and a maximum tongue weight of 450kg, making it suitable for heavy-duty towing.
  • ADR62/02 Compliance: Tested and compliant with ADR62/02, ensuring it meets the stringent Australian safety and quality standards.
  • High-Strength Construction: The solid steel shank with dual gussets provides superior strength and durability, ensuring it can withstand demanding towing conditions.
  • Tow Ball Reducing Bush: Included with the ball mount is a tow ball reducing bush and washer, suitable for 50mm or 70mm tow balls (tow balls sold separately).
  • Reversible Design: The reversible shank and ball platform offer great flexibility in achieving the desired drop or rise height, adapting to various towing setups.

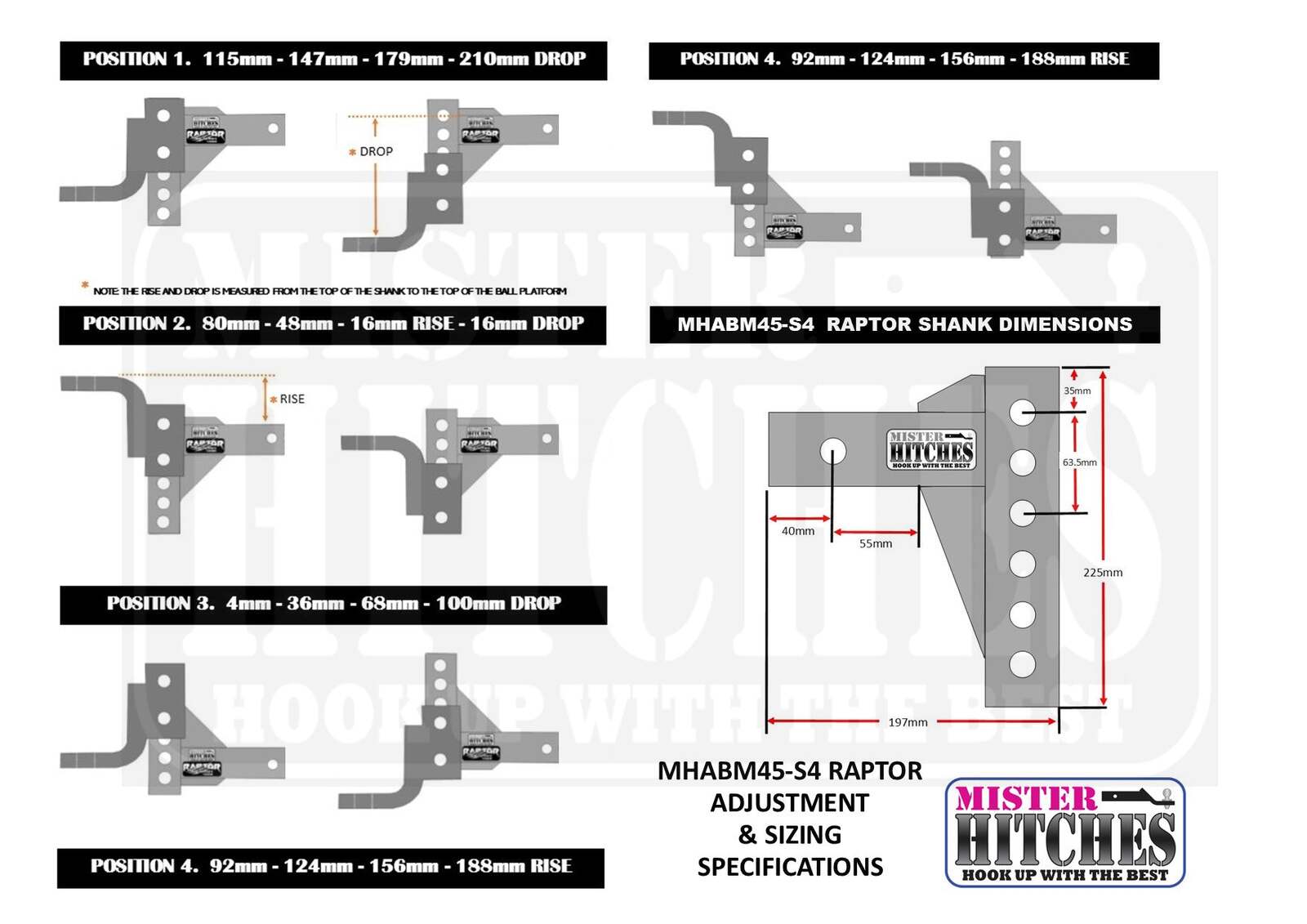

  • 16 Stage Adjustments: With 16 stages of adjustment, it provides a wide range of height settings, offering a maximum rise of 188mm and a maximum drop of 210mm in 32mm increments.
  • Optional Shanks: Optional shanks can further extend the drop to 370mm and the rise to 350mm, catering to specialized towing requirements.
  • Pin Hole Measurements: The distance from the pin hole to the ball hole is 267mm, and from the pin hole to the end of the shank is 40mm.
  • High-Quality Hardware: Equipped with high-tensile 3/4" bolts, nyloc locking nuts, and toothed conical washers, ensuring superior strength and reliability.
  • Durable Finish: The powder-coated enamel finish provides enhanced protection against the elements, ensuring longevity and performance.
  • Versatile Compatibility: Compatible with a range of couplings, including DO35 & DO45, TREG, McHITCH, ALKO, and ARK, making it suitable for various towing setups.
  • Quality Assurance: Designed and manufactured to Mister Hitches' strict quality and specifications, offering a reliable and trustworthy towing solution.
SKU MHABM45-S4
Brand Mr Hitches
