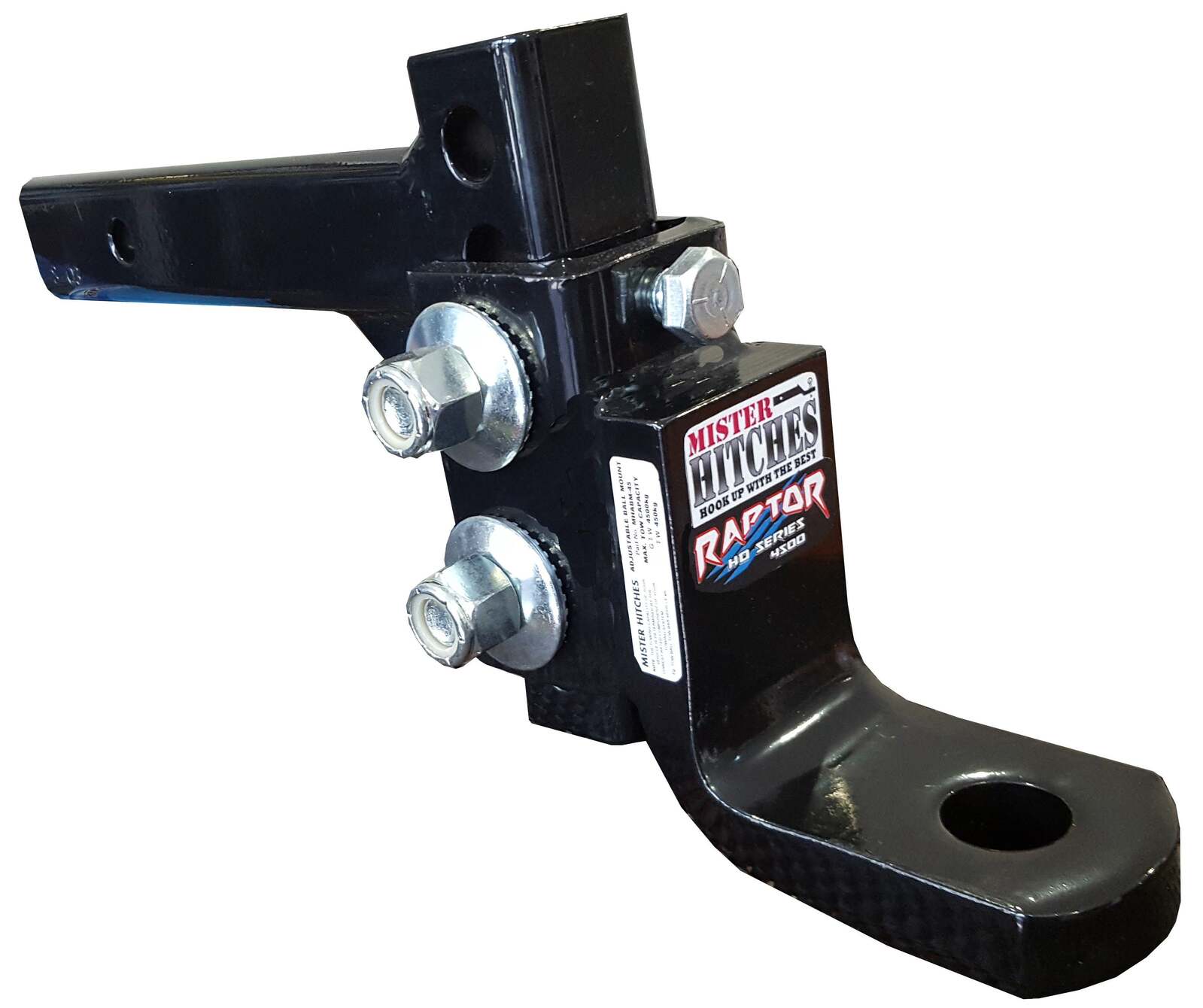

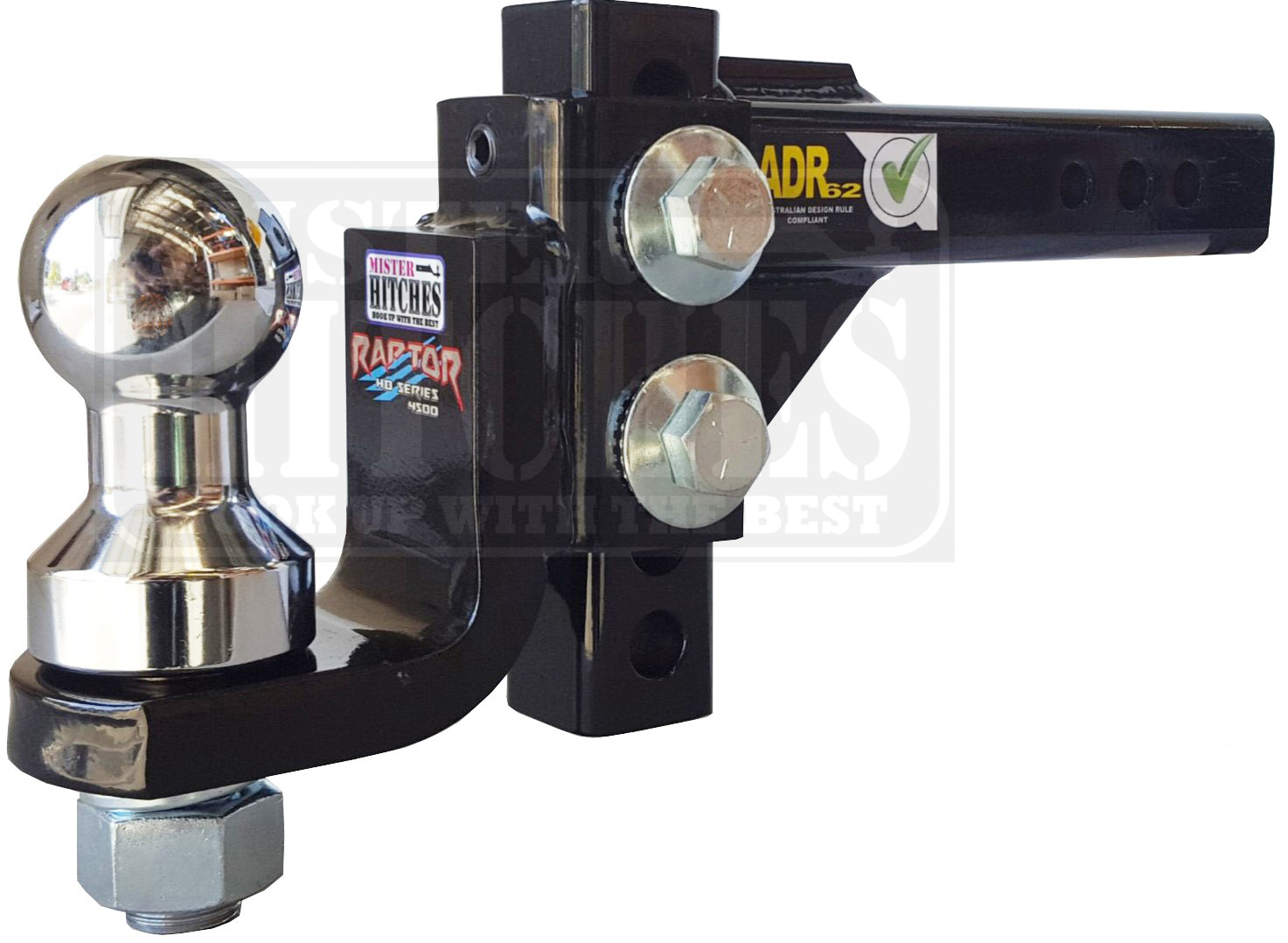

The Mister Hitches Raptor 4500KG Super Duty Adjustable Ball Mount (MHABM45-1), your ultimate towing solution with outstanding capabilities and features.
Features
- Impressive Tow Capacity: With a maximum tow capacity of 4,500kg and a maximum tongue weight of 450kg, this ball mount is designed to handle heavy towing loads.
- ADR62/02 Compliance: Tested and compliant with ADR62/02, ensuring it meets Australian safety and quality standards.
- High-Strength Construction: The solid steel shank with dual gussets provides superior strength and durability, ensuring it can withstand demanding towing applications.
- Ball Compatibility: Designed to accommodate 50mm or 70mm tow balls, allowing you to choose the appropriate ball for your specific towing needs (tow balls sold separately).
- Reversible Design: The reversible shank and ball platform offer greater flexibility in achieving the desired drop or rise height, adapting to various towing setups.

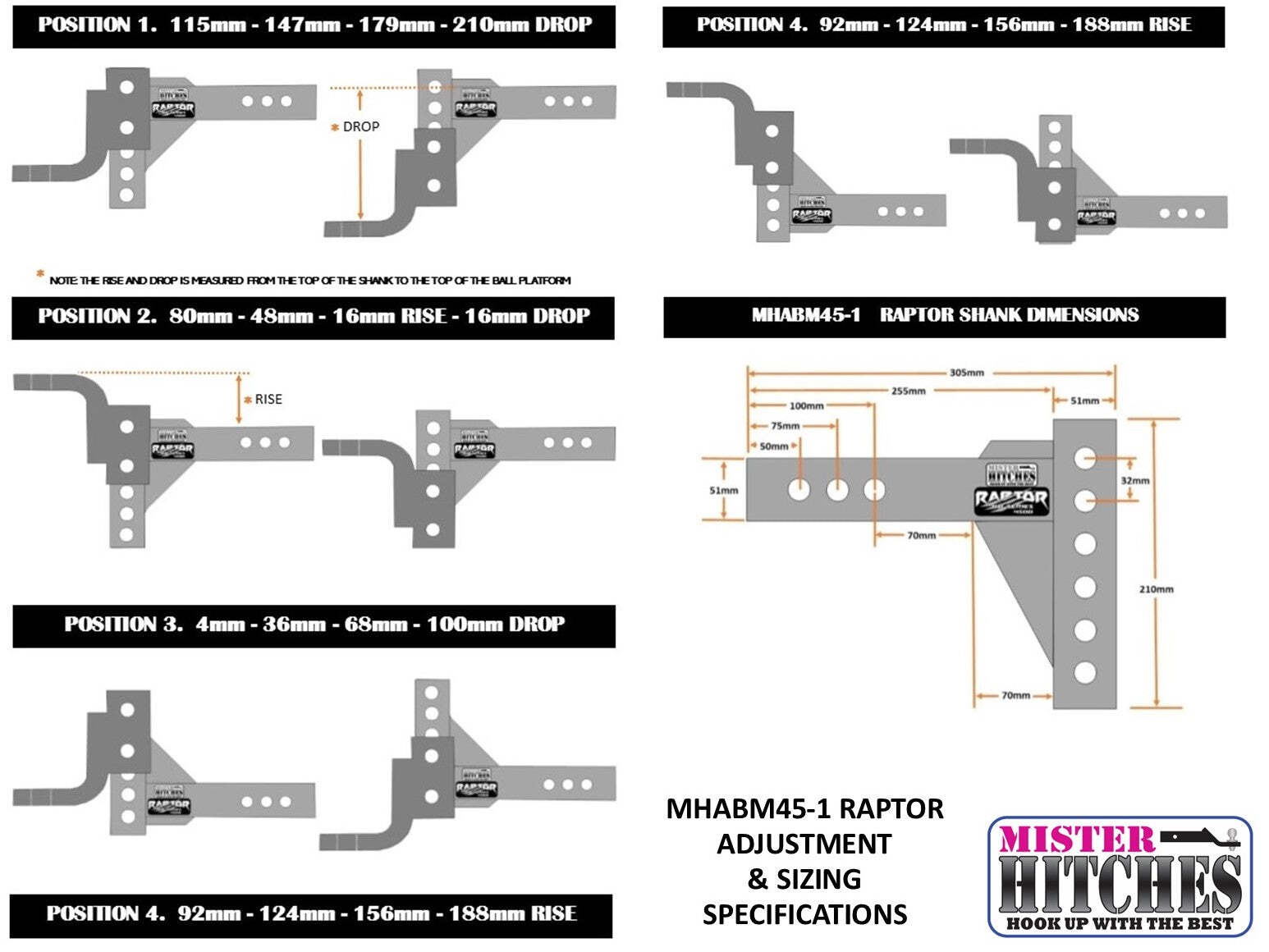

- 16 Stage Adjustments: This ball mount provides a wide range of height adjustments with 16 stages, offering a maximum rise of 188mm and a maximum drop of 210mm in 32mm increments.
- Optional Shanks: Optional shanks can further extend the drop to 370mm and the rise to 350mm, catering to specialized towing requirements.
- Multi-Pin Holes: Multiple pin holes allow for three different length adjustments, spanning 315mm, 340mm, and 365mm.
- High-Quality Hardware: Equipped with high-tensile 3/4" bolts, nyloc locking nuts, and toothed conical washers, ensuring superior strength and reliability.
- Durable Finish: The powder-coated enamel finish provides enhanced protection from the elements, guaranteeing long-lasting performance.
- Versatile Compatibility: Compatible with a range of couplings, including Hitchmaster DO35 & DO45, TREG, McHITCH, ALKO, OZ HITCH 4.5T, and ARK, making it suitable for various towing setups. It's also suitable for the Ford Ranger short shank tow bar.
- Quality Assurance: Manufactured to Mister Hitches' strict quality and specifications, offering a reliable and trustworthy towing solution.
| SKU | MHABM45-1 |
|---|---|
| Brand | Mr Hitches |
