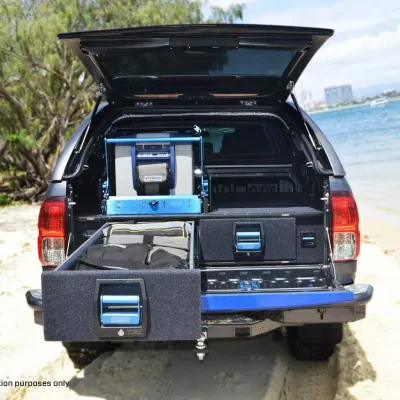

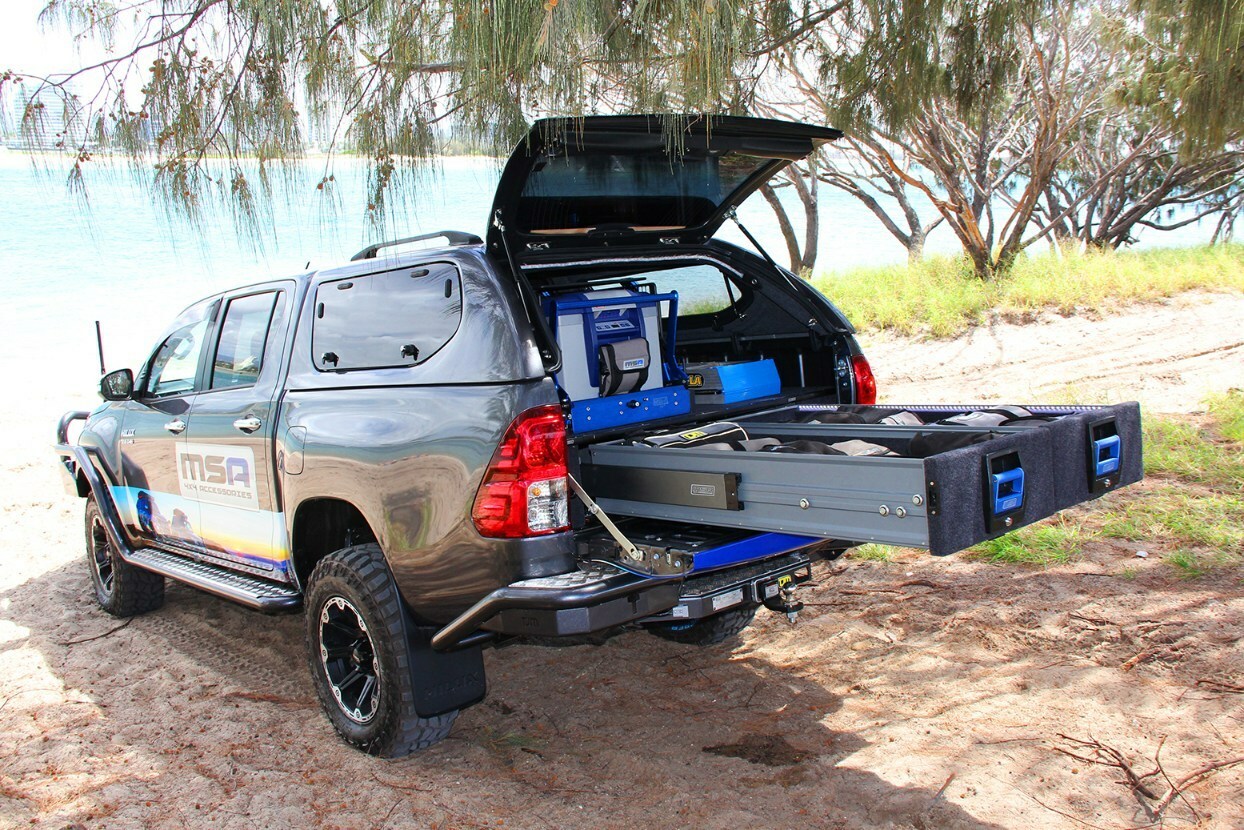

MSA 4x4 Complete Dual Drawer Kit to suit Toyota Hilux 2015 - Onwards

MSA 4x4 Accessories is a trusted name in Australian 4WD storage solutions. Their latest aluminium vehicle drawer systems has revolutionised the 4x4 industry, offering superior features, strength and flexibility.

Years of design, development and manufacturing knowledge has gone into every MSA 4x4 product to ensure that our products are the very best they can be!

Redefining 4WD Storage Drawer Systems

Designed from the ground up to establish the way a quality 4WD storage system should be.

Crash Tested and ADR Compliant

The Explorer Aluminium Storage Drawer System has passed all the requirements prescribed by the ADRs and AS/NZS, without any structural weaknesses or degradation of the system to the extent that it would affect the safety of the vehicle occupants or other road users.

Lifetime Guarantee

The MSA 4x4 Aluminium Storage Drawer System comes with a lifetime guarantee for customer peace of mind.

100% Drawer Extension

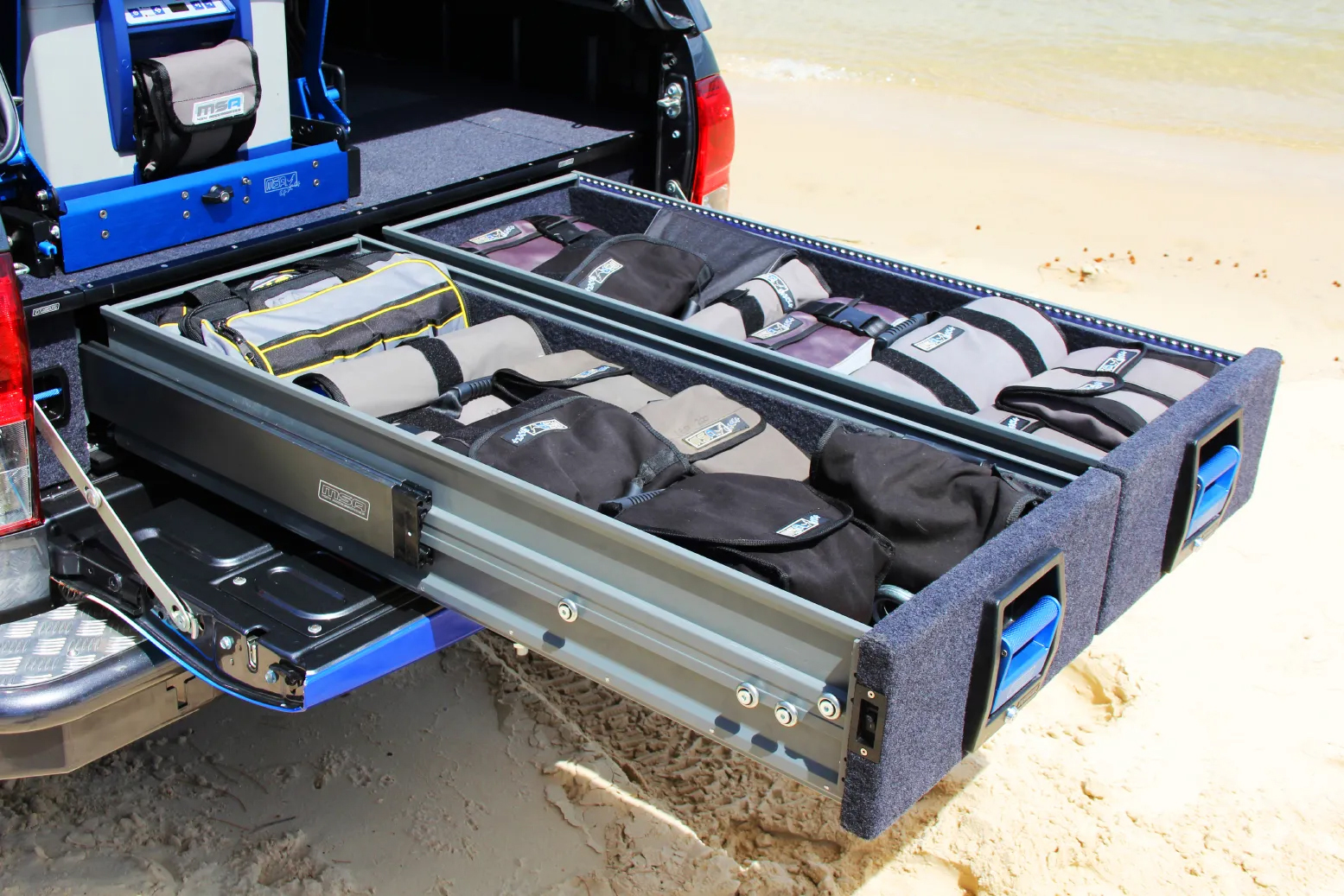

The unique patented ""pro-glide"" slide runner system and sealed bearings allow for 100% drawer extension and access. The entire drawer comes out further than the frame! No hard to reach items in our drawers and no upnpacking of contents to reach items at the back.

Features

• 100% Aluminium Construction with anodised aluminium components. Super strong, lightweight and lifetime corrosion resistance.
• Heavy Duty Crash Tested 250kg load rating per pair of drawers.
• Up to 25% more internal drawer space with equivalent external frame dimensions.
• Patented ""Stay-Open block"" allows the drawer to remain in an open position, even on a 30 degree angle.

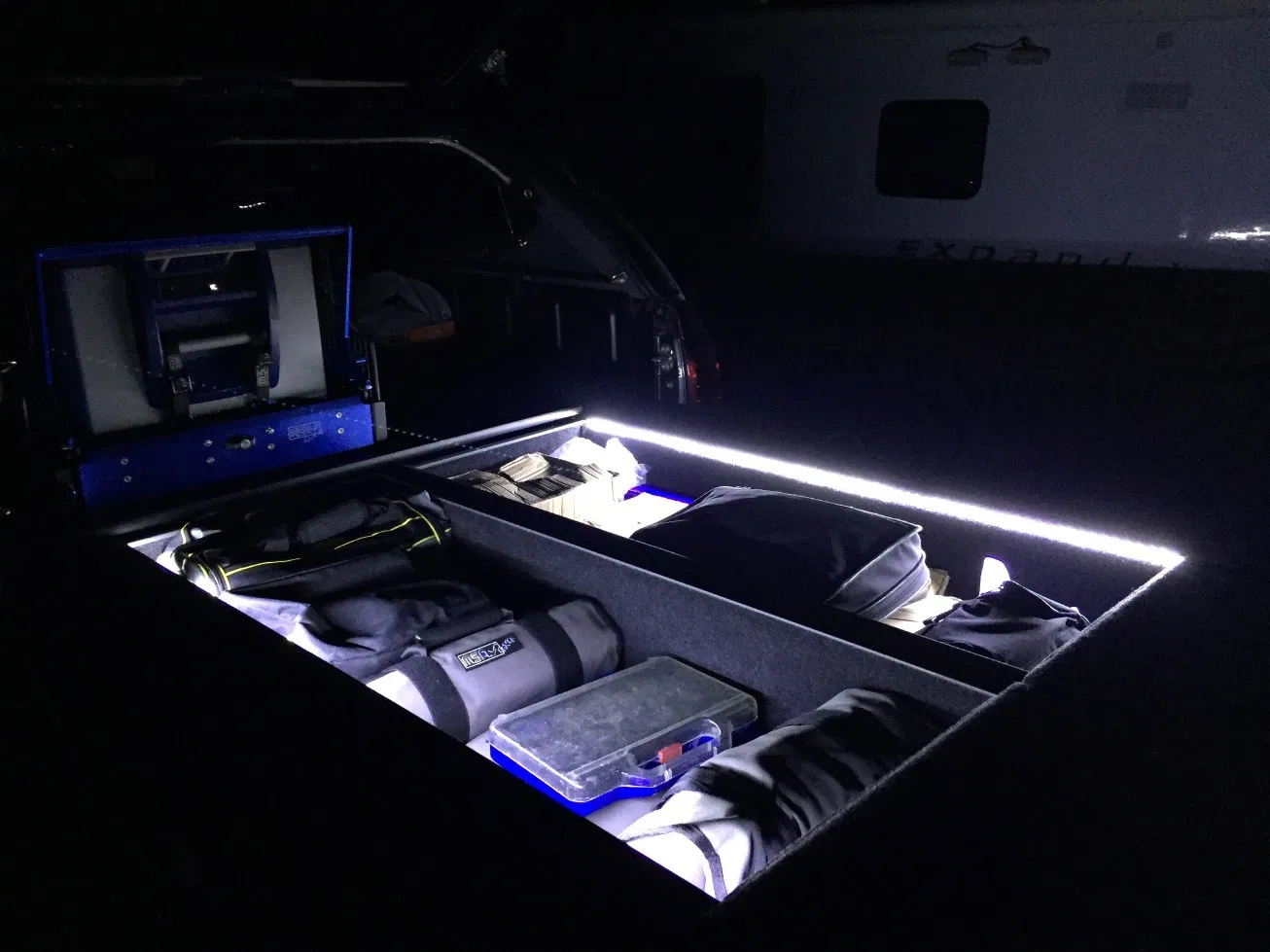

• Patented internal LED strip light delivering increased practicality, complete with manual override switch.
• Lighter than most generic steel drawer systems.
• Flush fitting removable wing kits will be available for most 4WDs and work utes, allowing access to storage areas beside the drawers.
• Access under the drawer wings now with removable wing face panels.
• Supporting wing kit brackets allow for drop slides and fridge slides to be installed onto the wings - maximising space in the vehicle.
• Wing kits designed to clip in or bolt in to allow complete access to valuable storage space around the drawer modules.
• Patented 'Pro-Glide' system utilises the side of the drawers and the frames as the slide unit. The over extenson using custom sealed bearings removes the need for additional slide components, maximising storage space.
• 100% safe and secure lock system cannot be levered open from underneath.
• Dust resistant designed seal around front panels resists ingress.
• Stainless steel fasteners used throughout where possible for a rust free and problem free life.
• Floor extensions included as standard with relevant wing kits.
• Crash tested cargo barrier mount points and child restraint points incorporated into the rear of the drawer frame as standard.
• Reinforced & injection mounded components and wing brackets ensuring a quality product that is super strong and will never rust!
• Integrated electrical circuit contacts for switched LED light removes the need for any moving wires.
• Easy to keep clean. 12mm waterproof marine plywood, covered with a fine UV stabilised polyester marine carpet for a professional finish.

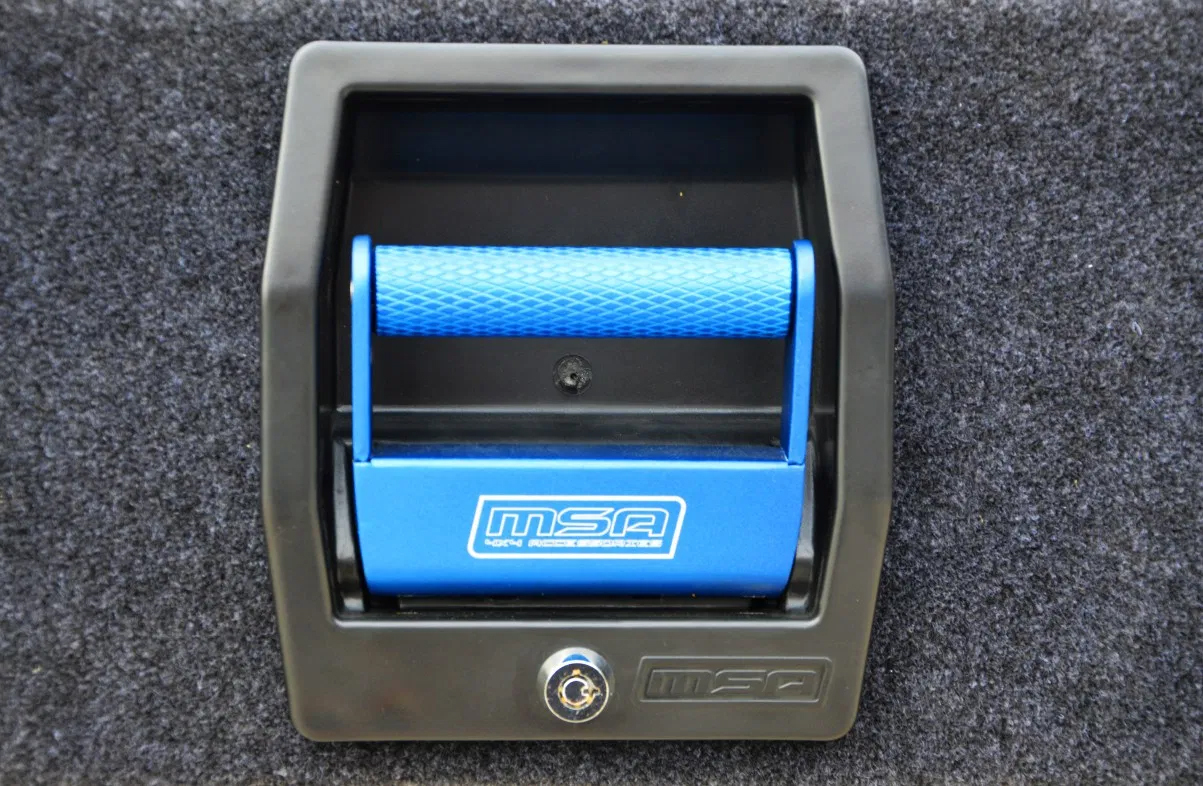

• Injection moulded design registered lock system with purpose built injection moulded frame & components. Anodised knurled aluminium handle for comfort & practicality.
• Flush finish internal drawer sides provide greater storage practicality without any internal folds.
• Available in any variety of different lengths & sizes to suit most wagons, utes, and vans. MSA 4x4 try to maximise drawer capacity in each vehicle where possible for maximum storage.

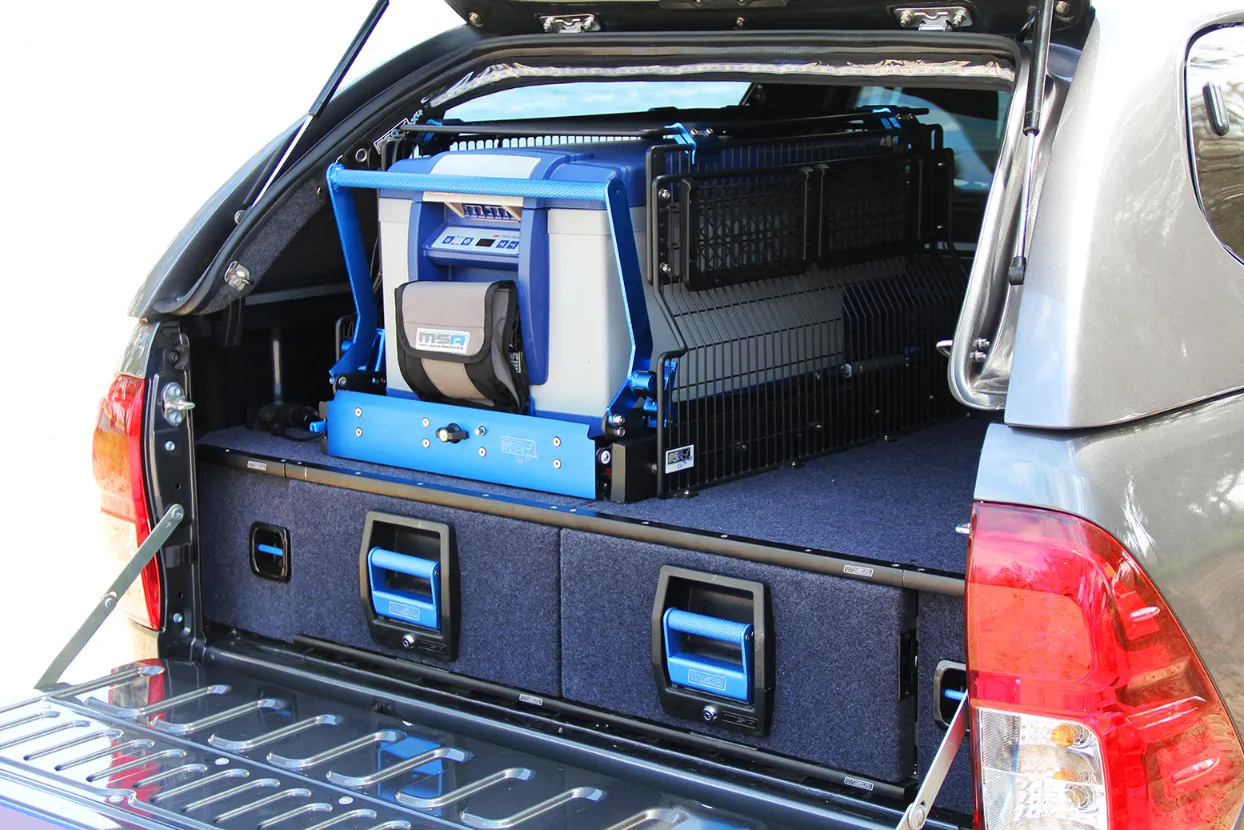

• Fully compatible with the full range of MSA 4x4 drop slides and fridge barriers. The modular systems means units can also be coupled together side by side or on top of one another.
• Optional accessories available to suit your drawer system
