Rhino-Rack JA6238 Heavy Duty RLT600 Trackmount Silver 2 Bar Roof Rack for TOYOTA Hilux Gen 7 Dual Cab 4DR Ute (04/2005-09/2015)

SKU code: JA6238-1

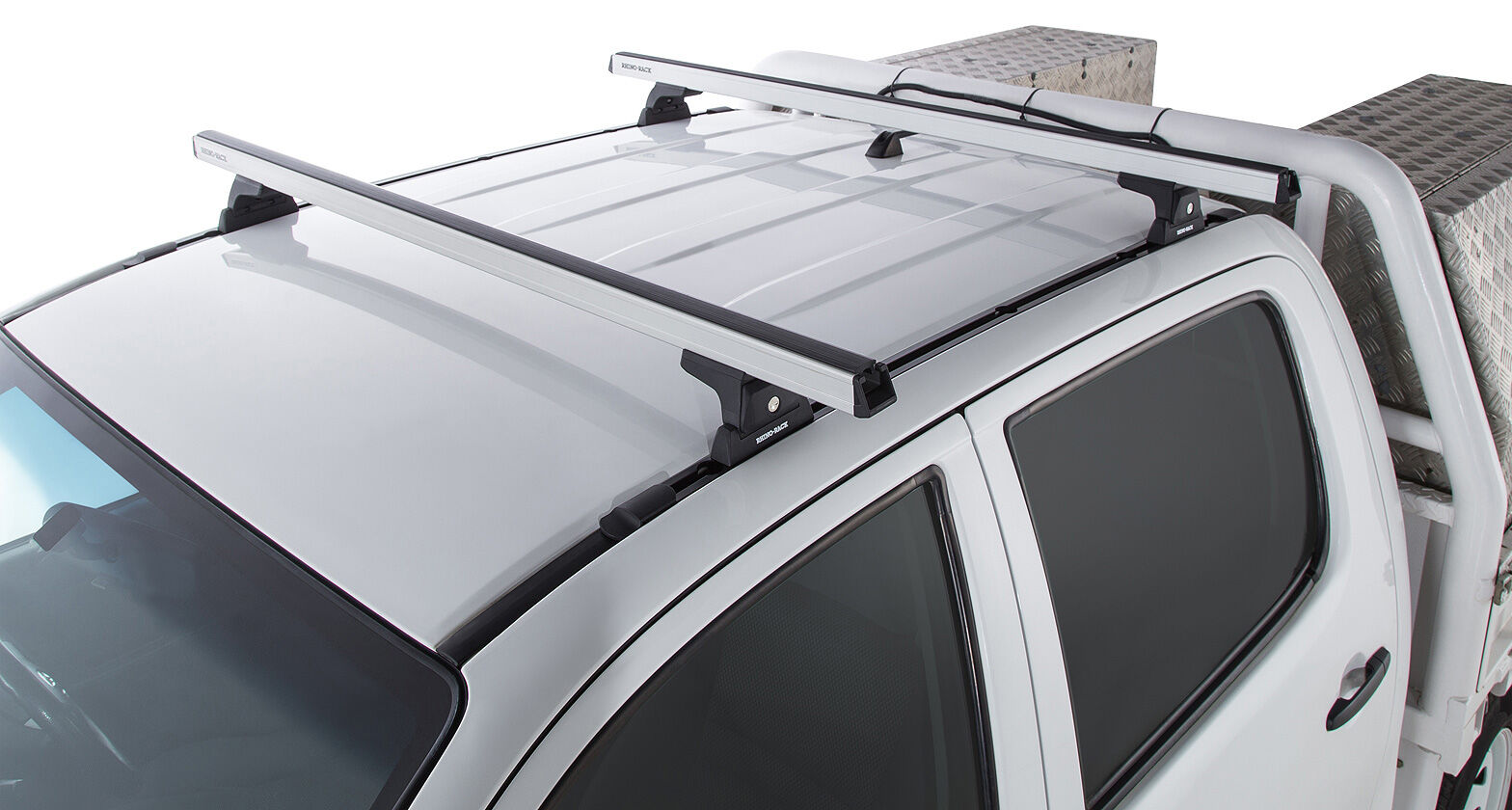

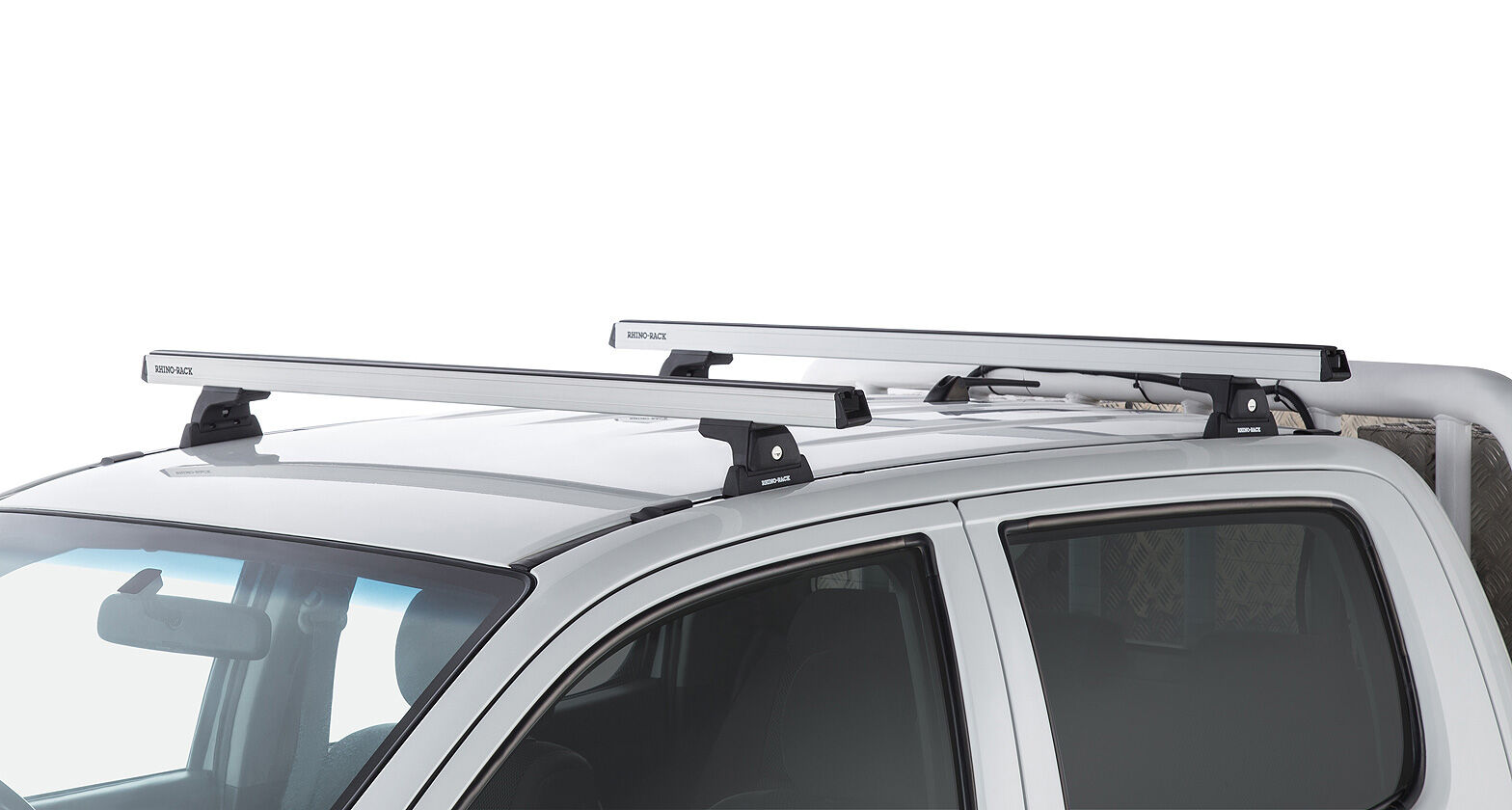

This roof rack solution is specifically designed to suit a TOYOTA Hilux Gen 7 Dual Cab 4DR Ute (04/2005-09/2015).
This kit includes all fitting components required for installation.

Rhino-Rack's JA6238 is comprised of:

  • RLT600 - Quantity: 1
  • QMHD05 - Quantity: 2
  • RTS03 - Quantity: 1
  • RB1375S - Quantity: 2
  • QMW05 - Quantity: 1

The Heavy Duty Quick Mount™ RLT600 roof rack system is fixed to your roof using a specialised track. However the legs and bars can be easily removed when not required using a simple trigger locking system.

Quick Mount RLT600 Legs

The Quick Mount RLT600 Leg is designed for easy attachment to a variety of surfaces, RLT600 is our go-to for mounting to Tracks, Canopies, Roll-Shutters and Fixed Points

  • Easy, tool-free installation and removal after initial setup.
  • Quick-Release leg with lockable cover plate. Can be removed in minutes
  • Regarded as a true "all-rounder" by our team
RLT600 Leg

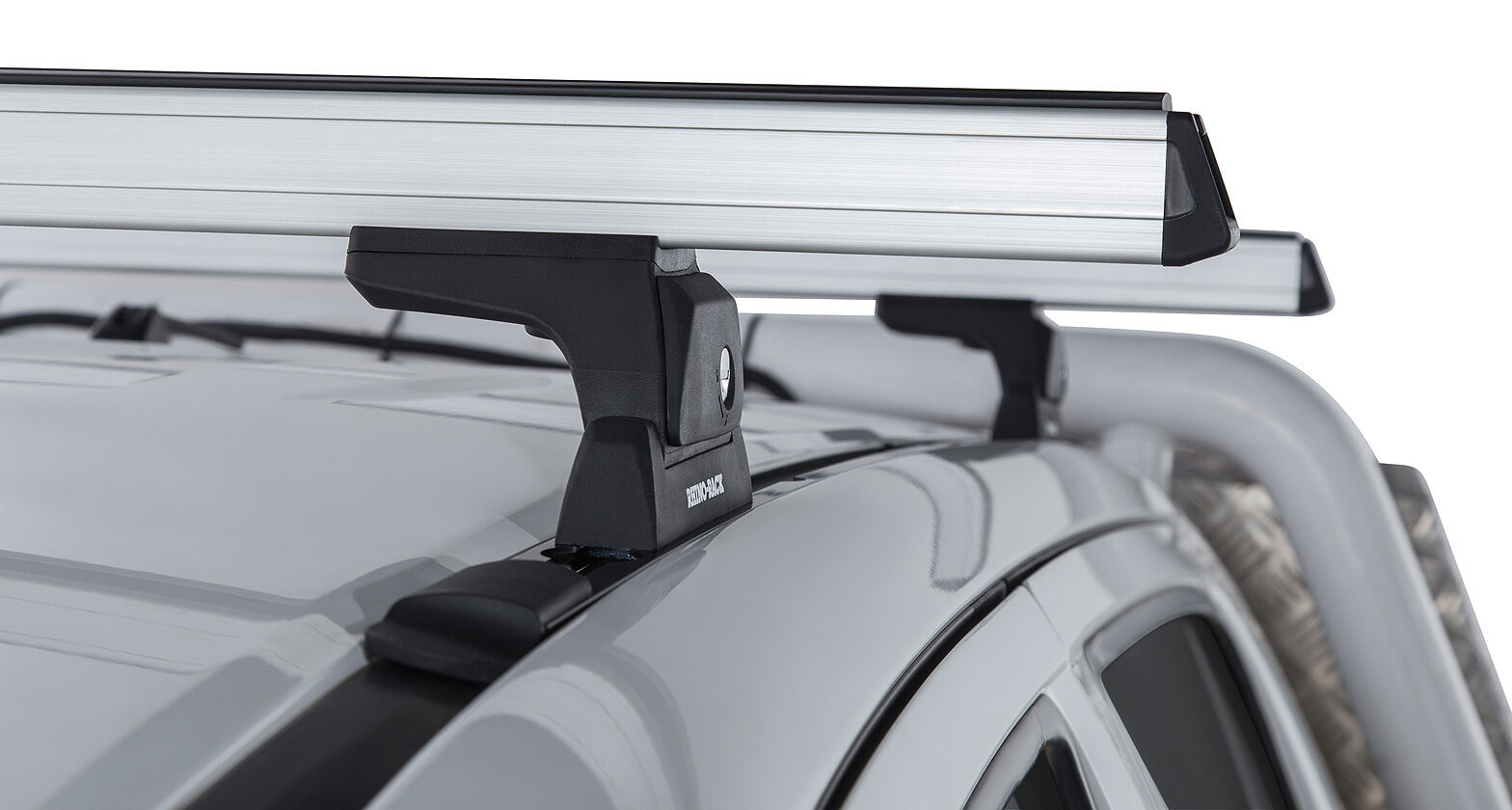

Heavy Duty HD Bar (Silver)

Rhino-Rack Heavy Duty Bars are designed for maximum versatility and durability, making them ideal for trade applications. Combining a Flat profile with dual Uni-Strut compatible channels, these bars are purpose built to work hard..

  • Durable construction suitable for commercial and off-road use.
  • Large range of commercial carrying solutions available.
  • Designed to carry Ladders, Conduit, Building Materials etc.
Heavy Duty Bar Black Image

Utilising their highly regarded Heavy Duty bars, this system offers you strength and compatibility with a wide selection of Rhino-Rack accessories.

Key Features:

  • No tools required for installation and removal once system has been initially fitted
  • Ideal for low clearance
  • A lockable cover plate that protects the locking mechanism, Masterkey compatible
  • Fits the Rhino-Rack Pioneer Range with a fitting
  • The base and leg allows for 33 degrees of swivel to suit tracks mounted on a contoured or curved surface
  • The great benefit of this roof rack system is the ability to slide your cross bars along the track to accommodate various sized loads
  • Single person operation allows quick and easy attachment
  • Simple trigger locking system
  • Having a trackmount system allows for a heavier load rating
  • Tested to AS1235:2000 (Australian), ISO11154:2006 (City Crash/International) standards
  • Lifetime Warranty
Mounting Type Retro Track Mount
Colour Silver
Bar Style Overhang Bar
Bar Colour Silver
Number Of Bars 2
Bar Length 1375mm
Type Heavy Duty Cross Bars
Kit Components RB1375Sx2 QMHD05x2 RLT600x1 RTS03x1 QMW05x1
Bar Type Heavy Duty
Fixture Fixed
Track Type RTS5
Num Of Bars 2
SKU JA6238-1
Model # JA6238
Brand Rhino-Rack
