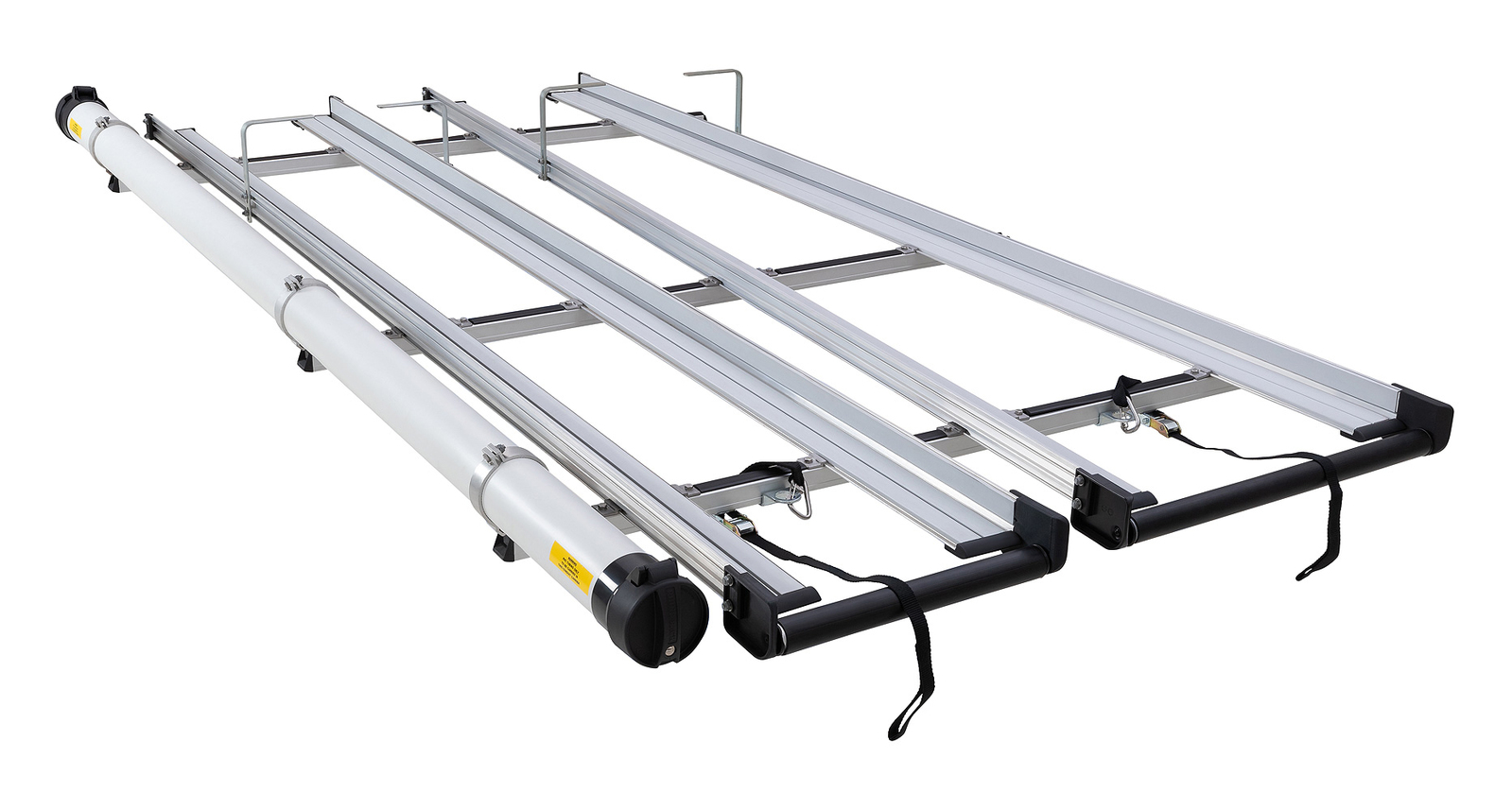

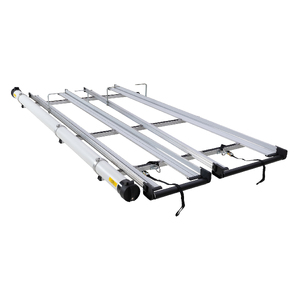

Rhino-Rack JC-01039 CSL Double 3.0m Ladder Rack System & Conduit for TOYOTA Hiace Gen 5 LWB 2DR Van (03/2005-05/2019)

SKU code: JC-01039-1

This roof rack solution is specifically designed to suit a TOYOTA Hiace Gen 5 LWB 2DR Van (03/2005-05/2019).
This kit includes all fitting components required for installation.

Rhino-Rack's JC-01039 is comprised of:

  • LR470 - Quantity: 1
  • LR680 - Quantity: 1
  • BC3 - Quantity: 1
  • RL150S10 - Quantity: 3
  • CSL30M - Quantity: 2
  • RB1500S - Quantity: 3
  • P30-100 - Quantity: 1

The CSL Double Ladder Rack System allows you to carry a step ladder as well as an extension ladder on your vehicle's roof safely and securely. It features rollers enabling you to slide on and off your ladders effortlessly especially if the vehicle has a high roof. The CSL ladder racks are their original, tried and tested ladder rack systems that have proven to be ever so reliable. This system also includes a conduit carrier with lockable end caps.

RL Gutter Mount Legs

Rhino-Rack's RL Gutter Mount Legs are specifically designed for vehicles with external rain-gutters. Offering one of the strongest mounting options, the RL leg is well suited to harsh conditions.

  • Rhino-Rack's Gutter Mounts retain their load rating off-raod.
  • Amongst the easiest legs to fit, you'll be on the road in no time
  • Highly adaptable design allows you to customise your system.
RL Gutter Mount Legs

Heavy Duty HD Bar (Silver)

Rhino-Rack Heavy Duty Bars are designed for maximum versatility and durability, making them ideal for trade applications. Combining a Flat profile with dual Uni-Strut compatible channels, these bars are purpose built to work hard..

  • Durable construction suitable for commercial and off-road use.
  • Large range of commercial carrying solutions available.
  • Designed to carry Ladders, Conduit, Building Materials etc.
Heavy Duty Bar Black Image

The ladder racks are mounted on the Rhino-Rack Heavy Duty crossbar system so you can rest assure that your ladders will be transported safely with you wherever your next job is. Built from anti-corrosive materials, the ladder rack system can withstand all weather conditions.

Ladder Rack 1

  • Roller width is 680mm / 27 inches wide
  • Suitable for 3m / 9.8ft step ladders

Ladder Rack 2

  • Roller width is 470mm / 18.5 inches wide
  • Suitable for 3m / 9.8ft extension ladders

Ladder hoops and ladder straps are also provided to ensure that the ladders are stable and well fastened when in transport.
It is recommended that the maximum carrying capacity per ladder rack is 42kg / 93lb and 15kg / 33lb for the conduit carrier.

Bar Colour Silver
Length 3.0m
Num Of Bars 3
Ladder Rack CSL Series
Including Conduit With Conduit
SKU JC-01039-1
Model # JC-01039
Brand Rhino-Rack
