Ute Canopy or Trailer with OEM Track Slimline II Rack Kit / 1165mm(W) X 1358mm(L) by Front Runner - KRCA005TN

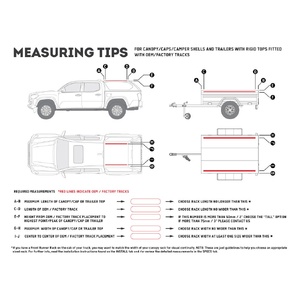

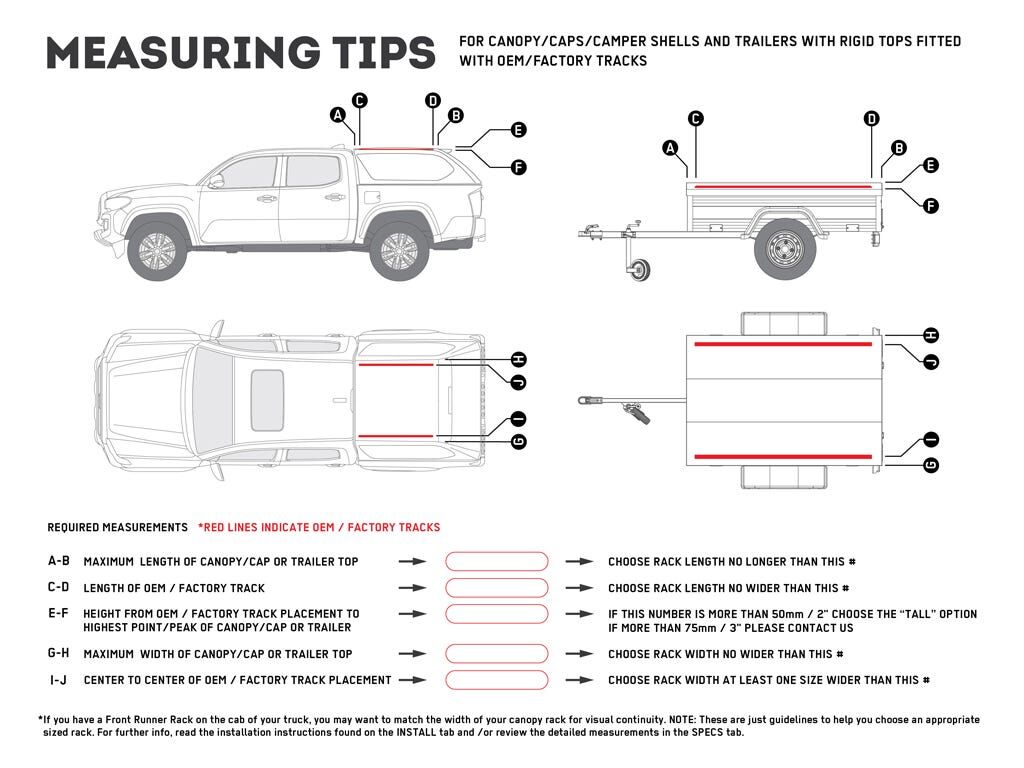

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1165mm/45.9'' (W) x 1358mm/53.5'' (L).

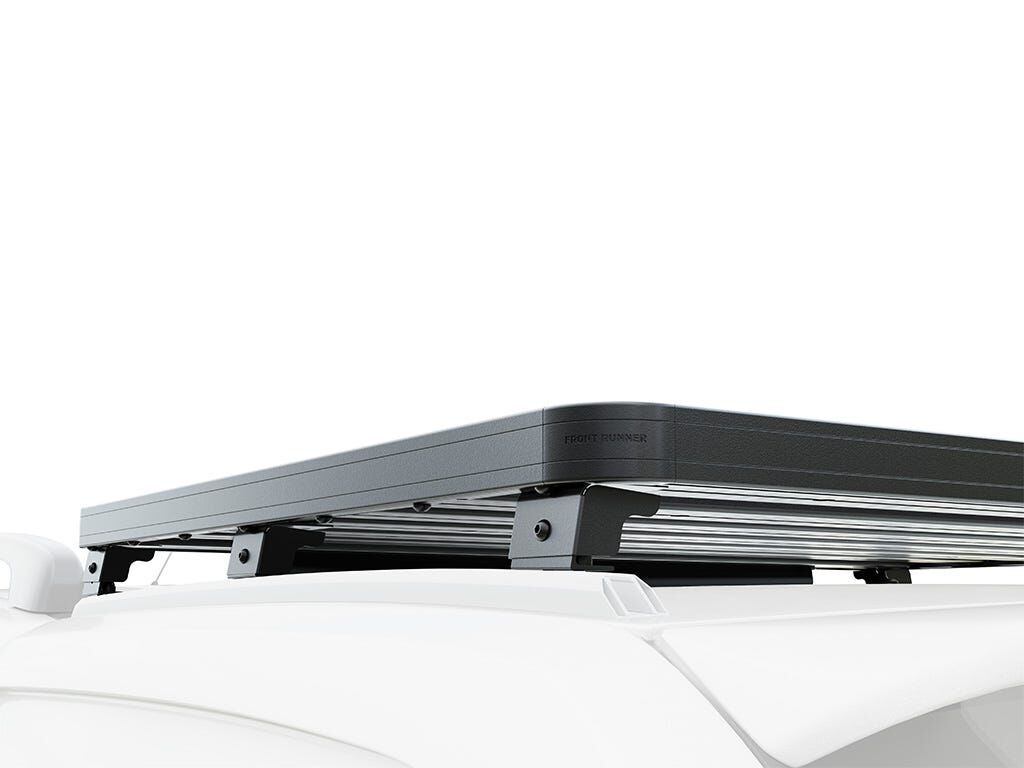

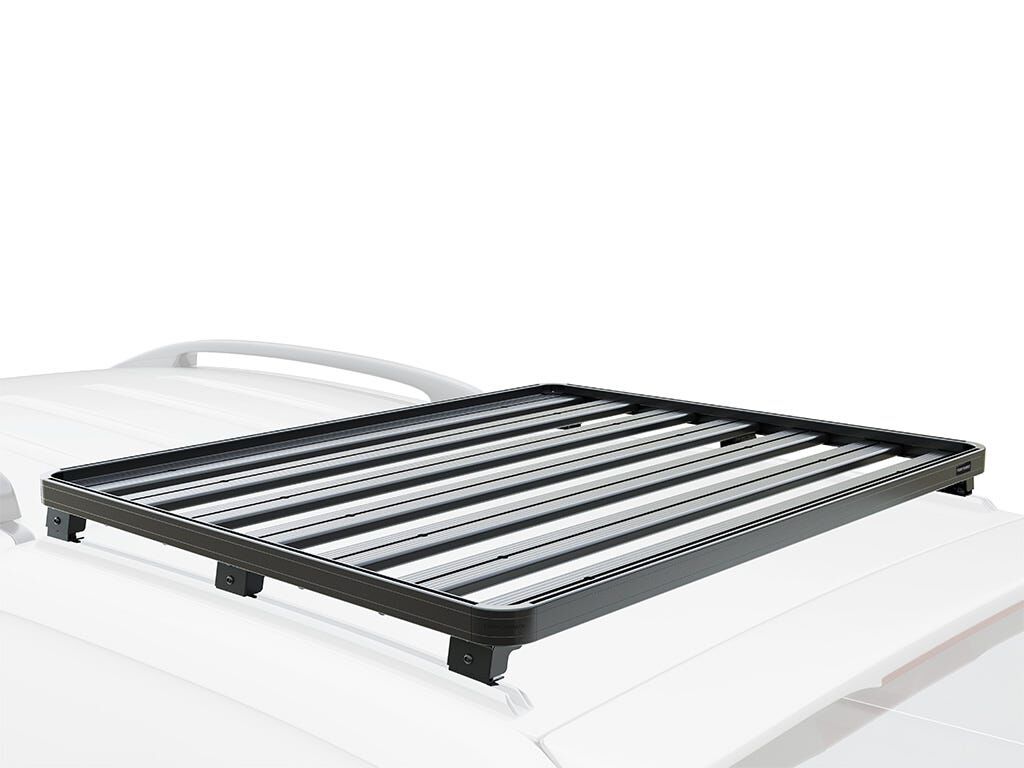

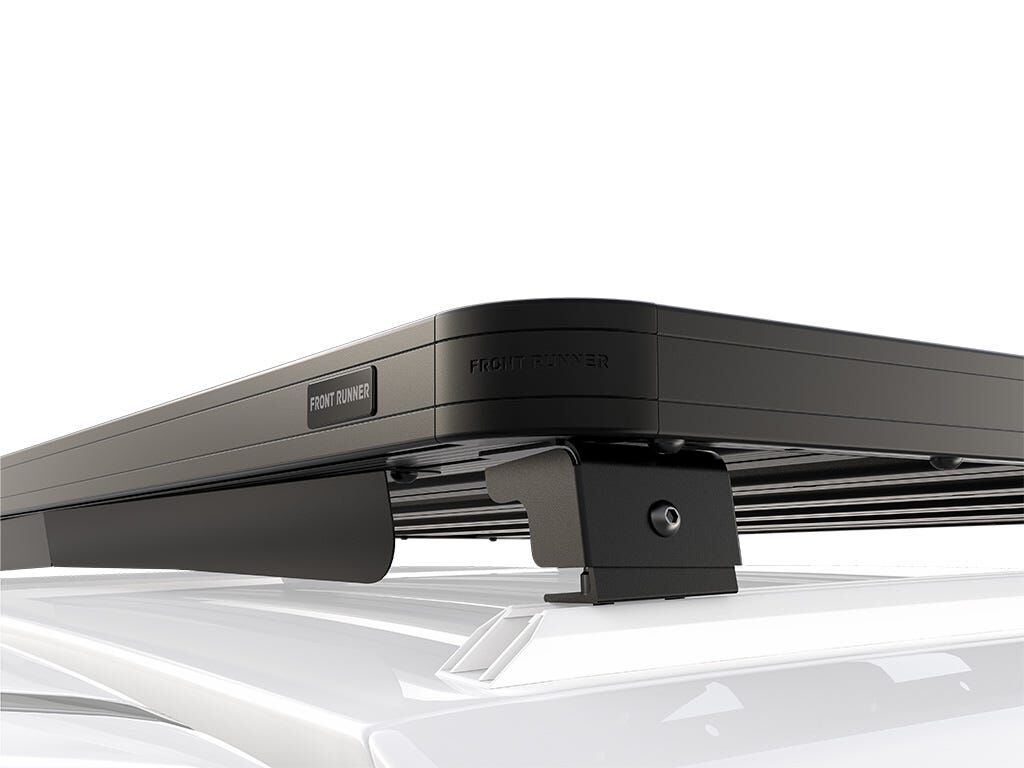

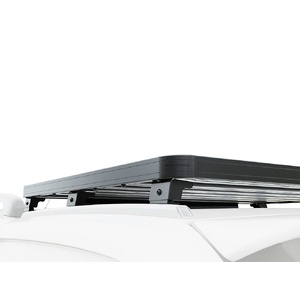

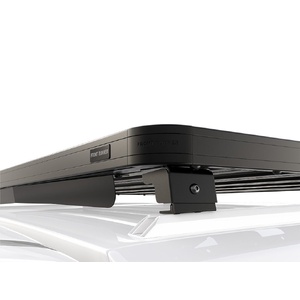

The Slimline II Tray and six (6) supplied Feet mount onto the OEM/Factory installed track of your canopy/shell or trailer.

NOTE: Additional fasteners may be required to fit OEM/Factory supplied tracks.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

In order for Front Runner Feet and supplied hardware to work with your OEM/Factory supplied canopy track, the track must have:

• Slot base width min 20mm / max 25mm
• Slot base height min 6.5mm / max 10mm
• Slot opening width min 8.5mm / max 10.5mm
• Slot opening height min 2mm / max 5mm

Please check with the canopy manufacturer regarding the load ratings for your specific canopy and track.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Product Information:

• Product Code: KRCA005TN
• Description: Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / 1165mm(W) X 1358mm(L)
• Manufacturer: Front Runner

Kit Contents:

• 3x FASS012 - Foot Set / 40mm-50mm
• 1x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L)

Materials Used:

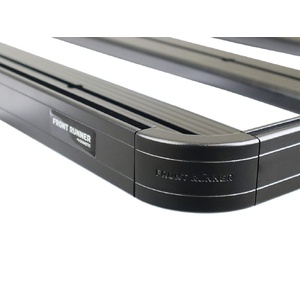

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 20kg (44lbs)

Additional Information:

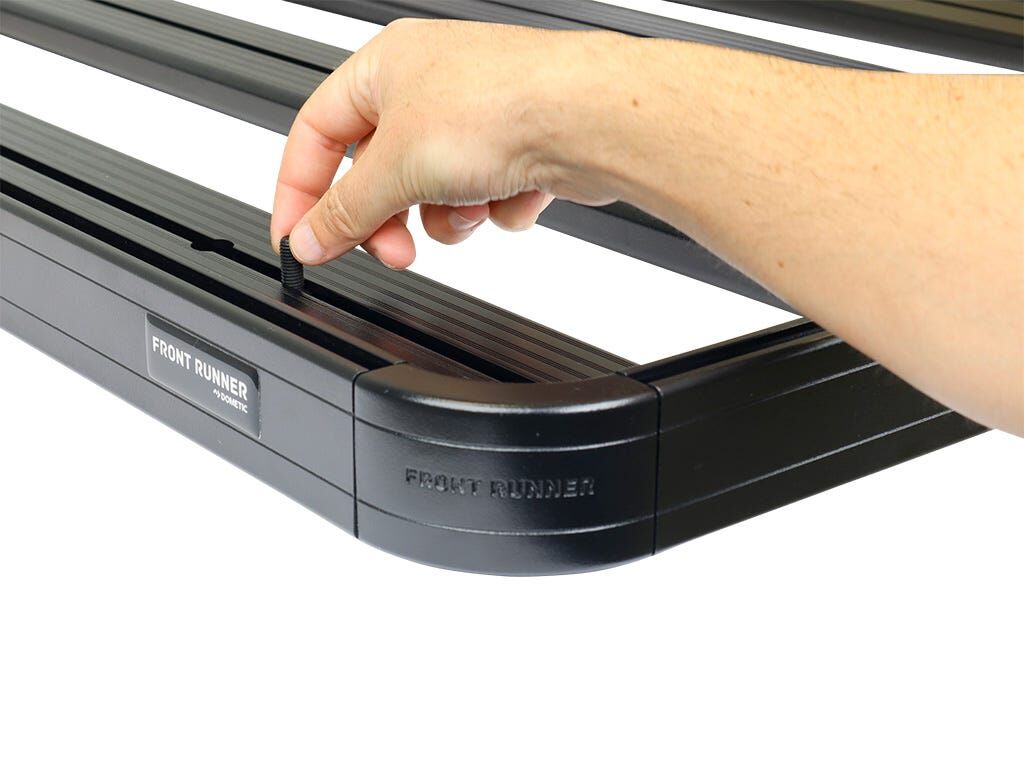

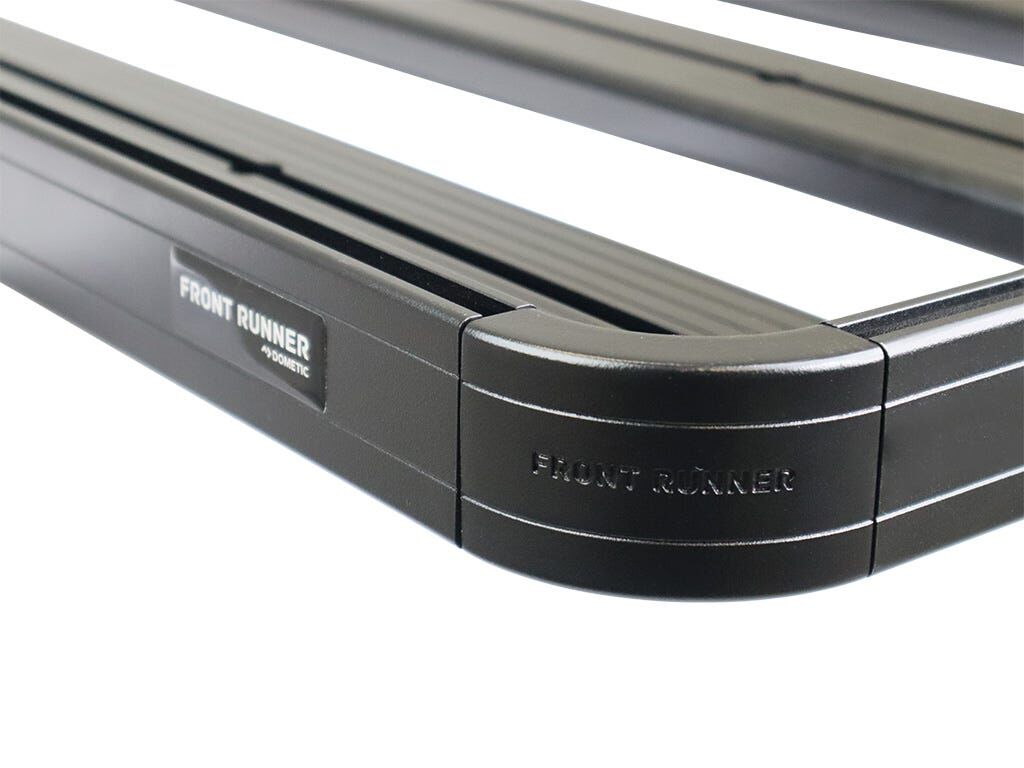

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack:
  • If using Foot or Grab-on Foot, add 50mm (2'') for the height of the Slimline II Tray.
  • If using Legs, add 50mm (2'') for the height of the Slimline II Tray to the height of the Legs.
  • If using Foot Rails, add 50mm (2'') for the height of the Slimline II Tray to the height of the Foot Rails.

Shipping Dimensions:

• Width: 450mm (18'')
• Length: 1615mm (64'')
• Height: 140mm (6'')

Shipping Weight: 23.1kg (50.9lbs)
